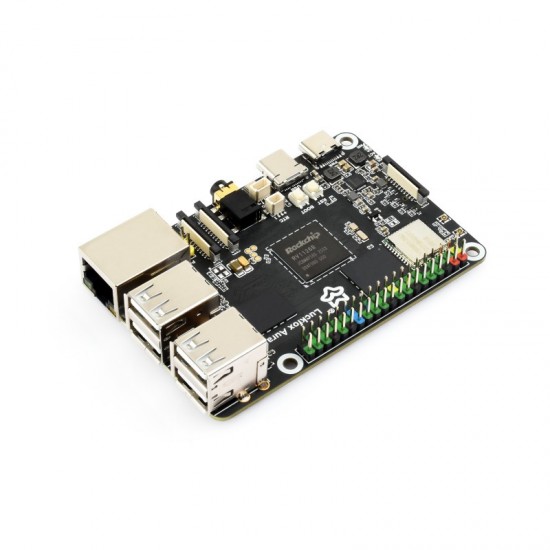

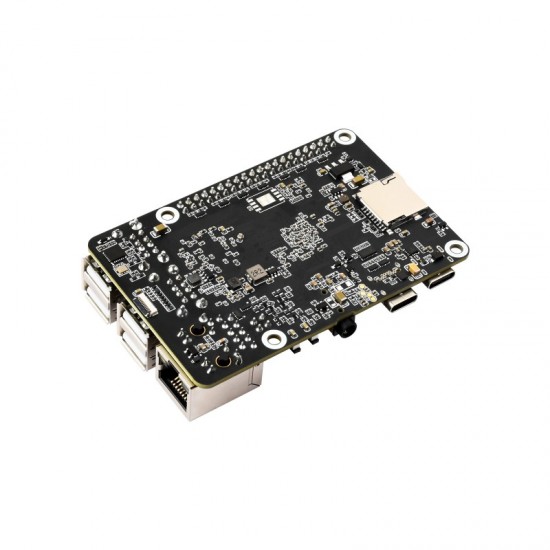

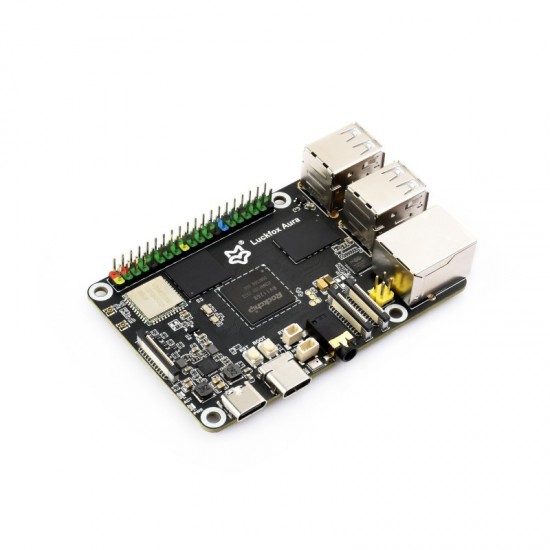

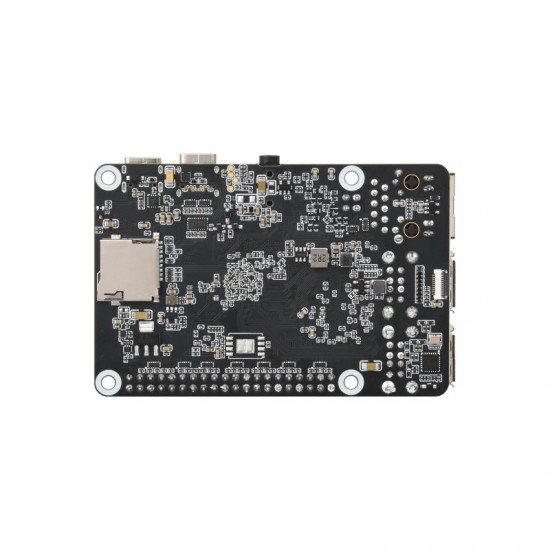

Luckfox Aura 1GB Ram + 8GB eMMC High-Performance Linux Development Board, Rockchip RV1126B Quad-Core 1.6GHz Processor, 3 TOPS Computing Power, 4K Encoding And Decoding, Dual Band Wi-Fi 6 & BLE 5.4

Luckfox Aura 1GB Ram + 8GB eMMC High-Performance Linux Development Board, Rockchip RV1126B Quad-Core 1.6GHz Processor, 3 TOPS Computing Power, 4K Encoding And Decoding, Dual Band Wi-Fi 6 & BLE 5.4, Luckfox-Aura-04064

The Luckfox Aura 1GB RAM + 8GB eMMC High-Performance Linux Development Board is a compact and powerful AIoT development platform designed for edge computing, smart vision, and embedded AI applications. Powered by the Rockchip RV1126B quad-core Cortex-A7 processor running at up to 1.6GHz, this board delivers efficient performance with integrated 3 TOPS NPU acceleration for AI inference tasks such as object detection, facial recognition, and intelligent monitoring.

Equipped with 1GB RAM and 8GB onboard eMMC storage, the board ensures smooth multitasking and reliable data storage for Linux-based applications. It supports 4K video encoding and decoding, making it ideal for multimedia, surveillance, and industrial automation projects. Integrated dual-band Wi-Fi 6 and Bluetooth BLE 5.4 provide fast wireless connectivity with improved range and stability.

Its compact form factor, low power consumption, and rich peripheral support make the Luckfox Aura suitable for AI cameras, robotics, smart home devices, IoT gateways, and edge AI deployments. Designed for developers, makers, and embedded engineers, it offers a reliable platform for building next-generation intelligent applications.

User Manual / Datasheet / Example Codes Etc.

Specifiatons

• Model: Luckfox-Aura-04064
• SOC: RV1126B
• Processor: Quad-core Arm [email protected]
• NPU: 3 TOPS，supports int4、int8、int16 and FP16
• Video CODEC: Supports H264/H265 video encoding/decoding
• ISP: Maximum 12M@30fps input
• Memory: 1GB LPDDR4X RAM
• Wireless Connectivity: 2.4GHz/5GHz WiFi6 & Bluetooth 5.4/BLE
• Storage: 8GB
• POE Port: IEEE 802.3af PoE
• Ethernet: 10/100/1000 M Ethernet controller and embedded PHY
• Camera Interface: 2 x MIPI CSI 4-lane
• Audio: 1 x Onboard microphone & 1 x 3.5mm audio jack (headphone/microphone combo)
• USB: 1 x USB3.0 OTG Type-C & 4 x USB HOST 2.0 (HUB expansion)
• RTC: 1 x RTC Port（SH1.0-2P）
• Storage Expansion: 1 x MicroSD slot
• System: Buildroot、Debian13
• Power Input: 5V DC
• GPIO: 40PIN header (compatible with some Raspberry Pi HATs)

Package Includes

• SH1.0 3PIN cable ~100mm x2
• IPEX 4 to SMA cable x2
• 6DB antenna ~17cm x2
• USB Type-A to Type-C cable ~1m x1

Pin definition

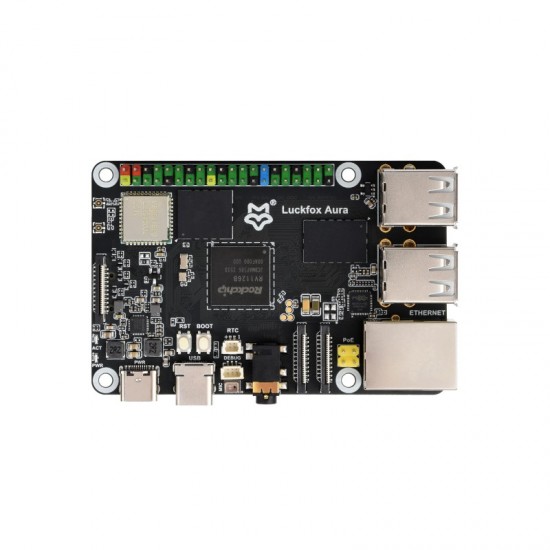

What's On Board

Dimensions
