Luckfox Core1106 Smart 86 Box (Wireless) Development Board, RV1106G2 Processor, 0.5 / 1TOPS, 128MB DDR3L, ARM Cortex-A7 32-bit Core

Features

• Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
• Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS, and RV1106G2 is 0.5TOPS
• Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
• Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
• Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths.



Package Contents

Luckfox-Pico-86-Panel × 1

Resources

User Manual / Datasheet / Example Codes Etc.

Specifications

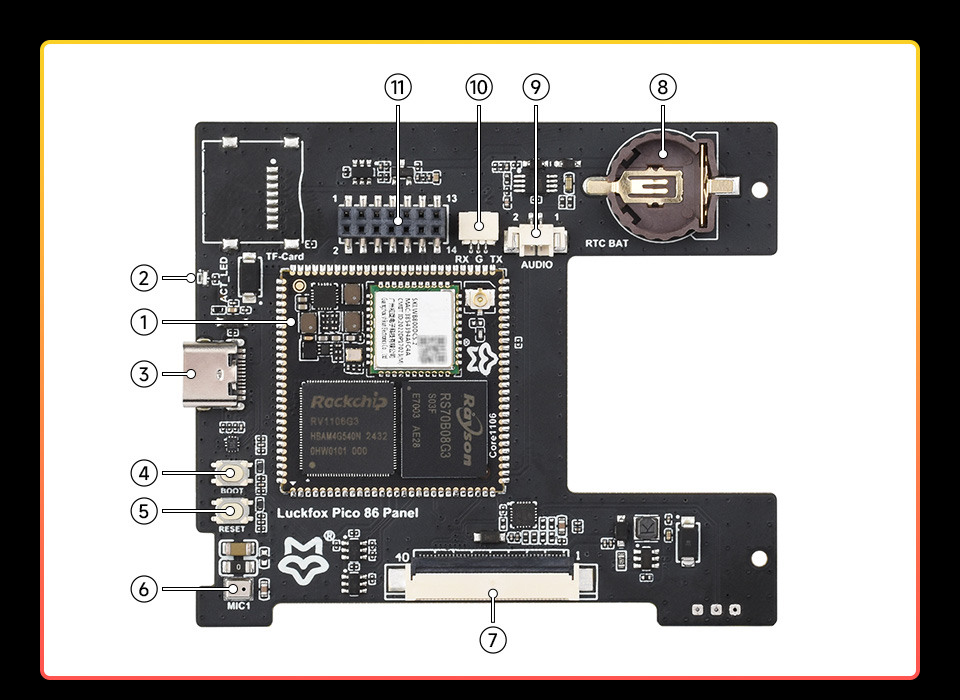

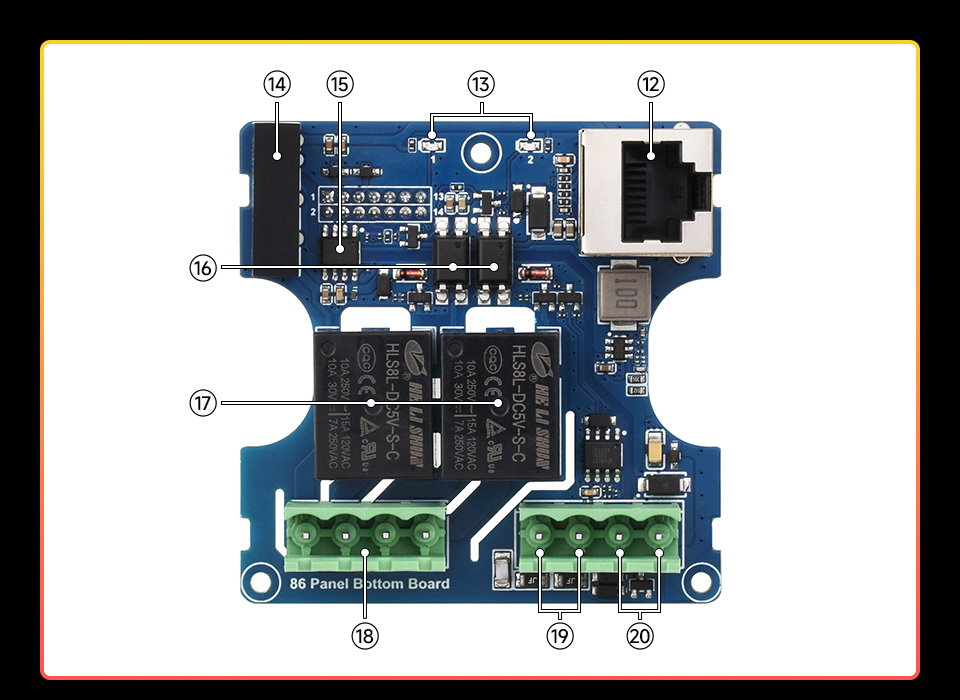

Onboard Peripherals

Dimensions
