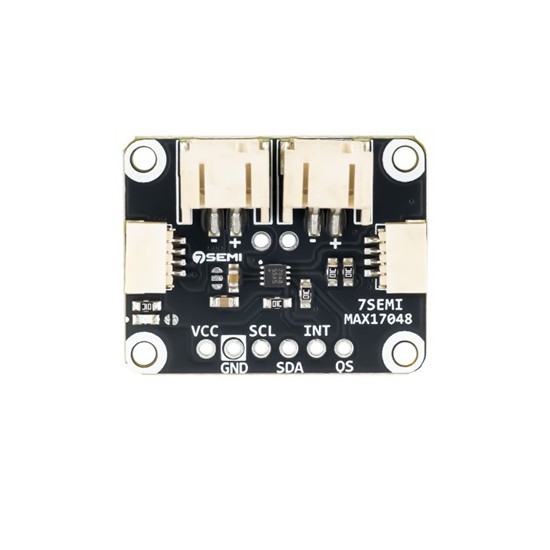

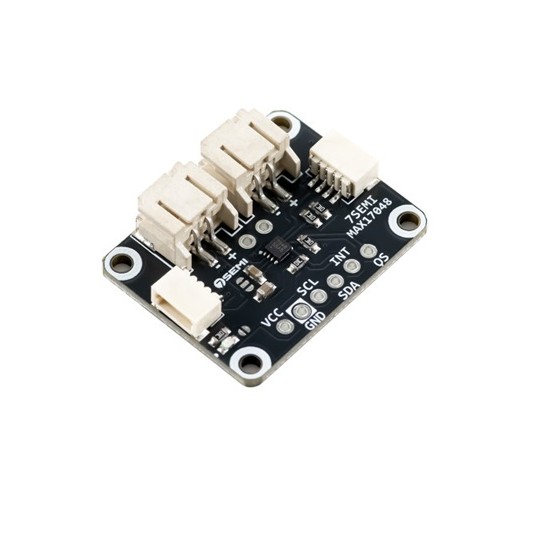

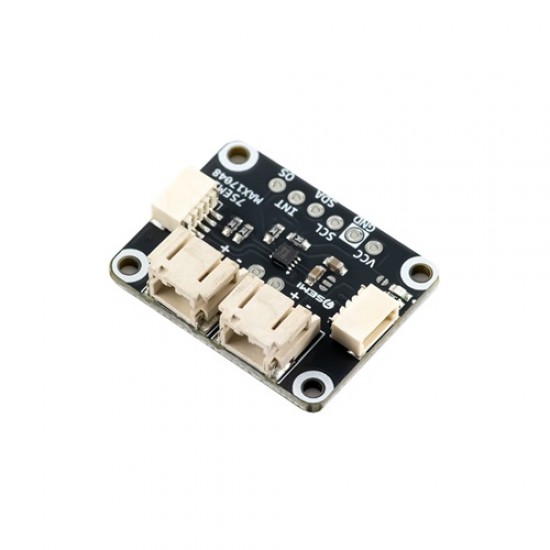

MAX17048 LiPoly - LiIon Fuel Gauge and Battery Monitor Breakout

The 7Semi MAX17048 Fuel Gauge Module is a high-accuracy lithium battery monitoring solution designed for single-cell Li-Ion and LiPo battery-powered applications. Built around the Maxim Integrated MAX17048 fuel gauge IC, this compact module provides real-time battery State of Charge (SOC), battery voltage measurement, charge/discharge rate estimation, and programmable battery alerts through a simple I2C interface. Unlike traditional fuel gauge solutions that require current sensing resistors and complex calibration procedures, the MAX17048 utilizes the advanced ModelGauge™ algorithm to deliver highly accurate battery capacity estimation while minimizing hardware complexity.

This battery fuel gauge breakout board is ideal for portable electronics, IoT devices, wearable electronics, battery-powered sensors, wireless products, robotics, handheld instruments, smart home systems, medical devices, and embedded development projects. The onboard JST battery connectors make battery integration simple, while the exposed I2C pins allow seamless connectivity with Arduino, ESP32, STM32, Raspberry Pi, RP2040, and other microcontroller platforms. The module continuously tracks battery condition and remaining capacity, helping developers create reliable battery-powered products with improved user experience and power management capabilities.

The MAX17048 employs Maxim's industry-leading ModelGauge technology, eliminating the need for battery learning cycles and current-sense resistors commonly found in conventional fuel gauge systems. The device automatically enters ultra-low-power hibernate mode during periods of low battery activity, reducing current consumption to as low as 3µA while maintaining accurate fuel gauging performance. Integrated low-battery alerts, voltage threshold monitoring, battery insertion detection, and charge/discharge rate reporting make this module an excellent choice for advanced battery monitoring applications where efficiency, accuracy, and low power consumption are critical requirements.

Datasheet

Features

Based on Maxim Integrated MAX17048 Fuel Gauge IC
Designed for single-cell Li-Ion and LiPo batteries
Advanced ModelGauge™ battery estimation algorithm
Accurate State of Charge (SOC) monitoring
High-precision battery voltage measurement
No external current sense resistor required
No battery learning cycle required
Ultra-low power consumption design
Hibernate current as low as 3µA
Active current consumption approximately 23µA
I2C communication interface up to 400kHz
Programmable low battery alert output
Battery insertion detection capability
Charge and discharge rate reporting
Voltage monitoring and threshold alerts
Quick-start battery estimation support
Automatic hibernate mode operation
Compact form factor for embedded applications
Compatible with Arduino, ESP32, STM32 and Raspberry Pi
Suitable for portable and battery-powered products

Specifications

IC: MAX17048 Fuel Gauge IC
Function: Measures battery State of Charge (SoC) and battery voltage
Battery Support: Single-cell LiPo / Li-Ion batteries (1S)
Operating Battery Voltage: 2.5V to 4.5V
Fuel Gauge Algorithm: ModelGauge™ technology (no battery characterization required)
Communication Interface: I2C (2-wire interface)

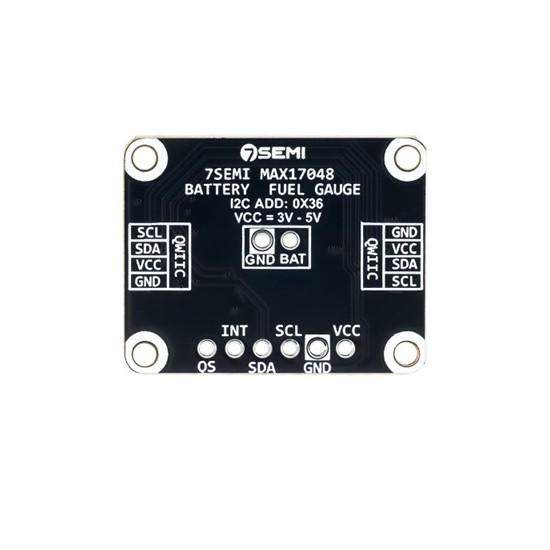

I2C Address: 0x36 (default)
Battery Percentage Resolution: Up to 0.1%
Voltage Measurement Resolution: 1.25mV

Package Includes

1x MAX17048 LiPoly - LiIon Fuel Gauge and Battery Monitor Breakout
