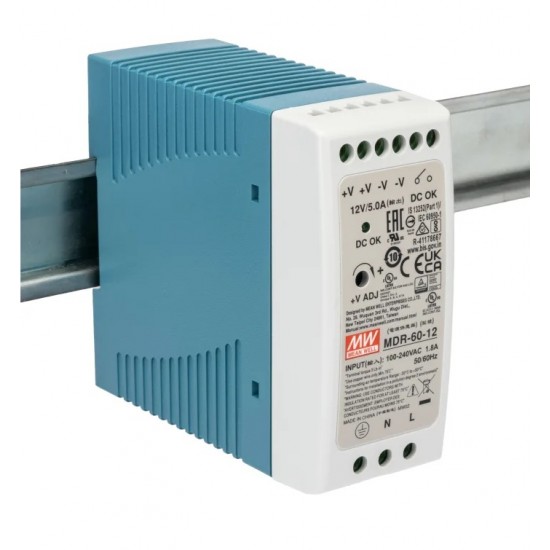

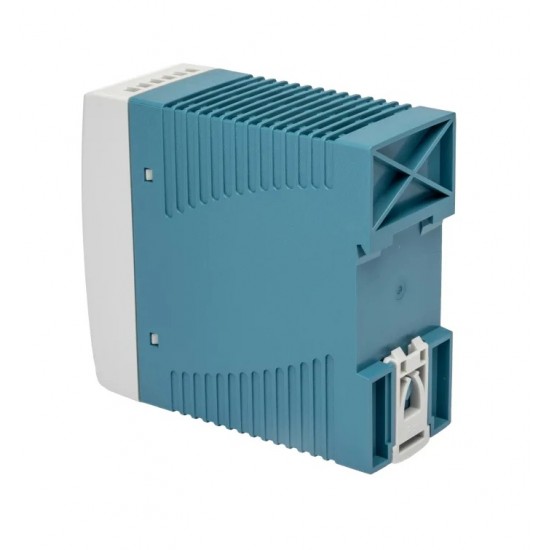

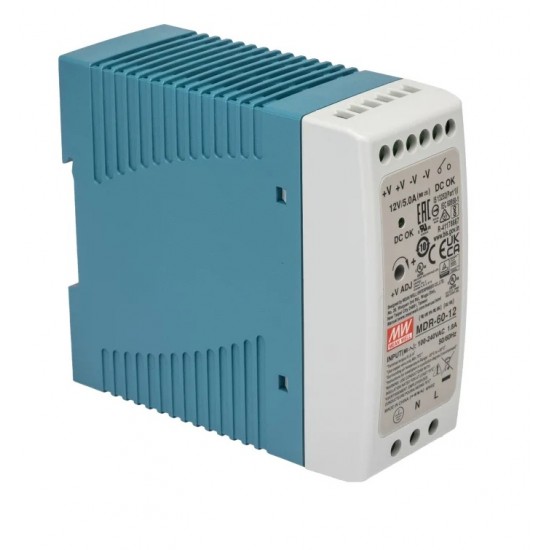

Name: Mean Well MDR-60-12 12V 5A 60W Industrial DIN Rail Power Supply - Single Output
Brand: Mean Well
SKU: 07540
Price: 1740.00 INR
Availability: InStock

Mean Well MDR-60-12 12V 5A 60W Industrial DIN Rail Power Supply - Single Output

Mean Well

Mean Well MDR-60-12 12V 5A 60W Industrial DIN Rail Power Supply - Single Output

Based on 0 reviews. - Write a review

₹1,740.00

₹1,474.58 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 15
B2B GST Credit Available

Price in reward points: 1475

Stock: 5 in Stock
SKU: 07540
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

Mean Well EDR-120-24 24V 5A 120W Industrial DIN Rail Power Supply - Single Output

The Mean Well MDR-60-12 is a reliable industrial DIN rail mounted switching power supply offering a 12 V DC output at up to 5 A (60 W). Designed for automation, control panels, and industrial electrical systems, this compact unit delivers stable and efficient power with universal AC/DC input compatibility. It features built-in protections and industry-standard safety compliance, making it a dependable choice for powering sensors, controllers, relays, instruments, and other low-voltage equipment in harsh environments.

Datasheet

Features

Single Output Power Supply – Provides 12 V DC at 5 A for a 60 W rated output.
Universal AC/DC Input – Wide input range 85–264 VAC or 120–370 VDC, suitable for global applications.
DIN Rail Mountable – Easy installation on standard TS-35/7.5 or TS-35/15 DIN rails.
Comprehensive Protection – Includes short circuit, overload, and over-voltage protections with auto-recovery.
LED Power Indicator – Visual status indication of power ON.
DC OK Relay Contact – Provides remote monitoring of output status.
Low No-Load Consumption – < 0.75 W for energy efficiency.
Fanless Convection Cooling – Silent, reliable operation with no moving parts.
100% Full Load Burn-in Tested – Ensures reliability under rated conditions.
Safety & EMC Compliant – Meets major international standards including UL508 and TUV EN60950-1, with industrial EMC performance.

Specifications

Model: Well MDR-60-12
Output Voltage: 12 V DC
Output Current: 5 A
Output Power:60 W
Input Range: 85–264 VAC / 120–370 VDC
Frequency Range: 47 – 63 Hz
Efficiency (Typical): ~85 %
Cooling: Convection (fan-less)
Mounting: DIN rail TS35/7.5 or 15
ORKING TEMP.: -20 ~ +70 (Refer to "Derating Curve") ℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85 , 10 ~ 95% RH
Dimensions: 40*90*100mm (W*H*D)
Weight: 290 gm

Package Includes

1x Mean Well MDR-60-12 12V 5A 60W Industrial DIN Rail Power Supply - Single Output
