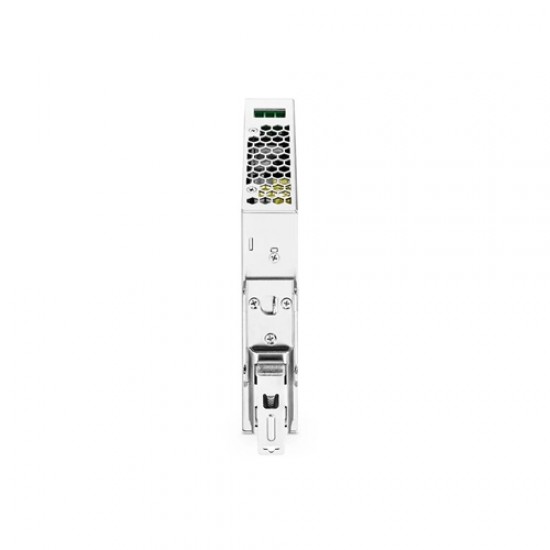

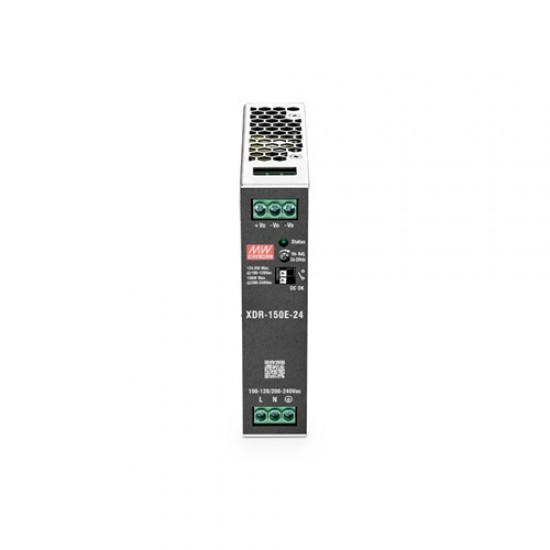

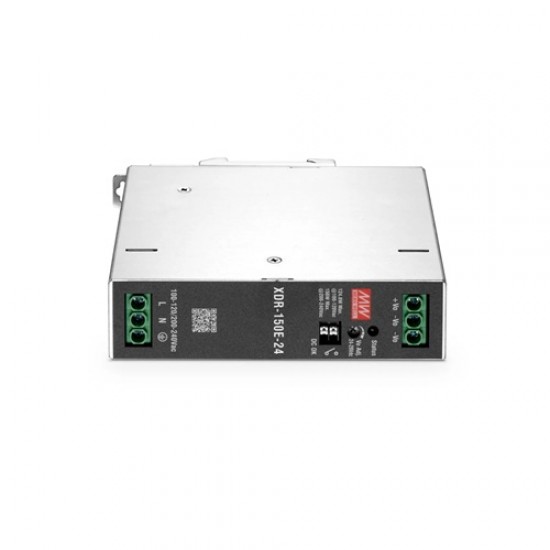

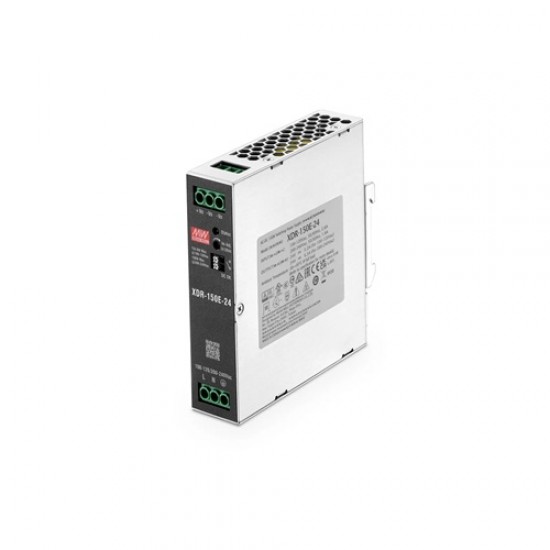

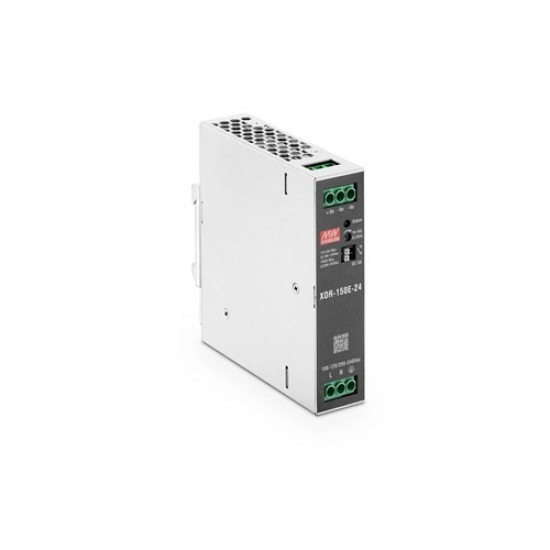

Mean Well XDR-150E-24 24V 6.5A 156W Ultra Slim DIN Rail Power Supply | Single Output
The Mean Well XDR-150E-24 is a high-performance 156W single-output DIN rail power supply designed for industrial automation, control panels, building automation, and factory equipment. Featuring an ultra-slim 30mm design, it saves valuable cabinet space while delivering a stable 24V DC output at up to 6.5A. With a universal 85–264VAC input, fanless cooling, high efficiency of up to 91.5%, and comprehensive protection features, the XDR-150E-24 ensures reliable operation in demanding industrial environments. It supports TS-35 DIN rail mounting, operates in temperatures from -40°C to +70°C, and includes a DC OK relay contact for remote status monitoring, making it an ideal choice for industrial power distribution and automation systems.
Features
- Ultra-slim 30mm width saves DIN rail cabinet space
- Universal 85–264VAC / 120–370VDC input voltage
- Stable 24V DC single output
- Delivers up to 6.5A output current
- 156W rated output power
- High efficiency up to 91.5% for reduced heat generation
- Fanless cooling with natural air convection
- Wide operating temperature range of -40°C to +70°C
- Built-in protections: Short Circuit, Overload, Over Voltage, and Over Temperature
- DC OK relay contact for remote monitoring
- Suitable for TS-35/7.5 or TS-35/15 DIN rail mounting
- Low no-load power consumption
- Compact, lightweight, and rugged industrial design
- Complies with industrial safety and EMC standards
- Ideal for continuous 24/7 industrial operation
Specifications
- Model: XDR-150E-24
- Series: XDR-E
- Output Voltage: 24V DC
- Output Current: 6.5A
- Output Power: 156W
- Input Voltage: 85–264VAC / 120–370VDC
- Frequency Range: 47–63Hz
- Efficiency: Up to 91.5%
- Output Type: Single Output
- Cooling: Free Air Convection (Fanless)
- Mounting Type: TS-35 DIN Rail
- Width: 30mm (Ultra Slim)
- Operating Temperature: -40°C to +70°C
- Protection: Short Circuit, Overload, Over Voltage, Over Temperature
- DC OK Signal: Relay Contact
- Isolation Voltage: 3kVAC (Input to Output)
Applications
- Industrial automation systems
- PLC and HMI control panels
- Factory automation equipment
- Process control systems
- Building automation systems
- Machine control cabinets
- Industrial communication equipment
- Security and surveillance systems
- Power distribution panels
- Robotics and motion control
- Test and measurement equipment
- Smart manufacturing systems
Package Includes
- 1x Mean Well XDR-150E-24 24V 6.5A 156W Ultra Slim DIN Rail Power Supply | Single Output
