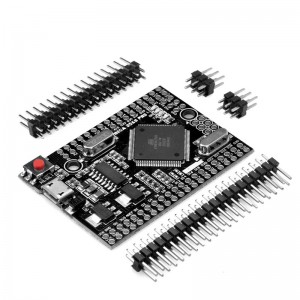

Mega2560 Pro ATMEGA2560-16AU USB CH340G Development Board - USB TYPE-C Interface
The Mega2560 Pro ATMEGA2560-16AU USB CH340G Development Board with USB Type-C Interface is a powerful and versatile platform for electronics enthusiasts, makers, and professionals alike. Based on the ATmega2560 microcontroller, this development board offers an extensive array of features and capabilities for a wide range of applications, from prototyping to complex projects.
The Mega Pro Embed functionalities are identical to the Mega 2560. Even though it is an Embed board, it is solid as stable as the Mega Board. It uses the original chip, and 16 MHz high-quality quartz resonators are present on the board. The board uses the chip CH340G as the converter UART-USB. It provides a stable data exchange result when you work at a frequency of 12Mhz (requires the driver to be installed on the computer).
You can power the board or the pins through the TYPE-C USB connector. The Voltage regulator (LDO) can handle input voltages from 6V to 9V (peak 18V) DC. The output current is 5V- about 800mA,3.3V- about 800mA (please note that the higher the input voltage, the lower the output current). This will provide reliable power for most of your initial projects.
Features
- ATmega2560-16AU microcontroller with 256KB flash memory and 8KB SRAM.
- USB Type-C interface for reversible plug orientation and high-speed data transfer.
- CH340G USB-to-serial converter for reliable USB connectivity.
- The board can be powered directly through the USB C connector.
- The maximum output current upon 5V is around 800mA, while on the 3.3V it is about 800mA.
- Rich set of peripherals and expansion options for versatile project development.
- Compact and portable design ideal for prototyping and project implementation.
- Compatible with Arduino IDE and other development environments for easy programming and development.
Specifications
- Microcontroller : ATmega2560
- Operating Voltage : 5V
- Input Voltage (recommended) : 6-9V
- Input Voltage (limit) : 12V
- Digital I/O Pins : 54 (of which 15 provide PWM output)
- Analog Input Pins : 16
- DC Current for 5V Pin : 800 mA
- DC Current for 3.3V Pin : 800 mA
- Flash Memory : 256 KB of which 8 KB used by bootloader
- SRAM : 8 KB
- EEPROM : 4 KB
- Clock Speed : 16 MHz
- Built-in LED : 13
Package Includes
- 1x Mega2560 Pro
- 4x Pin Headers
