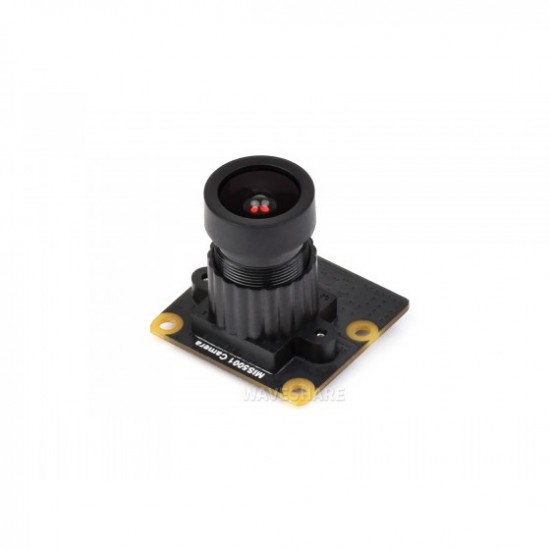

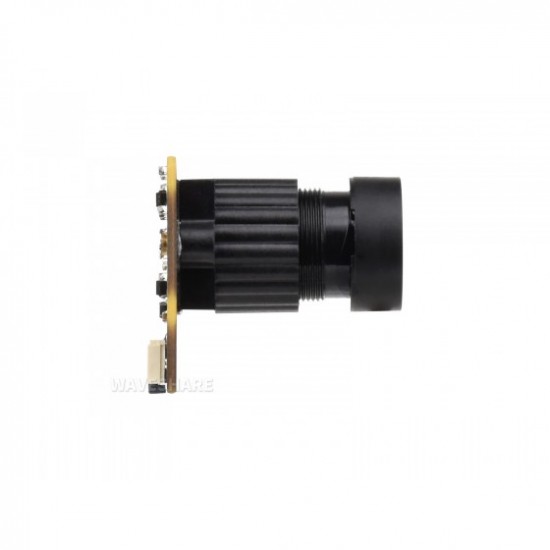

MIS5001 5MP Wide-Angle Lens Camera Module, High Sensitivity, Low Dark Current, Compatible with RV1106 Luckfox Pico Series Boards

MIS5001 5MP Wide-Angle Lens Camera Module, High Sensitivity, Low Dark Current, Compatible with RV1106 Luckfox Pico Series Boards

This is an MIS5001 5MP Wide-Angle Lens Camera Module with High Sensitivity and Low Dark Current being Compatible with RV1106 Luck fox Pico Series Boards. It Adopts MIS5001 sensor chip with 5MP resolution, features high sensitivity and low dark current, enables clear imaging even in low light environments. It is suitable for various complex scenarios, compatible with Luckfox Pico Pro / Luckfox Pico Max / Luckfox Pico Ultra boards equipped with RV1106 chip. Available in wide-angle lens version and wide-angle distortion-free lens version.

User Manual / Datasheet / Example Codes Etc.

Features

• Version: Wide-angle lens
• Model: MIS5001 5MP Camera (A)
• Focal length: 4.15mm
• Aperture: F1.6
• FOV: 93°
• Distortion: < -10.7%

Specifications

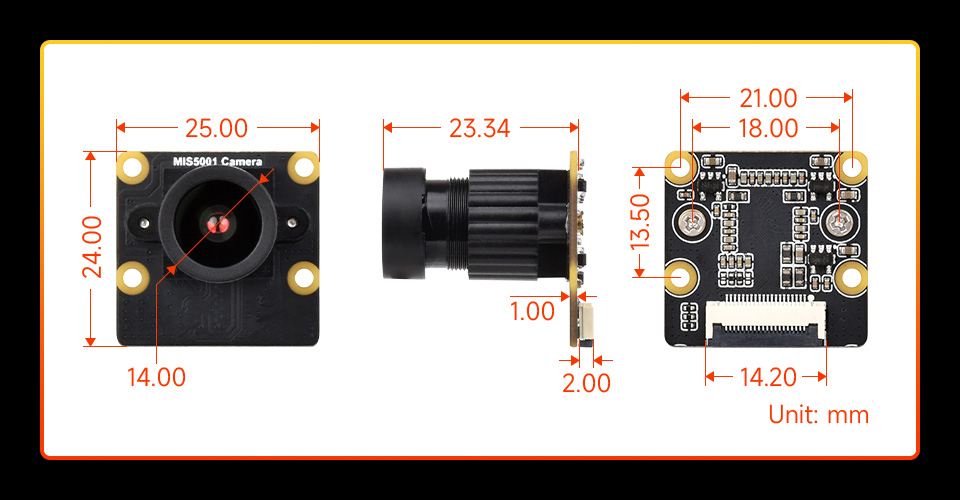

Dimensions
