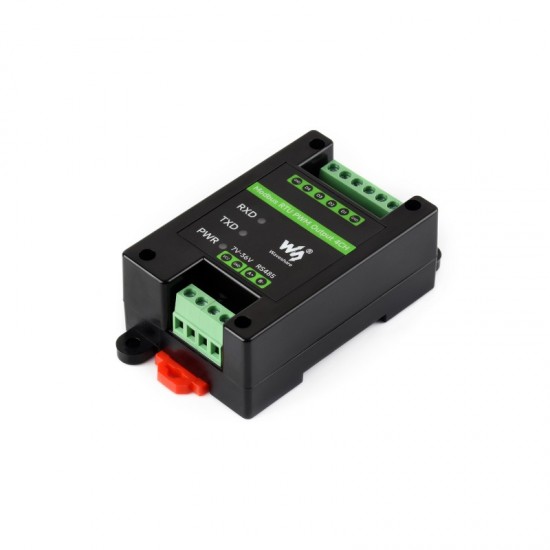

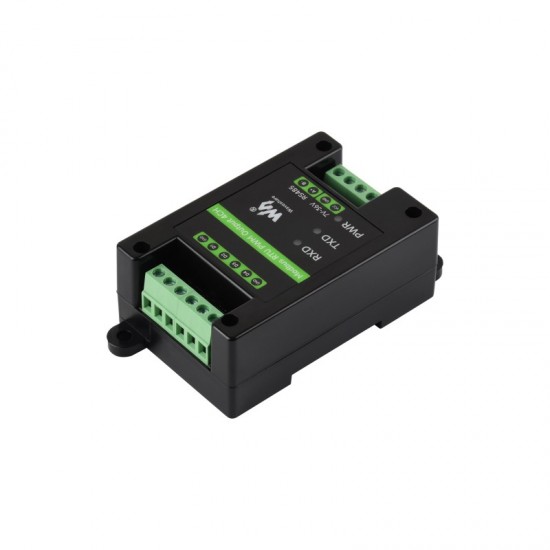

Industrial 4-Ch PWM Output Module, Modbus RTU Protocol, Isolated RS485 Interface, Adjustable Frequency and Duty Cycle, With Various Isolation And Protection Circuits

The Modbus RTU PWM Output 4CH is an isolated RS485 to PWM output module, supports 4-ch PWM outputs with adjustable frequency and duty cycle. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

User Manual / Datasheet / Example Codes Etc.

Features

The outputs use high-speed optocoupler isolation, and the output high-level voltage can be switched via an internal jumper
4-ch PWM outputs, with independently adjustable frequency and duty cycle
Configurable device address (1~255), multi devices can be cascaded on RS485 bus
Onboard voltage regulator, supports 7~36V wide range power supply
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
Onboard watchdog, for stable output without crashing

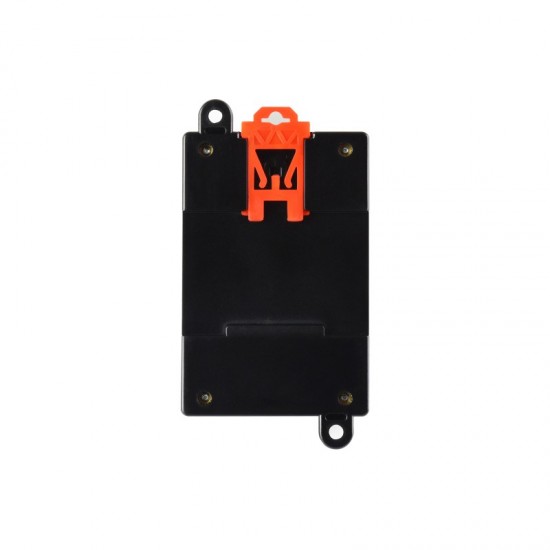

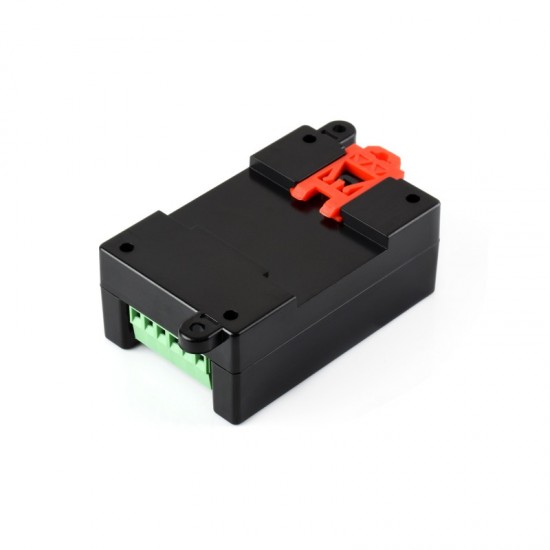

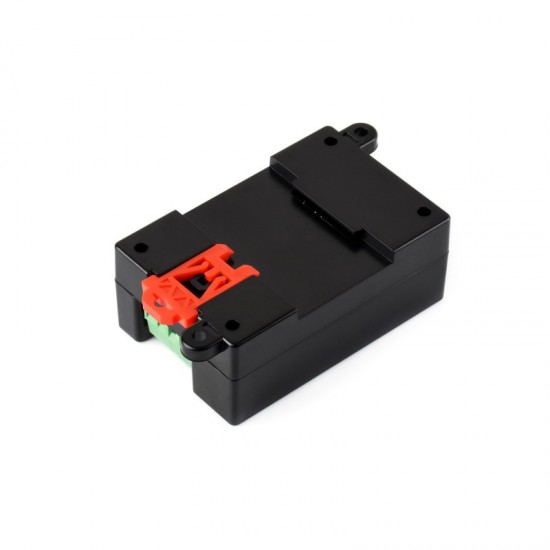

Rail-mount case design, compact size, easy to install
3x LEDs for indicating the power status and signal transceiving status

Specifications

Communication interface: RS485
Baud rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default communication format: 9600, N, 8, 1
Modbus protocol: Standard Modbus RTU protocol
Power supply: DC 7~36V
Output Voltage: 3.3V by default, configurable to 5V via internal jumper
Output Current: Signal level, < 30mA
Pulse Frequency: 1Hz ~ 200KHz
Frequency Resolution: 0.01Hz
Frequency Accuracy: 5‰
Duty Cycle: 0 ~ 100%
Duty Cycle Resolution: 0.01%
Duty Cycle Accuracy: 5‰ (1Hz ~ 50kHz), 1% (50kHz ~ 200kHz)

Package Includes

Modbus RTU PWM Output 4CH x1
Power supply terminal adapter x1
Screwdriver x1

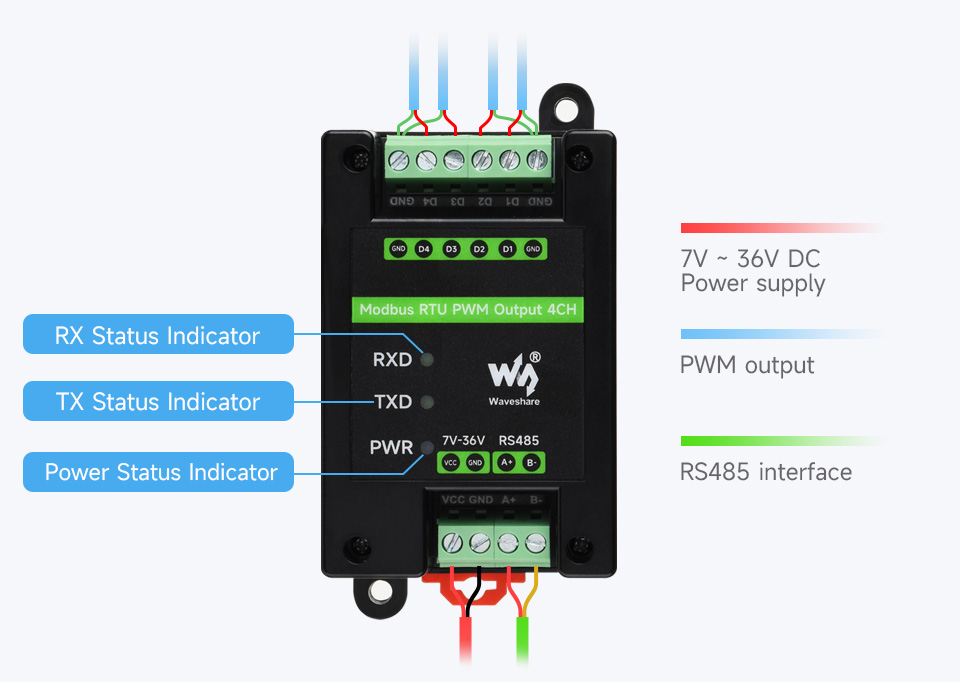

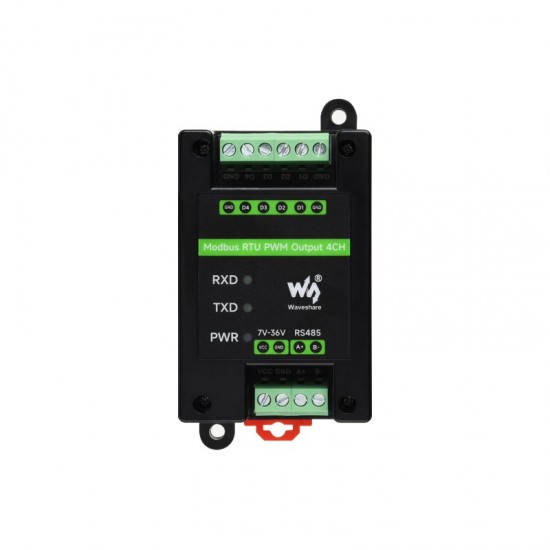

Interface Introduction

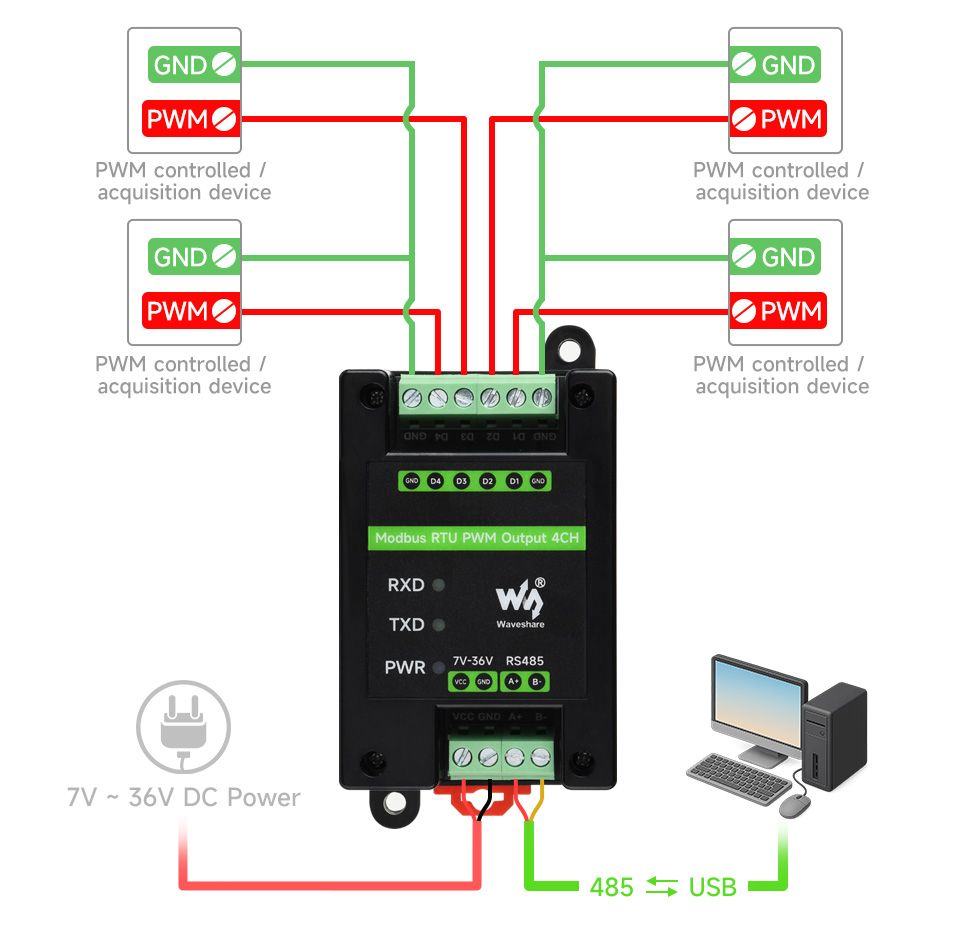

Connection Diagram

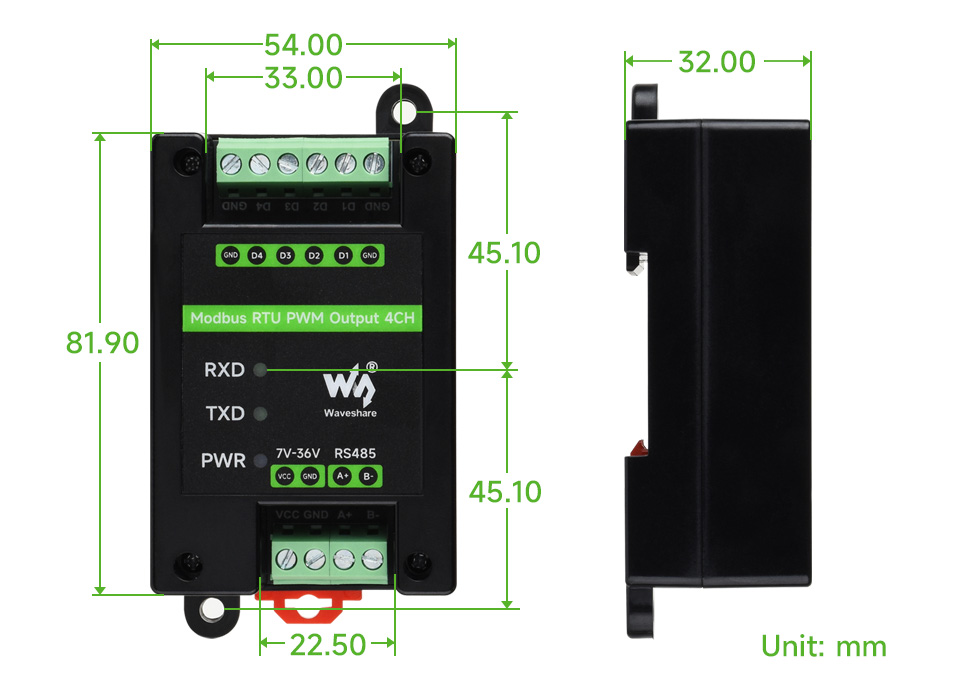

Dimensions
