Name: MP2338 DC-DC Buck Converter – Up to 24V Input, 5V 3A Output
Brand: 7Semi
SKU: 08066
Price: 232.00 INR
Availability: OutOfStock

MP2338 DC-DC Buck Converter – Up to 24V Input, 5V 3A Output

7Semi

MP2338 DC-DC Buck Converter – Up to 24V Input, 5V 3A Output

Based on 0 reviews. - Write a review

₹232.00

₹196.61 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 2
B2B GST Credit Available

Price in reward points: 196

Stock: 0 in Stock
SKU: 08066
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

MP2338 DC-DC Buck Converter – Up to 24V Input, 5V 3A Output

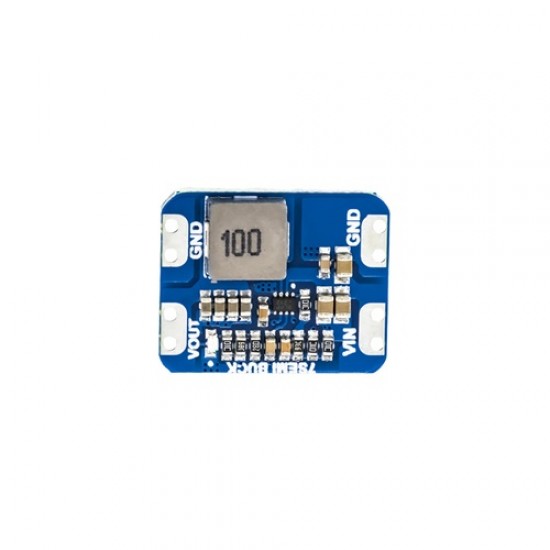

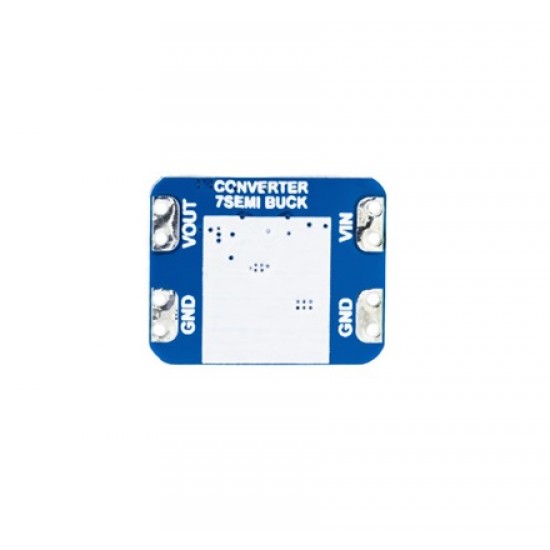

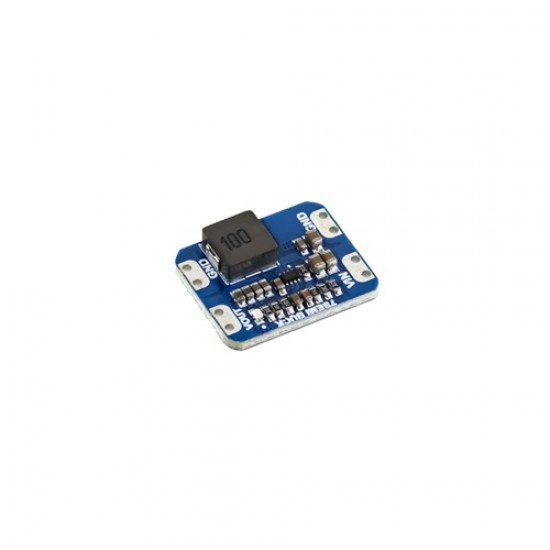

The 7Semi MP2338 DC-DC Buck synchronous converter breakout is a compact and efficient step-down power module designed to convert input voltages up to about 24V into a stable 5V output with up to 3A current. It is based on the MP2338 synchronous buck converter, which uses integrated MOSFETs to provide high efficiency and reliable power conversion. The module includes built-in protection features such as thermal shutdown and cycle-by-cycle current limiting to help protect the circuit during operation. Its small size and simple breakout design make it easy to integrate into power systems that require a stable 5V supply. This converter is suitable for powering 5V electronics, sensors, communication devices, control circuits, and other low-voltage systems where efficient and reliable voltage regulation is required.

Datasheet

Features

Wide Input Range: Operates from DC 4.5V to 28V, making it versatile for various applications.
Output: 5V 3A DC
High Efficiency at Light Load: Power Save Mode ensures minimal energy loss during low power consumption, optimizing efficiency.
Fast Transient Response: Constant-on-time (COT) control offers quick response to changes in load, maintaining steady output.
450kHz Switching Frequency: Ensures compact component size and smooth operation without excessive heat generation.
tON Extension: Improves dropout performance for consistent voltage output under low input conditions.
Adjustable Soft-Start: Configurable soft-start time reduces inrush current at startup, protecting sensitive components.
Power Good Signal: Built-in Power Good indication for easy monitoring of output status.
Enhanced Protection: Over-current protection (OCP) with Hiccup Mode, short-circuit protection (SCP), under-voltage protection (UVP), and thermal shutdown.

Specifications

Input Voltage: Upto 24V
Output Voltage: 5V fixed
Max Output Current: 3A
Operational temprature: –40°C to +70°C
Max Switching Frequncy: 450KHz

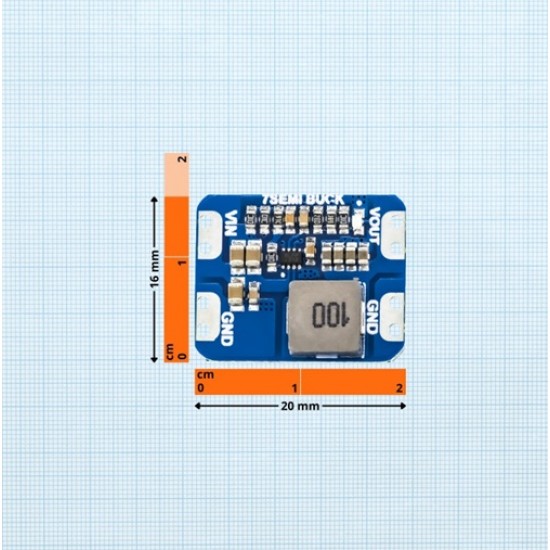

Dimension in mm: 20 x 16 x 4.5

Package Includes

1x MP2338 DC-DC Buck Converter – Up to 24V Input, 5V 3A Output
