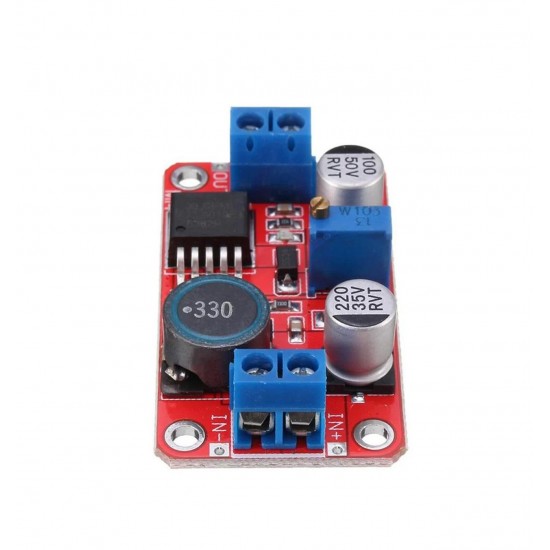

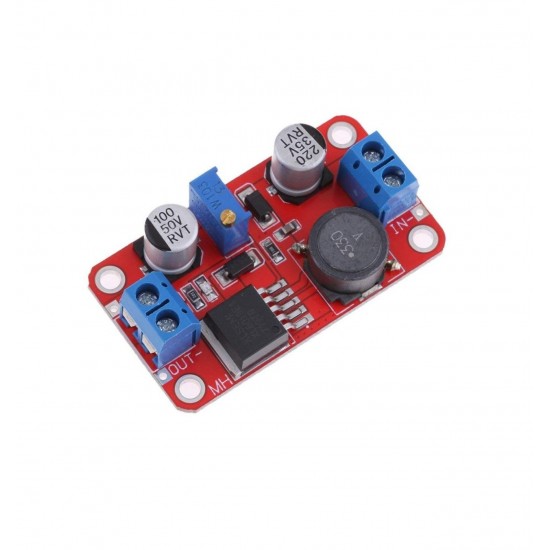

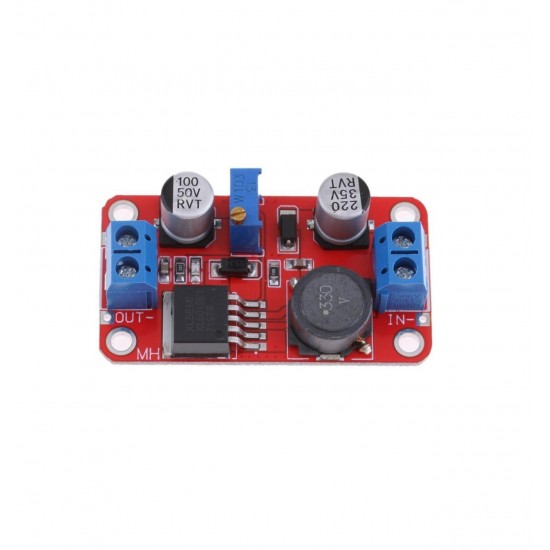

XL6019 DC-DC 5A Adjustable Step-Up Boost Converter Power Supply Module
The XL6019 DC-DC 5A Adjustable Step-Up Boost Converter Power Supply Module is a high-efficiency voltage regulator designed to increase DC input voltage to a higher adjustable output level. Built around the reliable XL6019 boost converter chip, this module offers stable performance, high current capacity up to 5A, and excellent conversion efficiency.
It features a wide input voltage range and an adjustable output voltage, making it ideal for DIY electronics, battery-powered projects, LED drivers, automotive applications, solar systems, and embedded development. The onboard potentiometer allows precise output voltage adjustment, while its compact design ensures easy integration into various projects.
XL6019 DC-DC 5A Adjustable Boost Power Supply Module is based on the upgraded XL-Semi XL-6019, offering up to 5A switching current and conversion efficiency of up to 97%.
Features
- XL6019 high-performance boost converter chip
- Up to 5A output current
- Adjustable output voltage
- High efficiency conversion
- Compact and easy-to-install design
- Suitable for DIY, robotics, IoT, and power supply projects
Specifications
- Controller IC: XL6019 high-efficiency boost converter
- Output ripple: 100mv (MAX)
- Voltage regulation: 0.5% MS + -> Positive; IN > Negative; OUT + -> Positive; OUT >
- Negative Output Voltage: DC 5-40V (Adjustable)
- Input Current: 5A (MAX)
- Input Voltage: DC 3-35 V Switching
- Switching Frequency: 220 kHZ
- Load regulation: 0.50%
- Conversion Efficiency: Typically ≈ 90 % – 94 % (varies with load & voltage)
- Working Temperature: Industrial (-40 C to + 85 C)

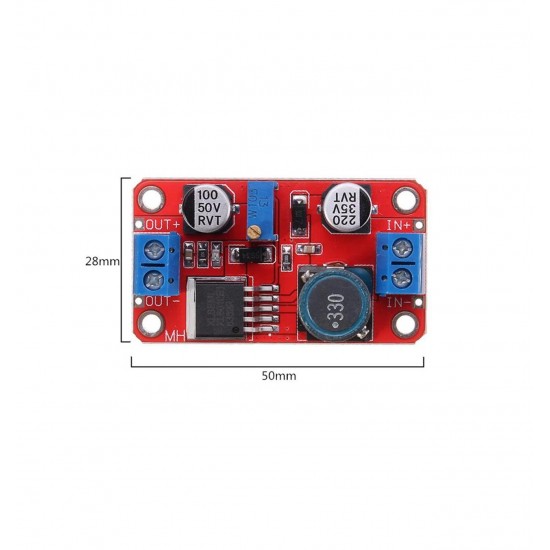

- Dimensions: Approx 50 x 28 x 13mm (L x W x H)
Package Includes
- 1x XL6019 DC-DC 5A Adjustable Step-Up Boost Converter Power Supply Module
