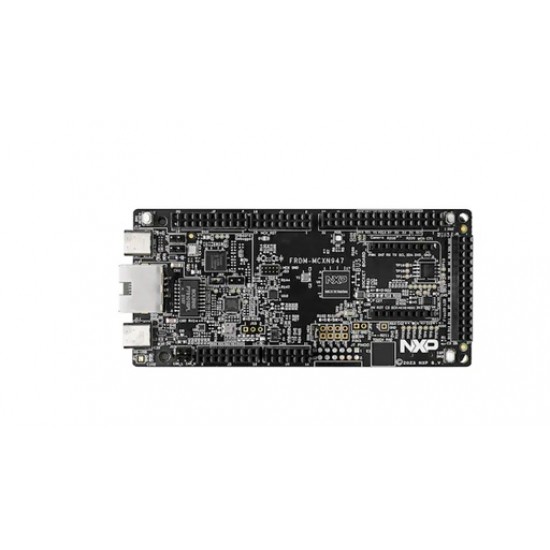

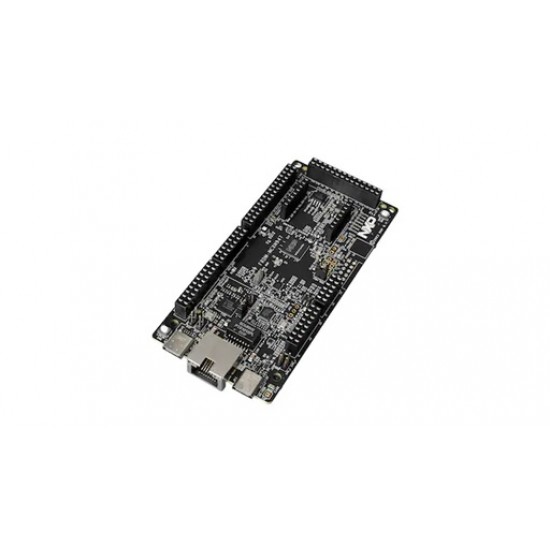

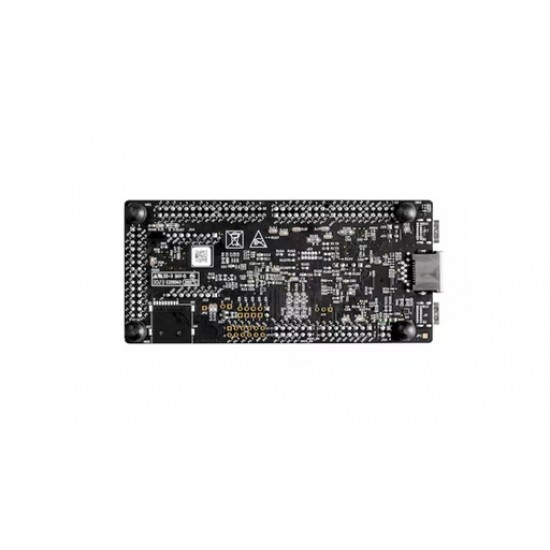

NXP FRDM-MCXW71 Development Board for MCX N94/N54 MCUs
FRDM-MCXN947 are compact and scalable development boards for rapid prototyping of MCX N94 and N54 MCUs. They offer industry standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.
User Manual / Datasheet / Example Codes Etc.
Features
- Microcontroller
- MCX-N947 Dual Arm® Cortex® -M33 cores @150MHz each with optimized performance efficiency, Up to 2MB dual-bank flash with optional full ECC RAM, External flash
- Accelerators: Neural Processing Unit, PowerQuad, Smart DMA, etc.
- Memory Expansion: DNP Micro SD card socket
- Connectivity
- Ethernet Phy and connector
- HS USB Type-C connectors
- SPI/I²C/UART connector (PMOD/mikroBUS, DNP)
- WIFI connector (PMOD/mikroBUS, DNP)
- CAN-FD transceiver
- Debug
- On-board MCU-Link debugger with CMSIS-DAP
- JTAG/SWD connector
- Sensor: P3T1755 I3C/I²C Temp Sensor, Touch Pad
- Expansion Options
- Arduino® Header (with FRDM expansion rows)
- FRDM Header
- FlexIO/LCD Header
- SmartDMA/Camera Header
- Pmod™ *DNP
- mikroBUS™
- User Interface: RGB user LED, plus Reset, ISP, Wakeup buttons
Package Includes
- 1x NXP FRDM-MCXW71 Development Board for MCX N94/N54 MCUs

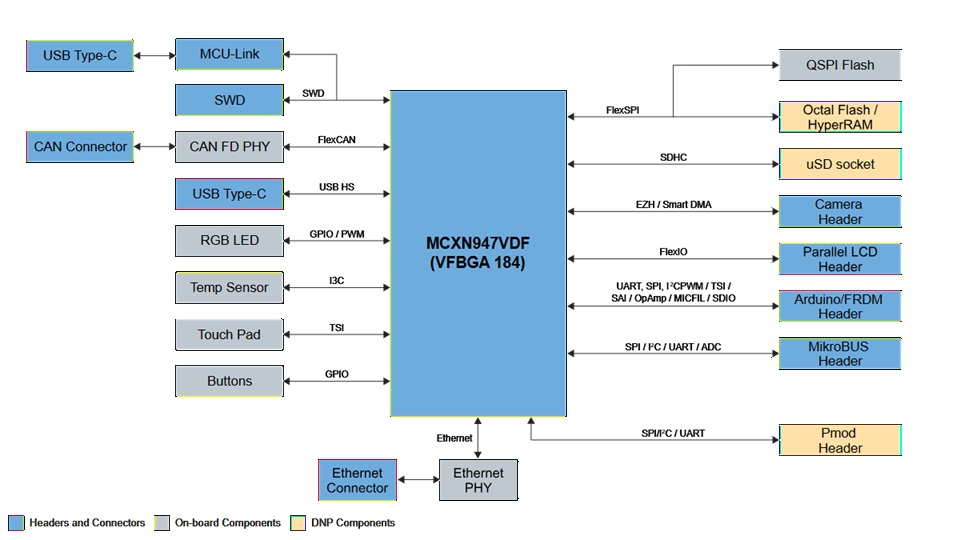

Block Diagram
