Waveshare PCM5122 HIFI I2S DAC Audio Board For Raspberry Pi, Based On Raspberry Pi 40PIN GPIO Header, Stereo Encoding / Decoding, Supports High-quality Audio Playback
₹​1,149.00
₹​973.73 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 10
B2B GST Credit Available
Price in reward points: 975

Waveshare PCM5122 HIFI I2S DAC Audio Board For Raspberry Pi, Based On Raspberry Pi 40PIN GPIO Header, Stereo Encoding / Decoding, Supports High-quality Audio Playback

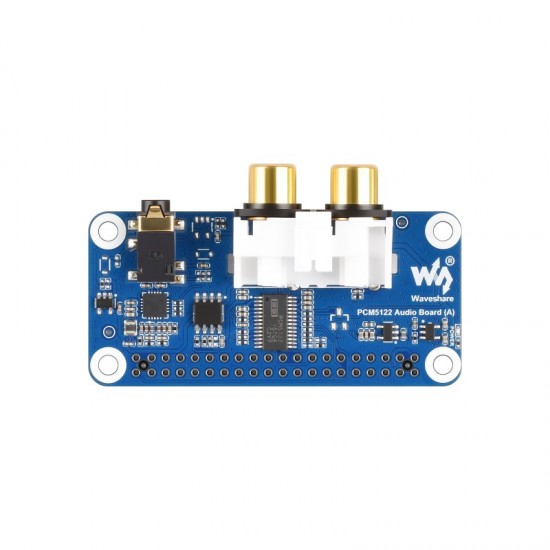

This product is an audio module designed for the Raspberry Pi, a dedicated audio sound card expansion board for the Raspberry Pi, with stereo encoding and decoding, supporting high-quality audio playback.


User Manual / Datasheet / Example Codes Etc.


Features

  • Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
  • Adopts PCM5122 professional stereo DAC chip, controlled through I2C, with audio transmitted via I2S interface
  • Onboard standard 3.5mm headphone jack, supports audio playback via external headphones
  • Built-in RCA connector for use with speaker and other devices in a variety of scenarios
  • Supports sampling frequency up to 384kHz
  • Supports up to 32-bit resolution audio data


Specifications

  • Supply voltage: 5V
  • Logic voltage: 3.3V
  • Audio codec chip: PCM5122
  • Control nterface: I2C
  • Audio interface: I2S
  • DAC SNR: 112dB


Package Includes

  • PCM5122 Audio Board (A) x1
  • 2*20pin header x1
  • Screwdriver x1

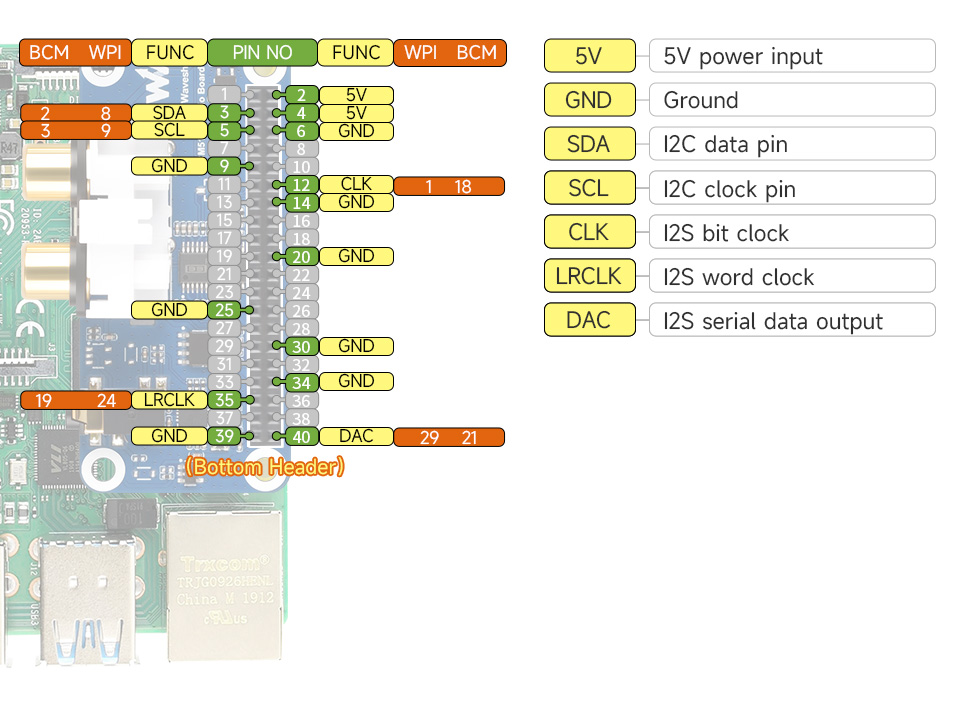

Pin definition

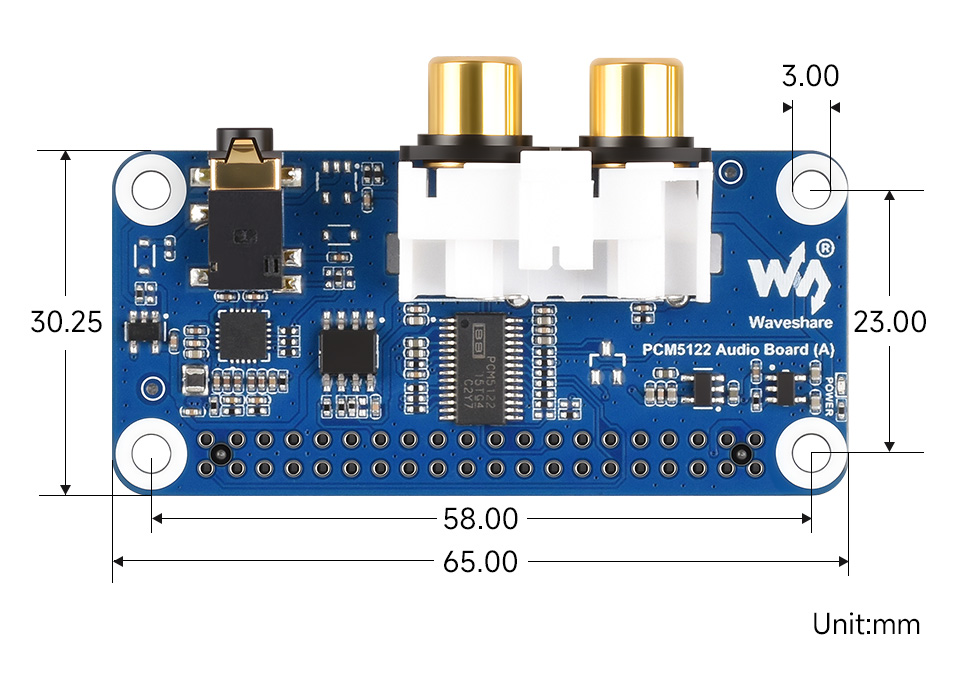

Dimensions
