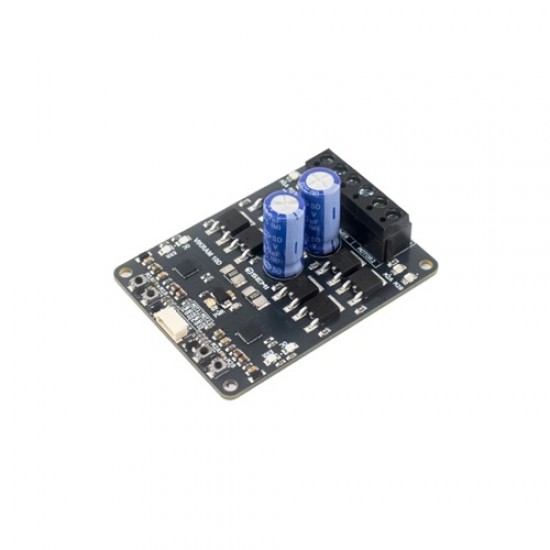

7Semi VIKRAM-3010D Dual DC Motor Driver | 6V–30V Input, 10A Dual Channel
The 7Semi VIKRAM-3010D is a powerful dual-channel motor driver designed to control two high-power DC motors easily. It supports a wide input voltage range from 6V to 30V and can deliver up to 10A continuous current per channel, making it suitable for heavy-duty motors and high-load applications. The board allows full control of motor direction, speed, and braking, giving smooth and precise operation. It comes with strong connectors for secure wiring and built-in components to handle sudden current changes. With its solid design and safety features, this module is ideal for robotics, automation systems, and other applications where strong and reliable motor control is needed.
Features
- Dual Motor Control: Can drive two high-power DC motors independently.
- High Current Support: Up to 10A continuous per channel, suitable for heavy loads.
- Wide Voltage Range: Works with 6V to 30V DC input.

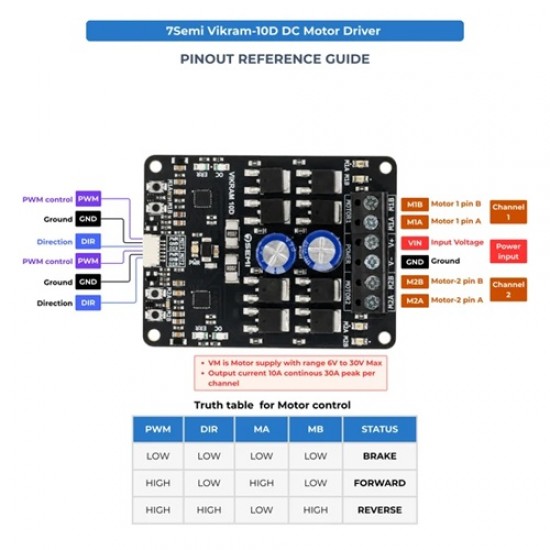

- Direction & Speed Control: Supports forward, reverse, braking, and PWM speed control.
- Multi-Voltage Logic Support: Works with 3.3V, and 5V control signals.
- Strong Screw Terminals: Secure and reliable connection for motors and power input.
- Built-in Protection: Includes thermal shutdown and over-current protection.
- Status & Fault Indication: LED indicators for easy monitoring.
- Rugged Design: Suitable for robotics, AGVs, and industrial automation systems.
Specifications
- Category of product: Motor driver
- No of Channel: 2 independent
- Operational voltage: 6V to 30V
- Continuous Output Current: 10A per channel
- Peak Output current: 30A per channel
- Control method: PWM
- PWM Frequncy: Upto 20KHz
- Logic level supported: 3.3V & 5V
- Protection Feature: Over-Current , Over voltage , Under Voltage , Thermal shutdown

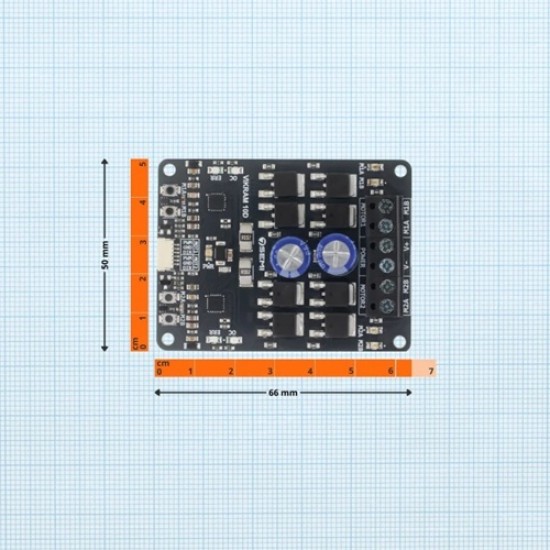

- Dimension In mm: 66mm X 50mm X 24mm
- Application: Robotic Platforms ,Linear Actuators, Industrial Automation
- Logic signal Input connector: 6 Pin JST 1.25mm Pitch
Package Includes
- 1x 7Semi VIKRAM-3010D Dual DC Motor Driver | 6V–30V Input, 10A Dual Channel
