Waveshare IMX219 Camera Module For Raspberry Pi 5, 8MP, MIPI-CSI Interface, 120° FOV

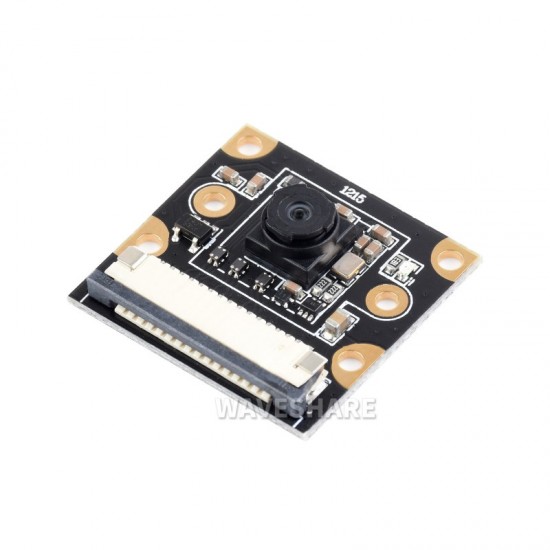

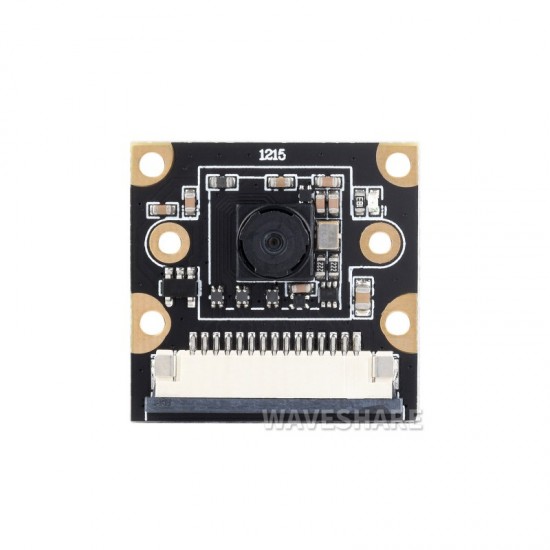

The Waveshare IMX219 Camera Module for Raspberry Pi 5 is a compact 8MP camera designed for high-quality imaging and computer vision projects. Featuring the Sony IMX219 sensor and a MIPI-CSI interface, this camera module delivers clear image capture with a wide 120° field of view, making it ideal for robotics, surveillance, AI vision, FPV applications, smart monitoring systems, and Raspberry Pi-based photography projects.

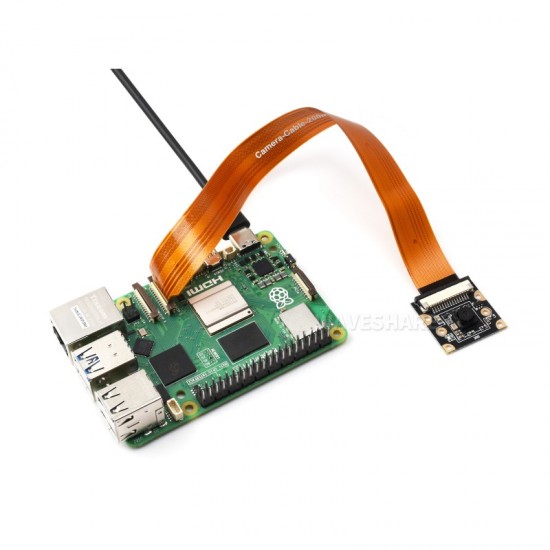

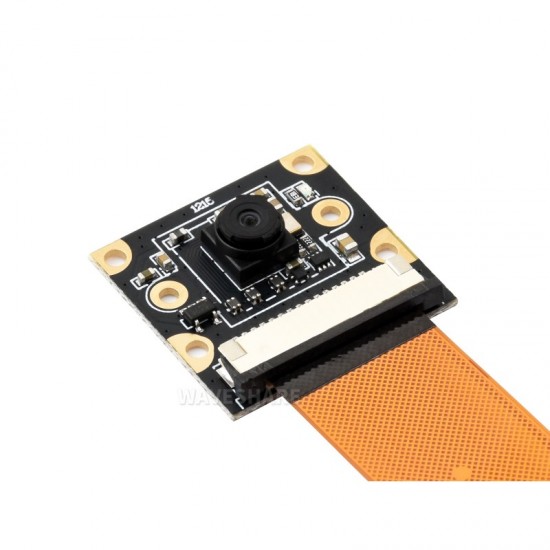

Designed specifically for Raspberry Pi 5, the module includes a 200mm CSI flexible cable for easy connection and stable high-speed image transmission. The ultra-wide-angle 120° lens helps capture a larger scene area, making it suitable for panoramic imaging and edge AI applications. Its compact 25 × 24mm form factor with mounting holes allows seamless integration into embedded and industrial projects.

User Manual / Datasheet / Example Codes Etc.

Features

IMX219 8MP CMOS image sensor
High resolution up to 3280 × 2464 pixels
Wide-angle 120° field of view
MIPI-CSI interface for high-speed image transfer
Compatible with Raspberry Pi 5
Includes 200mm CSI flexible cable
Compact and lightweight design
F2.0 aperture for improved light capture
Ideal for AI vision, robotics, FPV, and surveillance
Four mounting holes for secure installation

Specifications

Model: Pi5-IMX219-120
PIXELS: 8MP
Sensor: IMX219
Resolution: 3280×2464
CMOS size: 1/4 inch
Aperture (F): 2.0
Focal length: 1.79mm
Field of view: 120°
DISTORTION: <13.6%
Lens dimensions: 6.5×6.5mm

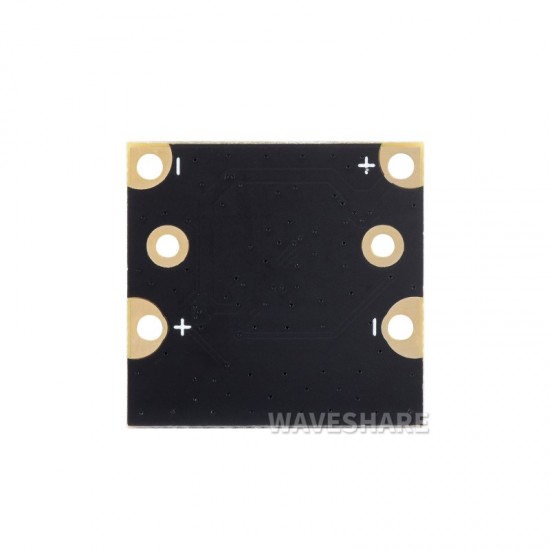

Screw holes: 4 × screw holes, used for attachment, provides 3.3V power output
Dimension: 25×24mm

Package Includes

1x IMX219 Camera Module For Raspberry Pi 5,
1x 8MP, MIPI-CSI Interface,120° FOV

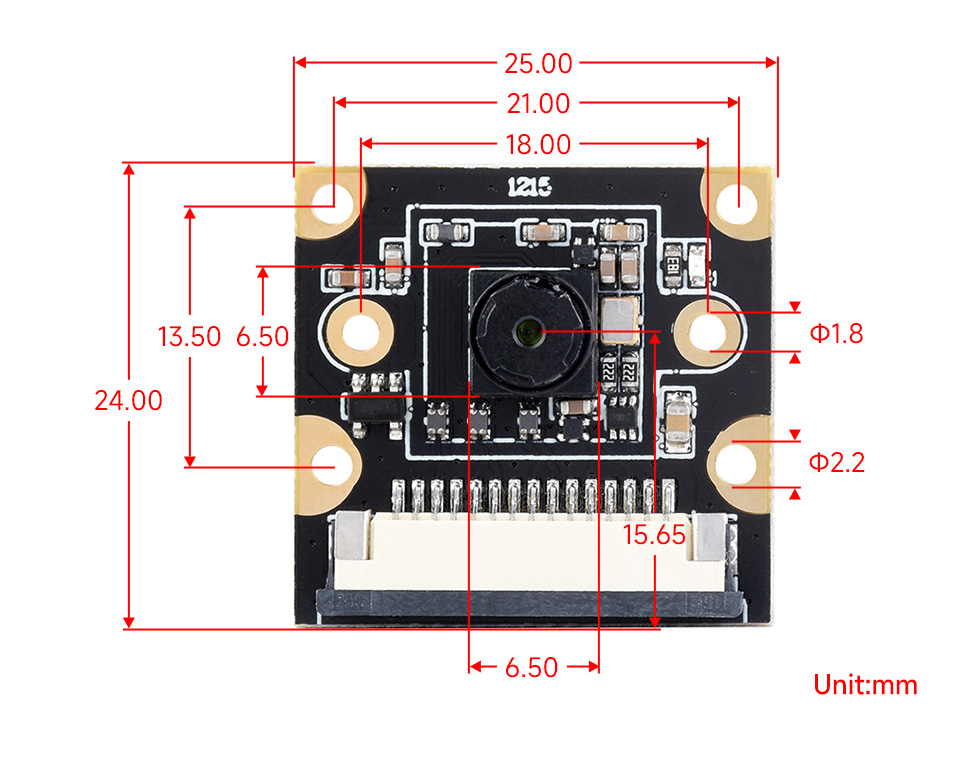

Dimensions
