L76K GNSS Module For Raspberry Pi Pico, GPS / BeiDou (BDS) / GLONASS / QZSS Support, Supports A-GNSS Function

The Pico-GPS-L76K is a GNSS module designed for Raspberry Pi Pico, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning. Supports AGNSS function, and offers advantages such as fast positioning, high accuracy, and low power consumption. Combined with the Raspberry Pi Pico / Pico 2, it's easy to use global navigating function.

User Manual / Datasheet / Example Codes Etc.

Featuers

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS
Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity
Built-in SAW Filter for enhanced noise reduction performance
Supports AGNSS
UART communication baudrate: 4800~115200bps (9600bps by default)
Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
4x LEDs for indicating the module operating status
Comes with online development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

GNSS: GPS/GLONASS/BDS/QZSS
Chip Platform: AT6558R
L1 Band Receiver(Channels): 32 tracking ch/ 72 acquisition ch
L1 Band Receiver
SBAS: N/A
A-GNSS: Support
Sensitivity(Acquisition): -148dBm
Sensitivity(Re-acquisition): -160dBm
Sensitivity(Tracking): -162dBm
TTFF (Time to first fix)Cold starts: 30s, Autonomous 5.5s, With AGNSS
TTFF (Time to first fix) Hot starts: 2s
Position accuracy: 2.0m CEP
Speed accuracy: 0.1m/s
Acceleration accuracy(Max): 0.1m/s²
Timing accuracy: 30ns

Others

Communication interface: UART
Baudrate: 4800~115200bps (9600bps by default)
Update rate: 1Hz (default), 5Hz (max)
Protocols: NMEA 0183, CASIC Proprietary Communication Protocol
Power supply voltage: 5V
Overall current consumption: < 40mA@5V (Continue mode)
Operating temperature: -40℃ ~ 85℃
Dimensions: 55.95 × 21.00 (mm)

Package Includes

Pico-GPS-L76K x1
GPS Antenna x1

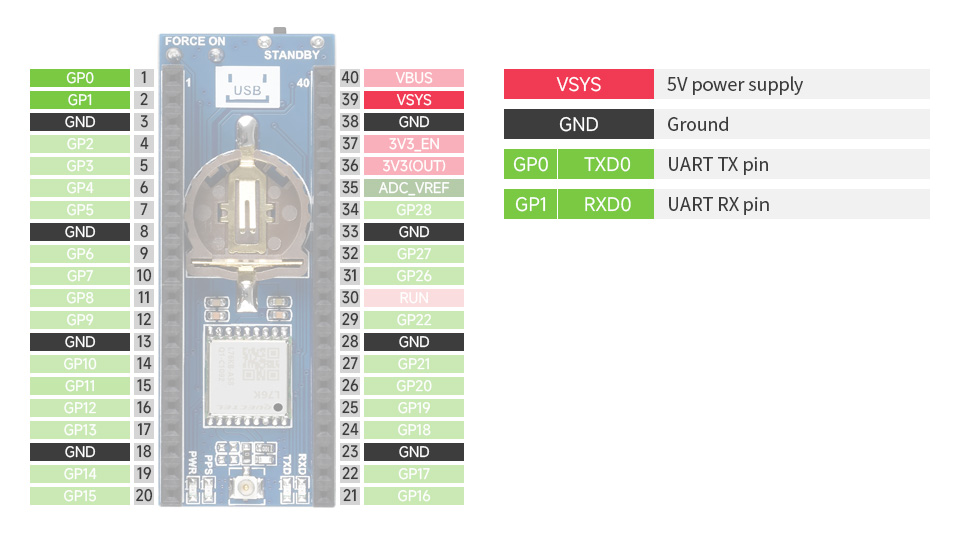

Pin Definition

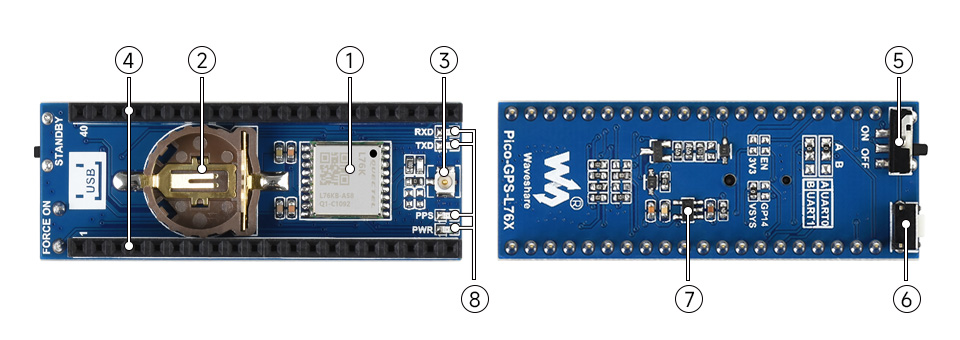

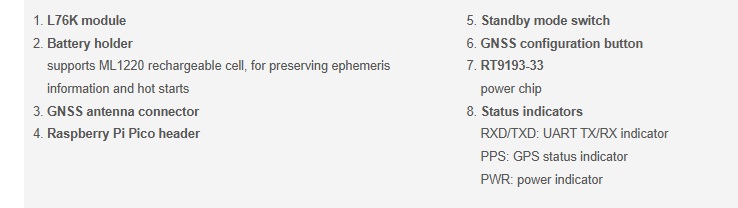

What's on board

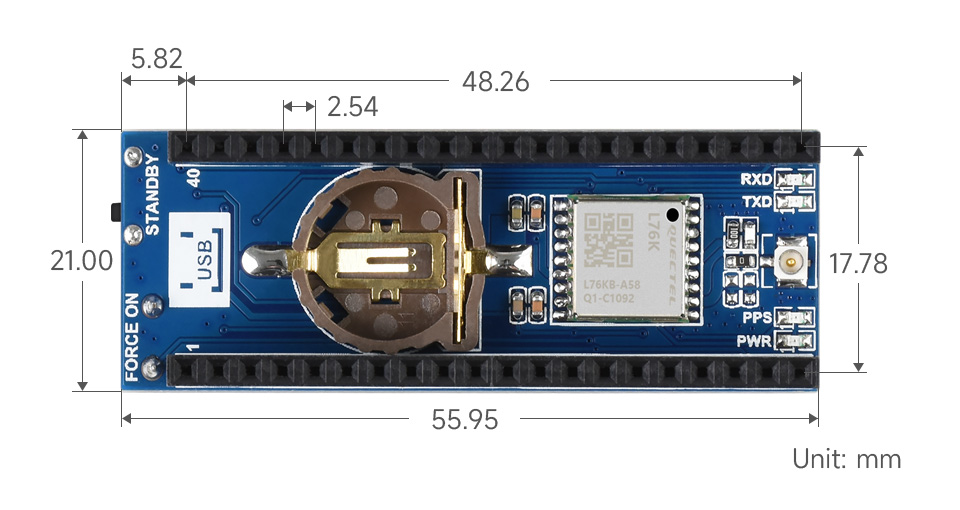

Dimensions
