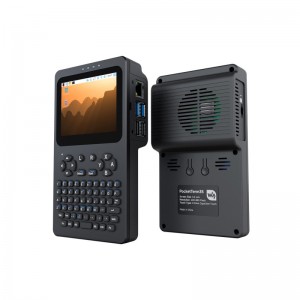

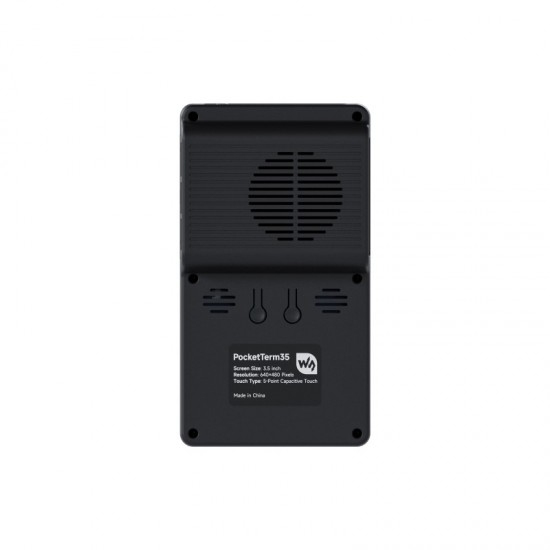

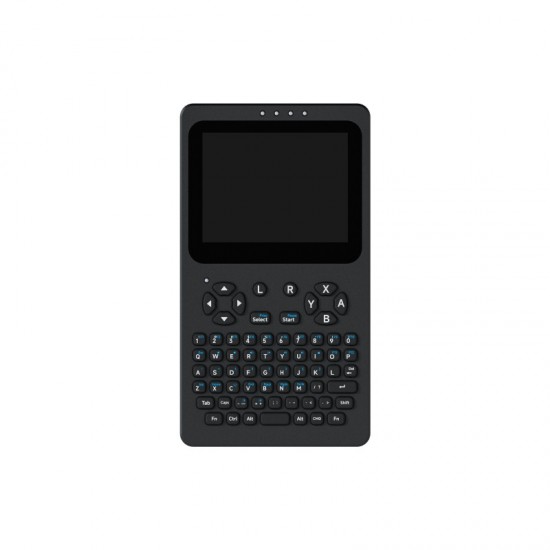

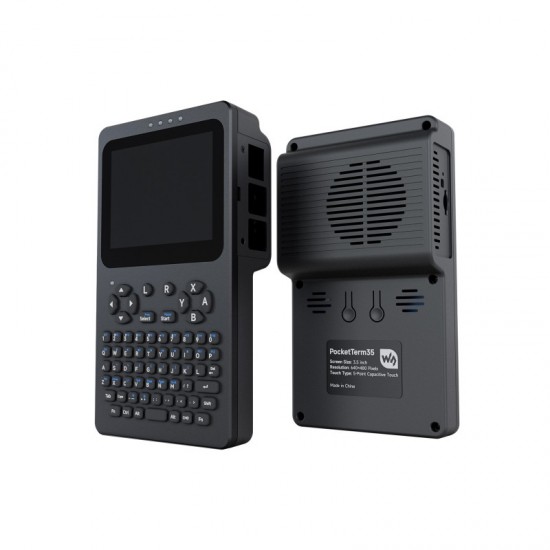

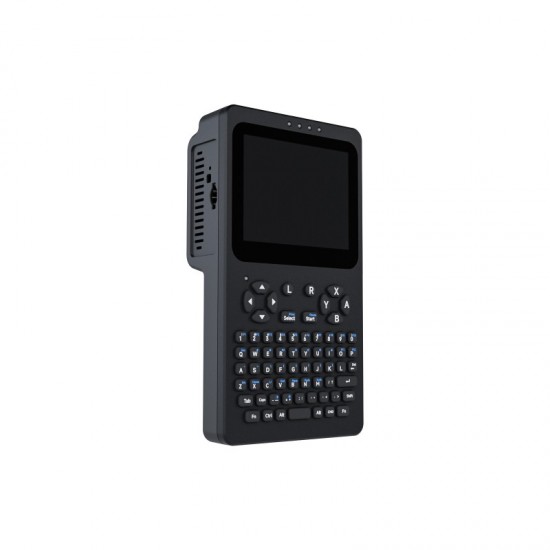

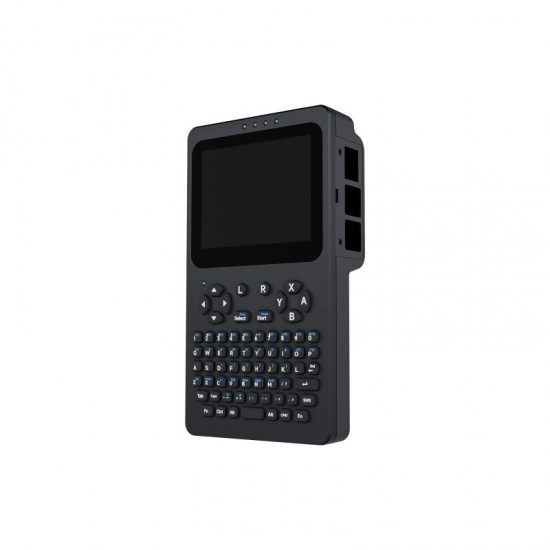

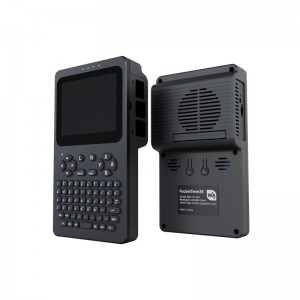

Portable Handheld Linux Terminal With 3.5inch Touch Display, 640 × 480 Resolution, Optical Bonding, Supports Raspberry Pi 5 Portable Development And Debugging Devices [Rpi, SD card, Battery & Power Supply Not Included]

This compact and versatile portable handheld Linux terminal is an ideal solution for developers, engineers, and hobbyists working with Raspberry Pi systems. Featuring a 3.5-inch touch display with a 640 × 480 resolution, it delivers clear visuals and responsive interaction, making on-the-go development and debugging more efficient than ever.

The display utilizes optical bonding technology, which enhances brightness, reduces reflections, and improves durability—ensuring excellent visibility even in challenging environments. Its ergonomic handheld design allows for easy portability, making it perfect for fieldwork, testing, and embedded system diagnostics.

Specifically designed to support Raspberry Pi 5, this terminal provides a convenient interface for programming, monitoring, and troubleshooting without the need for a full desktop setup. It is also compatible with Raspberry Pi 4B, offering flexibility for various projects.

User Manual / Datasheet / Example Codes Etc.

[Rpi, SD card, Battery & Power Supply Not Included]

Click here for ready to use version with Pi5, SD card and Power Supply

Specifications

Compatible board: Supports Raspberry Pi 5
MCU: Built-in RP2040 MCU for controlling functions such as the keyboard, brightness, and volume
Display: 3.5inch 640 × 480 IPS display, supports HDMI interface
Touchscreen: 5-point capacitive touch, optical bonding, G + G toughened glass panel, 6H hardness, I2C header
Audio: Built-in 8Ω 2W speaker, 4PIN PH1.25 header, supports 3.5mm audio output
Keyboard: 67 keys QWERTY silicone keyboard
Power: Supports external USB-C charging port

Built-in 2PIN PH2.0 Batt header, Lithium Batt is optional
UPS power management supports charging and using simultaneously

Power Control: Short press: turn on power

Double click: turn off power

Case material: CNC-machined aluminum front cover

PC + ABS plastic back cover

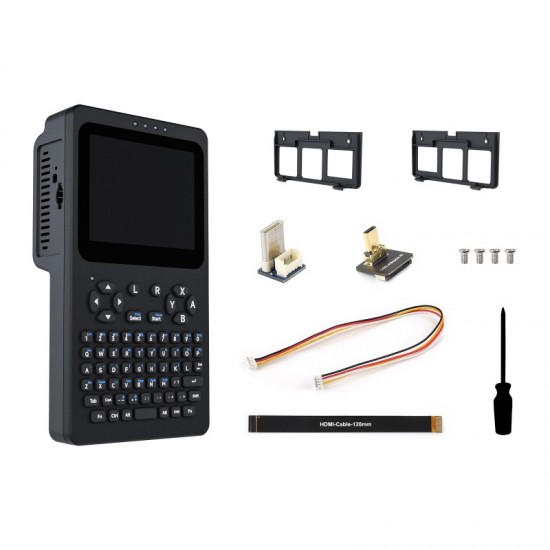

Package Includes

PocketTerm35 host x1
Pi 5 mounting plate x1
Micro HDMI adapter x1
Type-C male port to 4PIN PH1.25 female adapter x1
1.27H 4PIN dual plugs cable (opposite) 20cm x1
HDMI cable 120mm x1
Screws pack x1
Screwdriver x1

Interface Introduction

Dimensions
