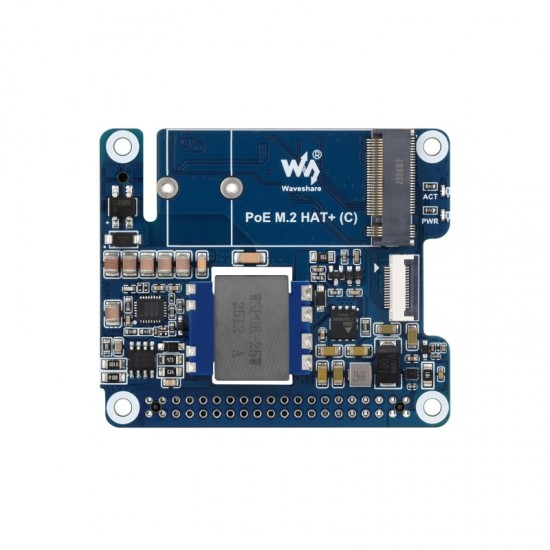

PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading / Writing

PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading / Writing.

The POE M.2 HAT+ is an expansion board for Raspberry Pi 5 that combines two functions: Ethernet Power Supply (PoE) and PCIE to M.2 conversion, supporting the IEEE 802.3af/at network standard. It supports M.2 NVMe hard drives in 2230 and 2242 sizes, and supports SSD boot for the Raspberry Pi.

Features

• Standard Raspberry Pi 40pin GPIO extension header, supports Raspberry Pi 5 (not applicable to PI4B and PI3B)
• Supports Power over Ethernet (PoE), supports IEEE 802.3af/at PoE network standard
• Adopts fully isolated Switch Mode Power Supply (SMPS) mode power
• Supports NVMe protocol M.2 interface hard drives, featuring high-speed read and write, and high work efficiency
• PCI-E×1 Gen2 or Gen3 mode
• Only supports PI5B
• Compatible with M.2 hard drives of 2230 / 2242 sizes
• Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible
• POE planar transformer

Resources

User Manual / Datasheet / Example Codes Etc.

Specifications

• PoE input voltage: 37V ~ 57V DC input
• PoE-GPIO pin header: 5V 5A (MAX)
• Network standard: Supports IEEE 802.3af/at PoE
• Product size: 56.5 x 66.0 (mm)

Package Includes

• PoE M.2 HAT+ (C) × 1
• 2*2PIN header × 1
• 2*20PIN header × 1
• Screws pack × 1
• SSD mounting screw × 1

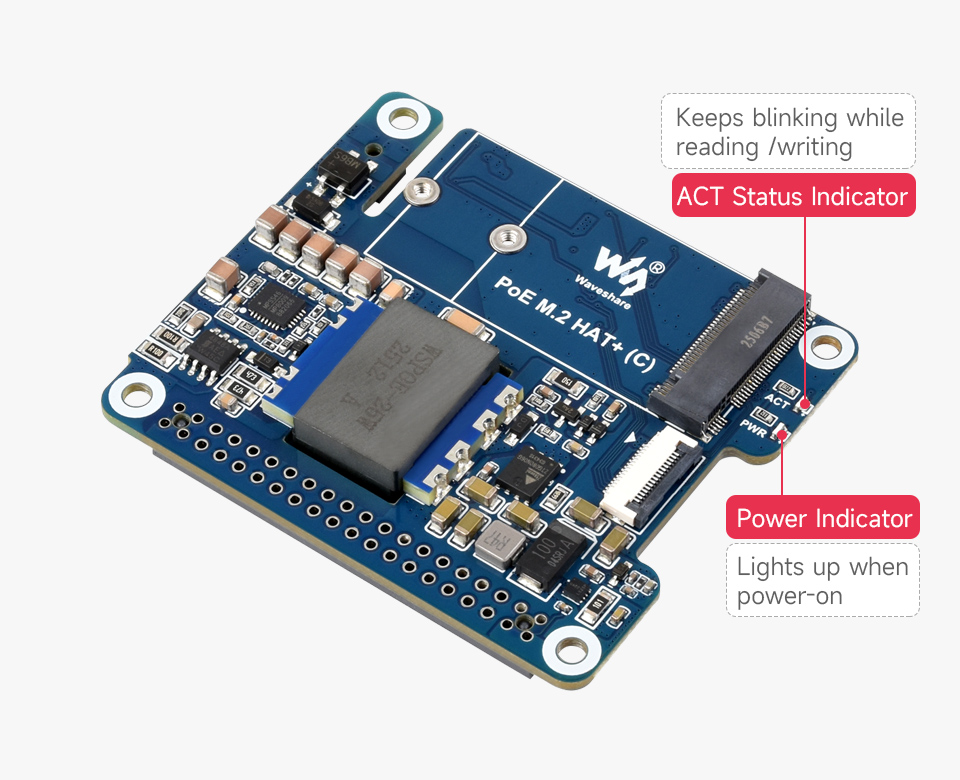

Onboard Peripherals

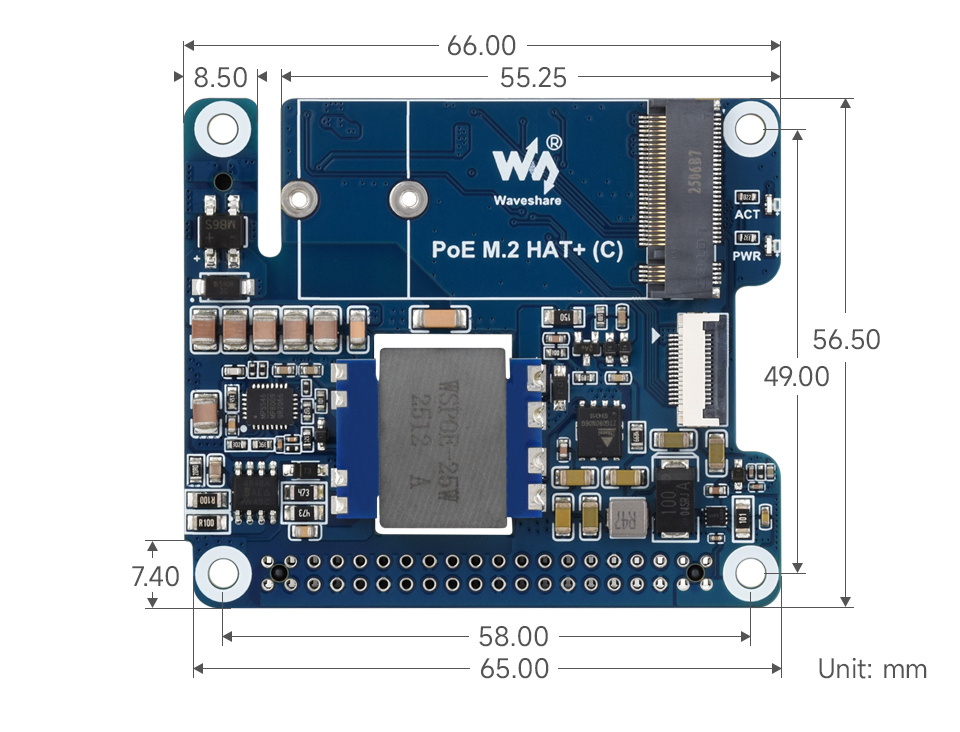

Dimensions
