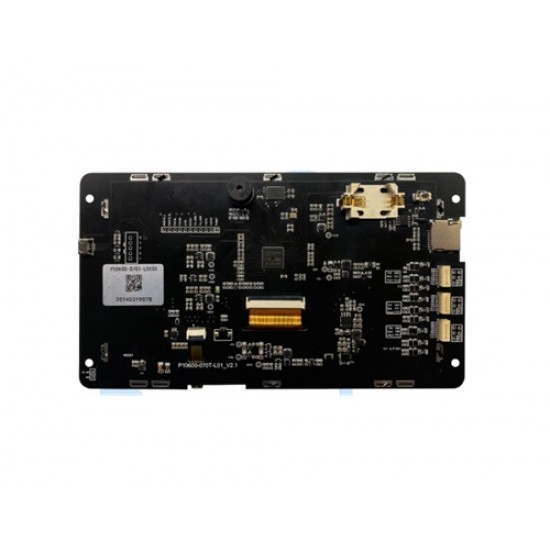

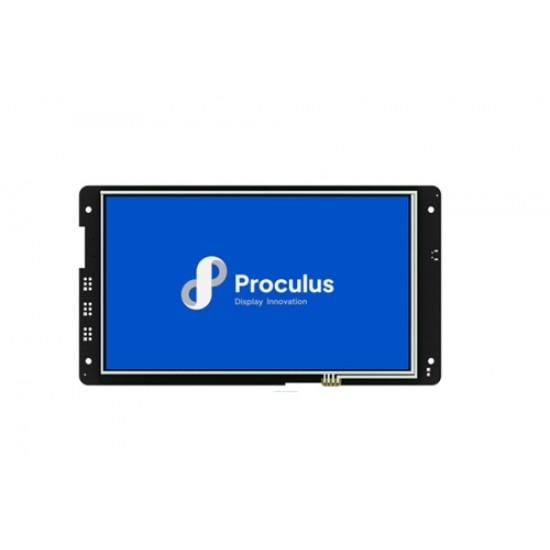

Proculus 7inch Resistive Touch UART HMI Touch Display - 800x480 - 300nits - P80480-070X-L0101
The Proculus P80480-070X-L0101 7-Inch Resistive Touch UART HMI Display is a human-machine interface (HMI) display designed for industrial automation, embedded systems, and electronic control applications. Featuring an 800 × 480 pixel resolution and 300 nits brightness, this display provides clear visual output for monitoring system parameters, displaying data, and controlling connected equipment.
With a resistive touch interface and UART serial communication, the display is suitable for applications requiring touch-based user interaction and serial communication with a microcontroller or embedded controller. Its 7-inch screen offers a practical viewing area for graphical user interfaces, menus, status indicators, and control panels.
The Proculus P80480-070X-L0101 is suitable for engineers, product developers, and manufacturers looking to integrate a dedicated HMI into industrial equipment, instrumentation, smart devices, and custom embedded projects.
Features
- Support wide range of power supply: Default is 4.5~25V
- Support TTL/CMOS, the max baud rate is 3,125 Mbps;
- Support hardware JPG decoding which makes storage more efficient and display quicker;
- Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;
- Support backlight brightness adjustment and automatic standby screen saver function;
- Support multi-language font library, picture, TWO-DIMENSIONAL code display;
- Support number and English input, customizable keyboard interface;
- Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;
- Easy-to-use UnicView GUIs Development, no coding skills required;
- Instant operation when power on without system load time;
- Excellent electromagnetic compatibility characteristics.
Specifications
- Display
- Color: 65K (65536) colors，16 bit color 5R6G5B
- Resolution: 800*480，90° rotated display (480*800)
- Brilliance: 350 cd/m²
- Active area (WxH): 154.1mm(width)×85.9mm(height)
- Backlight Type: 3*6 chips white LED
- Peripherals
- Touchscreen Panel: Resistive
- Buzzer: YES
- RTC: YES. CR2032 battery holder and 3.3V external battery connector.
- Audio: No
- Project Recording: SD Card and Serial Communication.
- Memory: 128MB (total). Expandable via SD Card (FAT32) up to 32 GB.
- Other Info
- Working Temperature:- 20℃~70℃
- Storage Temperature: -30℃~85℃
- Fixation: Drilling for M3 screw
- Carcass: Castless
Package Includes
- 1x Proculus 7inch Resistive Touch UART HMI Touch Display - 800x480 - 300nits - P80480-070X-L0101
