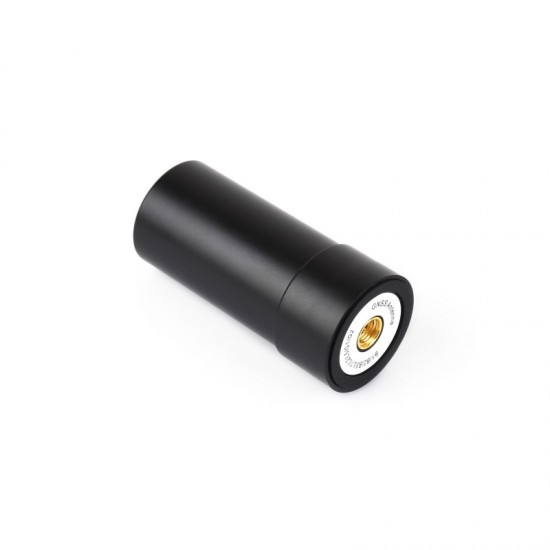

Waveshare Q23 2dB L1+L2+L5 Multi-constellation, Multi-band Quadrifilar Helix Active High-Precision Positioning Helical Antenna, SMA Connector, Supports Multi-GNSS Positioning Systems, IP67 Waterproof
This series of products is a Quadrifilar Helix antenna in structure, features high gain and wide-angle circular polarization characteristics. Compared to traditional antennas, it can receive more low elevation satellite signals to enhance positioning performance, making it suitable for applications such as smart homes, smart agriculture, and high-precision mapping. It is recommended to purchase SMA Magnetic Mount Antenna Base with 3m extension cable, offering flexible installation and compatibility with various GNSS positioning modules.
Features
- Quadrifilar Helix structure with wide-angle circular polarization characteristics, enhancing low-elevation satellite signal reception capability
- High gain and low noise figure design, supports multi-band, multi-system GNSS signal reception
- Compact size and lightweight, with flexible installation, making it suitable for a wide range of devices and application scenarios
- SMA connector, supports RF signal transmission and coaxial DC bias power supply
- IP67 waterproof, suitable for long-term stable operation in outdoor environments
Specifications
- Module: Q25
- Antenna type: Quadrifilar Helix antenna
- Frequency band
- GPS: L1/L2/L5
- BDS: B1/B2a/B2b/B3i
- GLONASS: G1/G2
- Galileo: E1/E5a/E5b
- Gain: 2dB
- haracteristics Impedance: 50Ω
- Polarization: RHCP (Right-Hand Circular Polarization)
- Covering Range: 360°
- Output VSWR: ≤2
- Pear Axial Ratio: ≤3dB
- outline dimensions: 58.70 × Φ27.70 (mm)
- Gain: 37dB
- Noise Figure: < 1.5dB
- Output VSWR: ≤2
- Voltage: 3.3V ~ 16V DC
- Current: 13mA

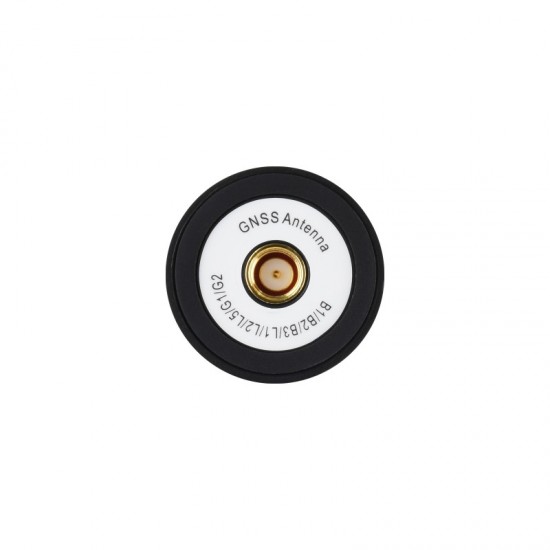

- Connector: SMA male
- Operating & storage temperature: -40℃ ~ +85℃
- Waterproof: IP67
Package Includes
- 1x Q25 GNSS Helical Antenna

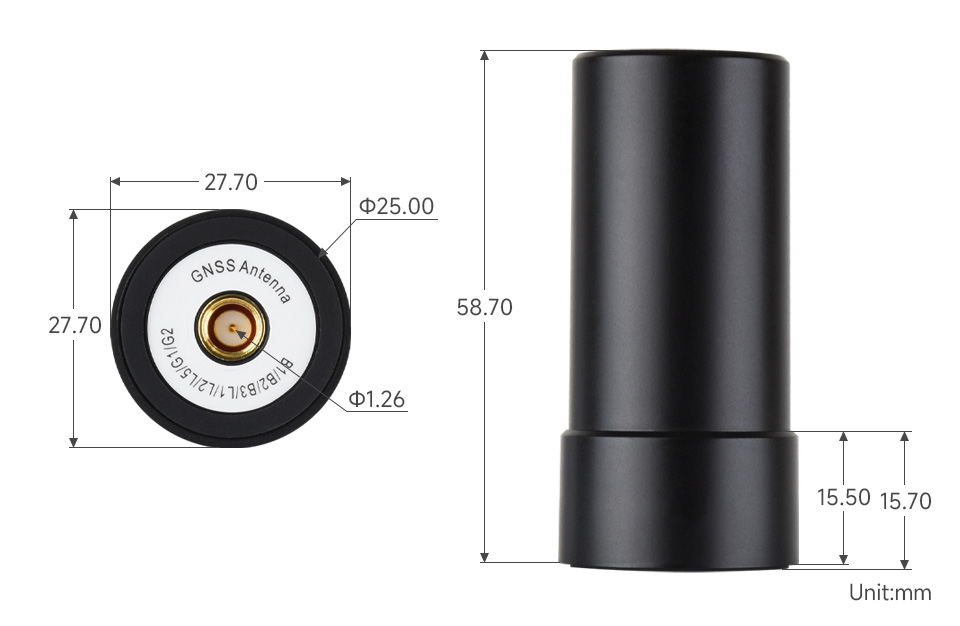

Dimensions
