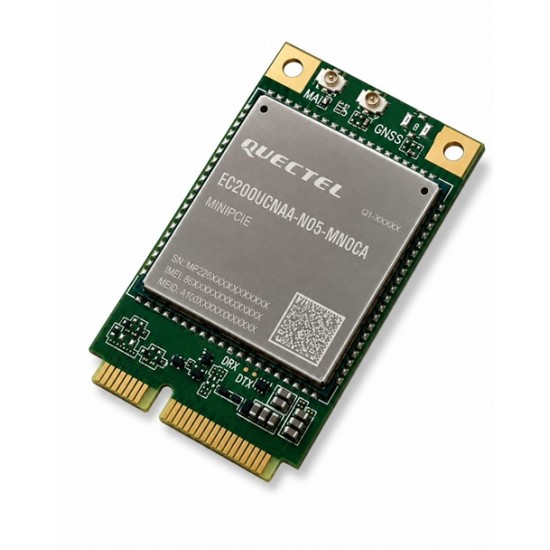

Quectel EC200U-CNAA-N05-MN0CA 4G LTE Cat 1 Mini PCIe Module
The Quectel EC200U-CNAA-N05-MN0CA is a compact 4G LTE Cat 1 Mini PCIe cellular module designed for reliable wireless connectivity in IoT, M2M, industrial, automation, and embedded applications. It supports LTE data rates of up to 10 Mbps downlink and 5 Mbps uplink, making it suitable for applications such as remote monitoring, smart devices, gateways, industrial equipment, and connected terminals.
The EC200U-CN variant is designed for China/India and supports LTE-FDD bands B1/B3/B5/B8 and LTE-TDD bands B34/B38/B39/B40/B41. It features a standard Mini PCIe form factor, enabling easy integration with compatible host platforms and existing designs.
The module provides rich interfaces and features, including USB, UART, analog audio, AT commands, VoLTE, FOTA, and optional GNSS and Wi-Fi scan/Bluetooth functionality depending on the configuration. It operates from a typical 3.8 V supply (3.3–4.3 V) and has a compact 28 × 31 × 2.4 mm form factor.
Features
- 4G LTE Cat 1 cellular connectivity
- Up to 10 Mbps download / 5 Mbps upload
- Standard Mini PCIe form factor
- LTE-FDD: B1/B3/B5/B8
- LTE-TDD: B34/B38/B39/B40/B41
- Designed for China/India cellular networks
- USB and UART interfaces
- VoLTE and analog audio support
- FOTA firmware upgrade support
- Optional GNSS and Wi-Fi Scan/Bluetooth
- Operating temperature: -35°C to +75°C
- Extended temperature: -40°C to +85°C
- Compact 28 × 31 × 2.4 mm design
- Suitable for IoT, M2M, industrial automation, gateways, tracking and remote-monitoring applications
Specifications
- Product Model: Quectel EC200U-CNAA-N05-MN0CA
- Module Type: 4G LTE Cat 1 Cellular Module
- Form Factor: Mini PCIe
- LTE-FDD Bands: B1, B3, B5, B8
- LTE-TDD Bands: B34, B38, B39, B40, B41
- LTE Category: Cat 1
- Download Speed: Up to 10 Mbps
- Upload Speed: Up to 5 Mbps
- Interfaces: USB 2.0, UART
- Supply Voltage: 3.3–4.3 V
- Typical Voltage: 3.8 V
- Dimensions: 28 × 31 × 2.4 mm
- Operating Temperature: -35°C to +75°C
- Extended Temperature: -40°C to +85°C
- Features: VoLTE, FOTA, AT Commands
- Network Type: 4G LTE
Package Includes
- 1x Quectel EC200U-CNAA-N05-MN0CA 4G LTE Cat 1 Mini PCIe Module
