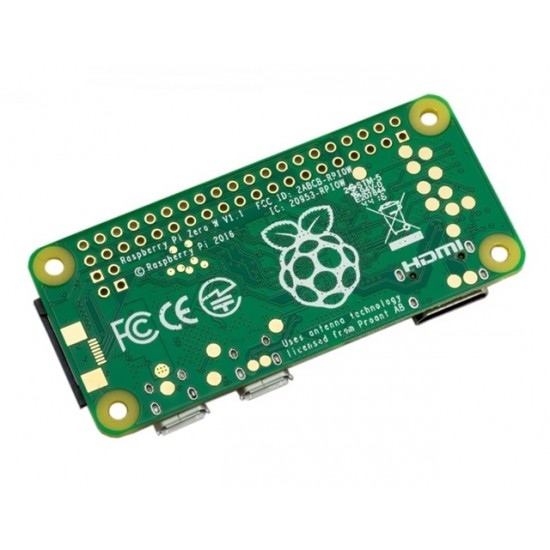

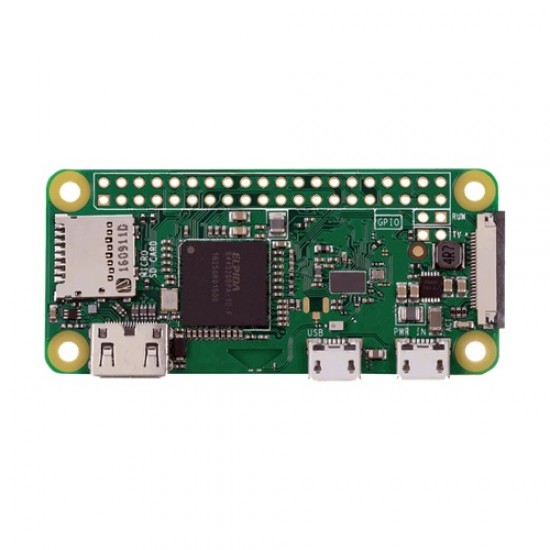

Raspberry Pi Zero Wireless WH with Pre-Soldered GPIO Header
The Raspberry Pi Zero Wireless WH is a compact, low-cost single-board computer that combines the power of the Raspberry Pi Zero W with a factory-fitted 40-pin GPIO header, making it ideal for rapid prototyping, embedded systems, and IoT applications. Powered by a 1GHz single-core Broadcom BCM2835 processor and 512MB RAM, it features built-in 2.4GHz Wi-Fi and Bluetooth 4.1 (BLE) for seamless wireless connectivity.
With the pre-soldered GPIO header, the Raspberry Pi Zero WH is ready to connect directly to HATs, sensors, displays, and other GPIO-compatible accessories without requiring soldering. Its ultra-compact form factor makes it perfect for portable electronics, home automation, robotics, wearable devices, and educational projects.

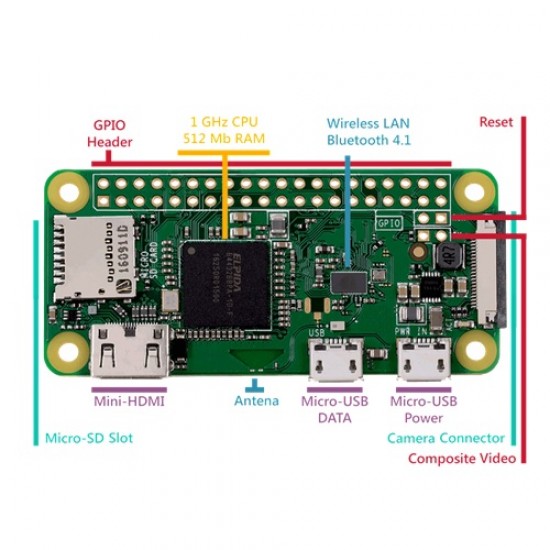

Features

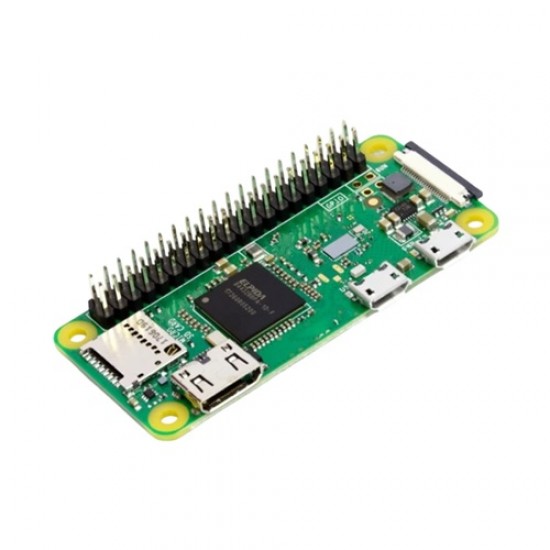

- Factory pre-soldered 40-pin GPIO header
- 1GHz Broadcom BCM2835 single-core ARM11 processor
- 512MB LPDDR2 SDRAM
- Built-in 2.4GHz 802.11 b/g/n Wi-Fi
- Bluetooth 4.1 with Bluetooth Low Energy (BLE)
- Mini HDMI port supporting up to 1080p video output
- Micro USB OTG port for peripherals
- Micro USB power input
- CSI camera connector for Raspberry Pi Camera Module
- microSD card slot for operating system and storage
- Compact size of only 65 × 30 mm
- Compatible with Raspberry Pi OS and a wide range of Linux distributions
Specifications
- Processor: Broadcom BCM2835, 1GHz Single-Core ARM11
- Memory: 512MB LPDDR2 SDRAM
- Wireless: 2.4GHz IEEE 802.11 b/g/n Wi-Fi
- Bluetooth: Bluetooth 4.1 + BLE
- GPIO: 40-pin pre-soldered header
- Video Output: Mini HDMI (1080p)
- USB: 1 × Micro USB OTG, 1 × Micro USB Power
- Camera Interface: CSI Camera Connector
- Storage: microSD Card
- Operating System: Raspberry Pi OS, Ubuntu, DietPi and other Linux distributions
- Dimensions: 65 × 30 × 5 mm
Applications
- IoT and Smart Home Projects
- Robotics and Automation
- Industrial Monitoring
- Embedded Linux Development
- Wireless Sensor Nodes
- DIY Electronics Projects
- Portable Computing
- Home Automation Gateways
- Educational Programming and STEM Learning
- Raspberry Pi HAT Development
Package Includes
- 1x Raspberry Pi Zero Wireless WH with Pre-Soldered GPIO Header
