Power Over Ethernet Expansion Board For RDK X5, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at Network Standard
₹1,805.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 15
B2B GST Credit Available
Price in reward points: 1530
- Stock: 0 in Stock
- SKU: 29927
- Delivery Time
- Bulk & B2B RFQ

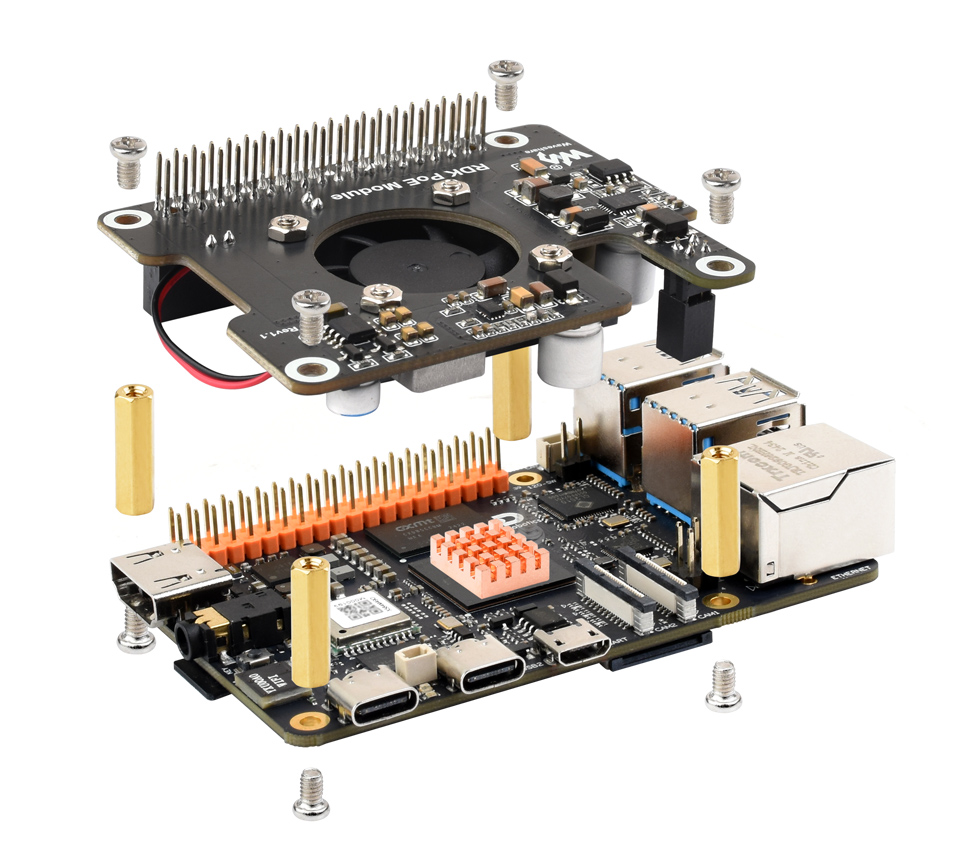

This is a 802.3af/at-compliant Power Over Ethernet accessory for the RDK X5 development board. By using this module and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your RDK X5 in only one Ethernet cable.
Features
- Standard 40PIN GPIO header, suitable for D-Robotics RDK X5 development board
- PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant
- Fully isolated switched-mode power supply (SMPS)
- Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
Specifications
| PoE power input | 38V~57V DC in | |
|---|---|---|
| Power output | GPIO header 5V 4.5A (MAX) | |
| 2pin header 12V 2A (MAX) | ||
| Outline dimensions | 56.5 × 70.0 (mm) | |
| network standard | IEEE 802.3af/at PoE | |
Package Contents
- RDK PoE Module × 1
- Heatsink × 1
- Screws pack × 1
Resources
User Manual / Datasheet / Example Codes Etc.
Installation Guide
Dimensions
