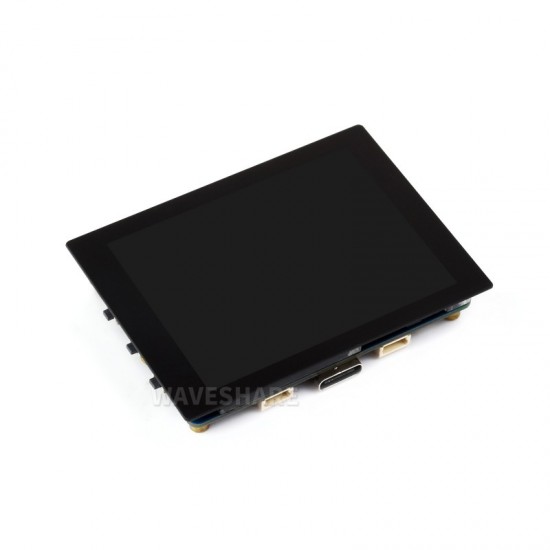

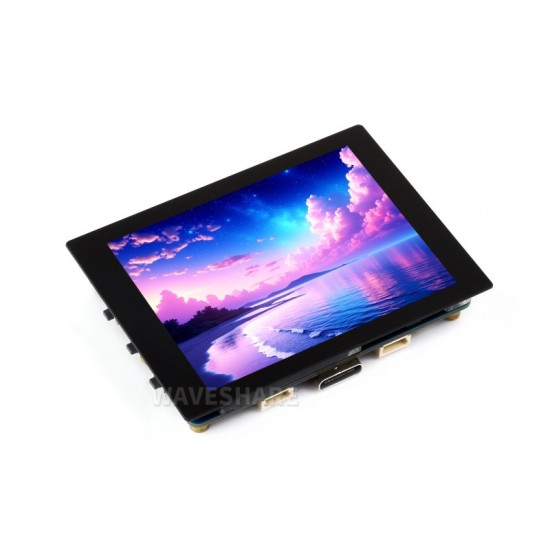

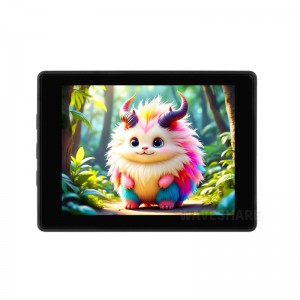

RP2350 2.41inch AMOLED Touch Display Development Board, 450 × 600 Pixels, QSPI Interface, Dual-core & Dual-architecture Design, Accelerometer And Gyroscope Sensor - Without Case

RP2350-Touch-AMOLED-2.41 is a high-performance and highly integrated MCU board designed by Waveshare. Despite its compact size, it integrates a 2.41inch capacitive HD AMOLED, a RTC, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), a TF card slot and other peripherals on board for easy development and embedding into the product.

User Manual / Datasheet / Example Codes Etc.

Features

RP2350B microcontroller chip designed by Raspberry Pi
Unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz, supporting flexible switching between the two architectures
Built-in 520KB of SRAM, 16MB of on-chip Flash and 2MB of PSRAM
Type-C connector, easier to use

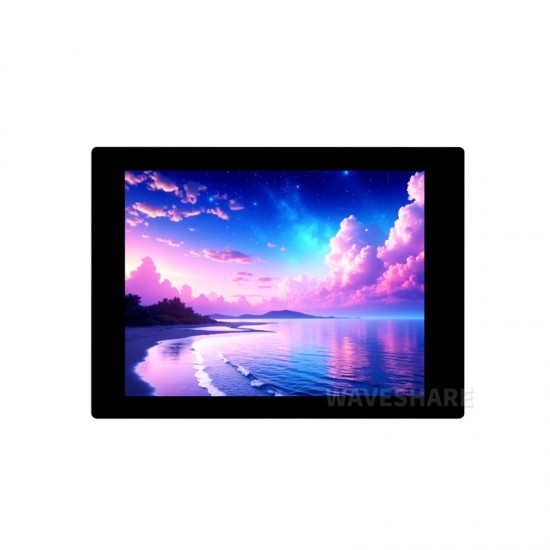

Onboard 2.41inch HD capacitive touch AMOLED screen with a resolution of 450×600, 16.7M colors for clear color pictures
Embedded with RM690B0 driver chip and FT6336 capacitive touch chip, communicating through QSPI and I2C interfaces respectively
Onboard Lithium battery recharge/discharge header, suitable for mobile devices
USB1.1 host and slave device support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
21 × multi-function GPIO pins
2 × I2C, 2 × UART, 6 × 12-bit ADC and 15 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
On-chip accelerated floating-point library
12 × Programmable I/O (PIO) state machines for custom peripheral support

Specifications

Display Size: 2.41inch
Display Panel: AMOLED
Resolution: 450 × 600 pixels
Display Colors: 16.7M
Brightness: 800 cd/㎡
Contrast Ratio: 100000:1
Communication Interface: QSPI
Driver IC: RM690B0
Touch: Supported
Touch IC: FT6336

Package Includes

RP2350-Touch-AMOLED-2.41 × 1
SH1.0 4PIN cable × 2

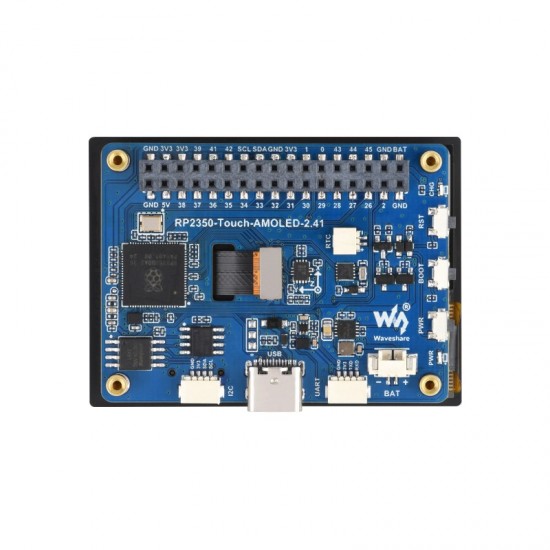

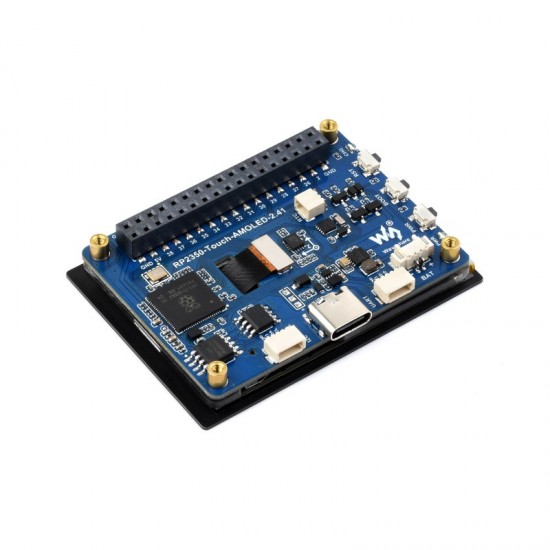

What's On Board

Pin Definition

adapting multiple GPIO interfaces, more convenient for development, offers strong flexibility

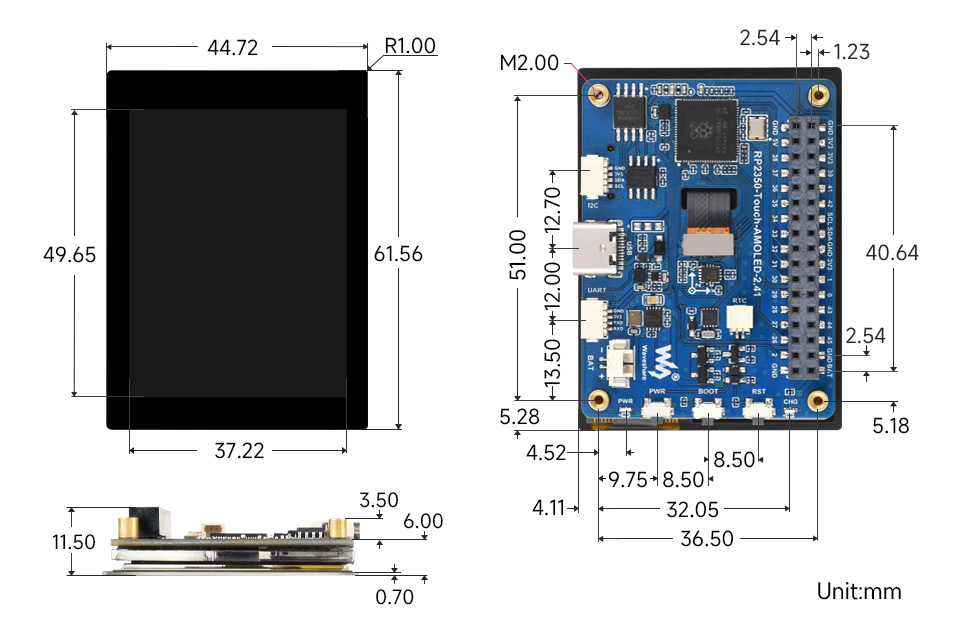

Dimensions
