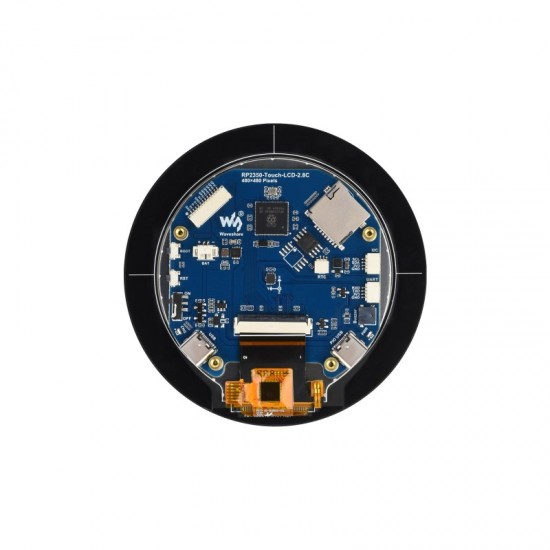

RP2350 2.8inch Round Display Development Board, 480×480, Based On The Raspberry Pi RP2350B Dual-core & Dual-architecture Microcontroller, RGB Interface

RP2350-Touch-LCD-2.8C is a high-performance, highly integrated MCU board designed by Waveshare. Integrates high-capacity Flash, with onboard 2.8inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other RP2350 applications.

User Manual / Datasheet / Example Codes.

Features

RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
520KB of SRAM, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansion

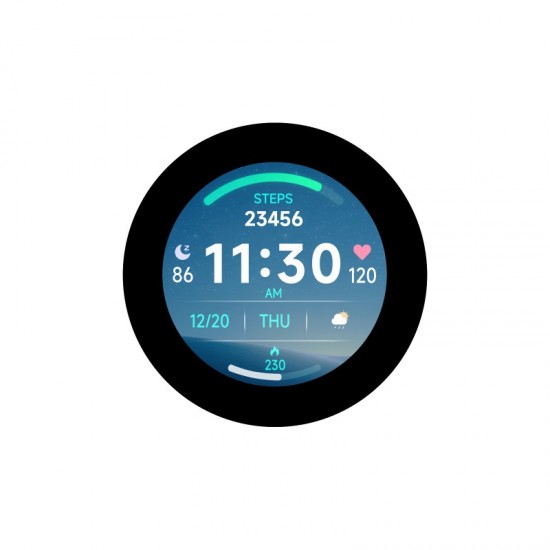

Onboard 2.8inch LCD display, 480×480 resolution
Supports touch control via I2C interface, with interrupt support
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 × Programmable I/O (PIO) state machines for custom peripheral support

Specifications

Size: 2.8 inch
Display Panel: IPS Display
Resolution: 480 × 480
Contrast Ratio: 1200:1
Communication Interface: RGB
Driver IC: ST7701
Touch Interface: I2C
Touch IC: GT911

Package Includes

RP2350-Touch-LCD-2.8C x1
SH1.0 12PIN cable ~100mm ×1
SH1.0 4PIN cable ~100mm ×2

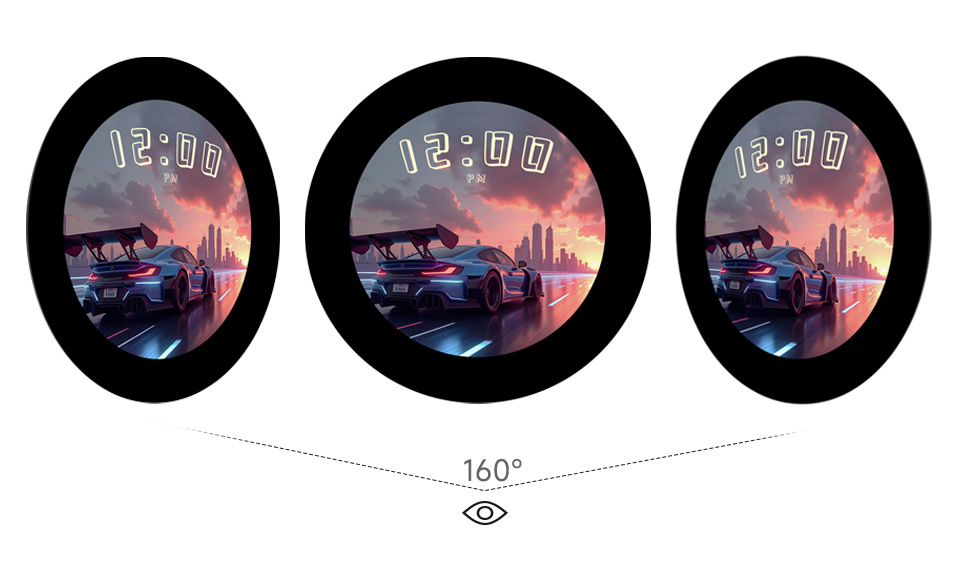

IPS Display Panel

Excellent display performance, 160° viewing angle

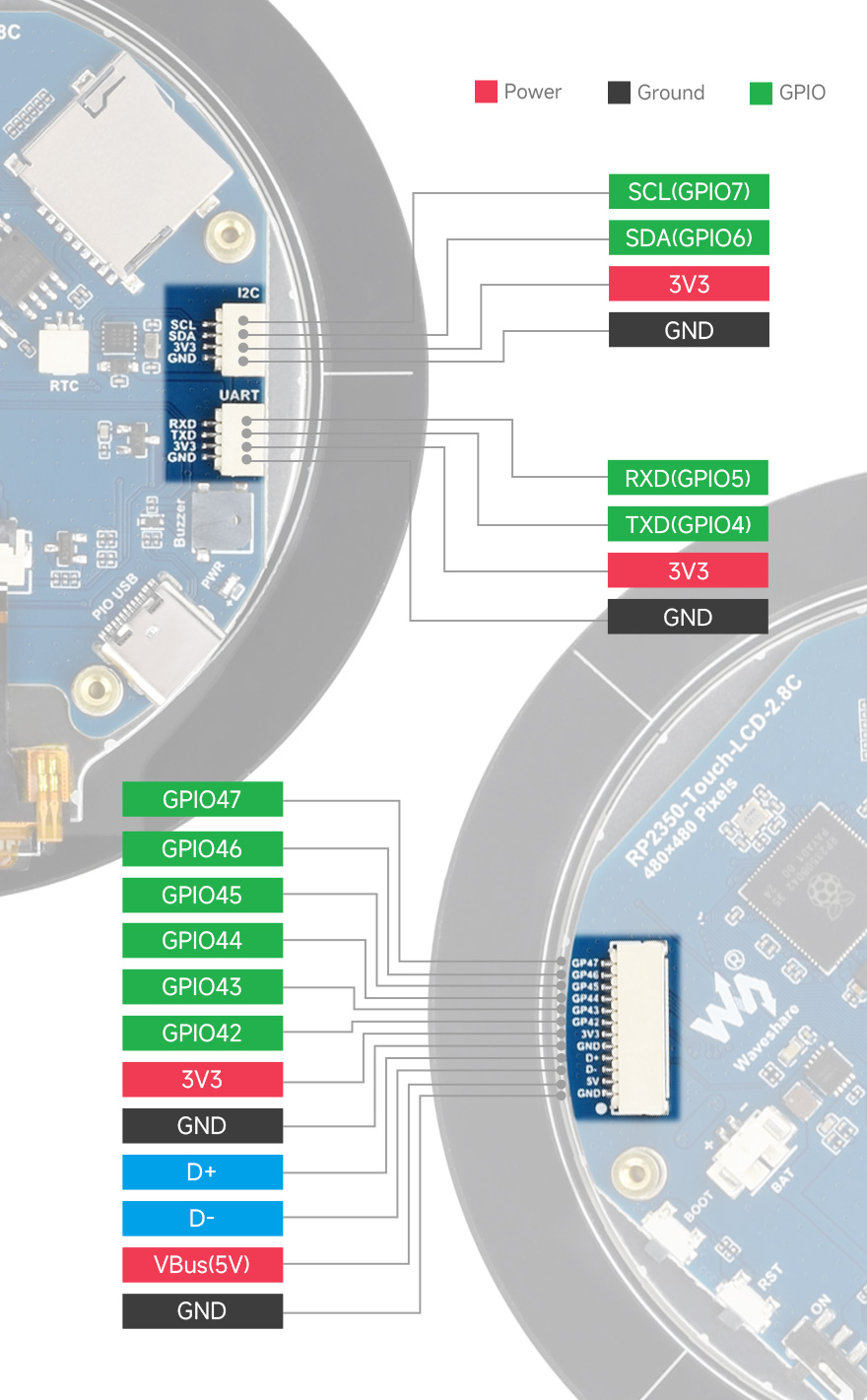

Supports multiple peripherals

Supports the expansion of multiple peripherals via GPIO, UART, and I2C interfaces, etc.

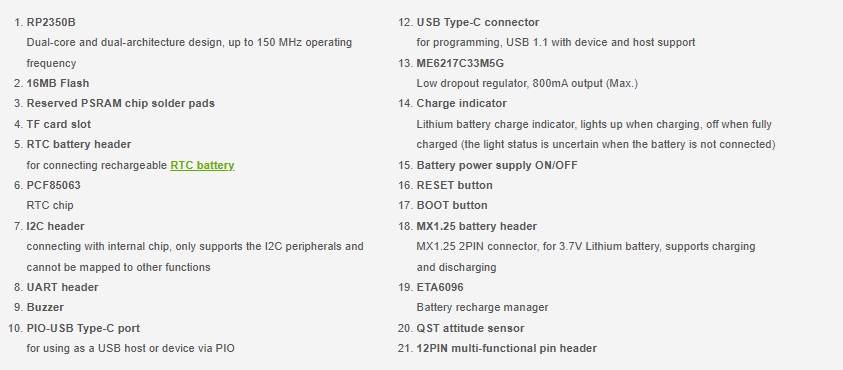

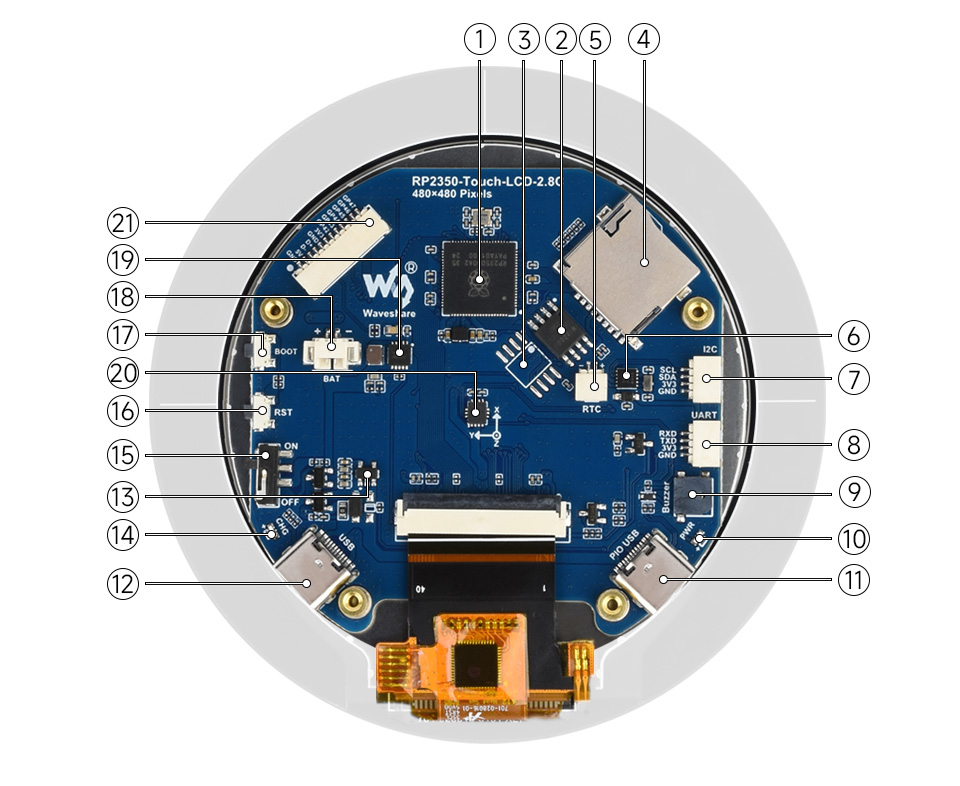

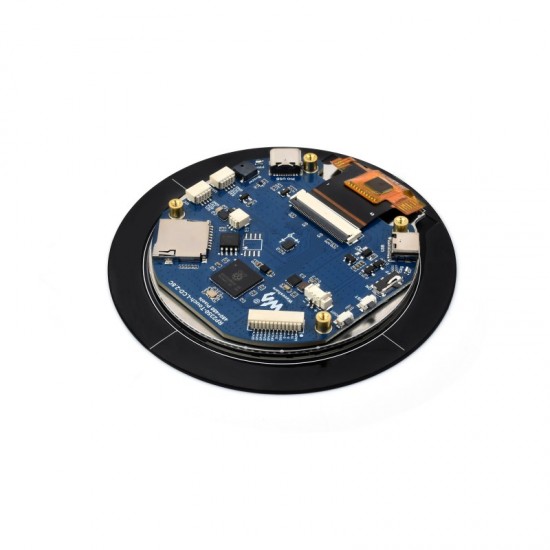

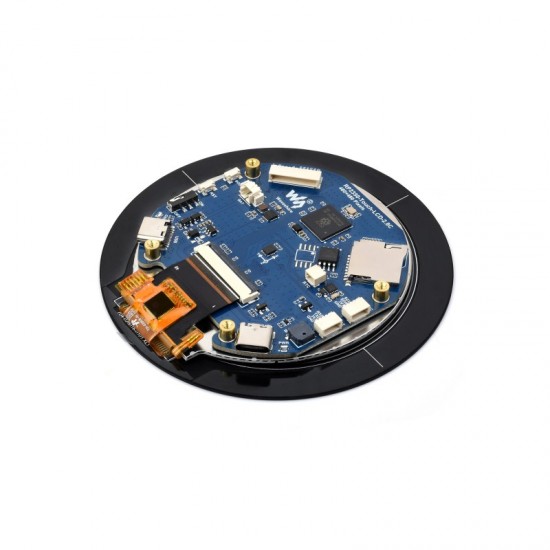

What's On Board

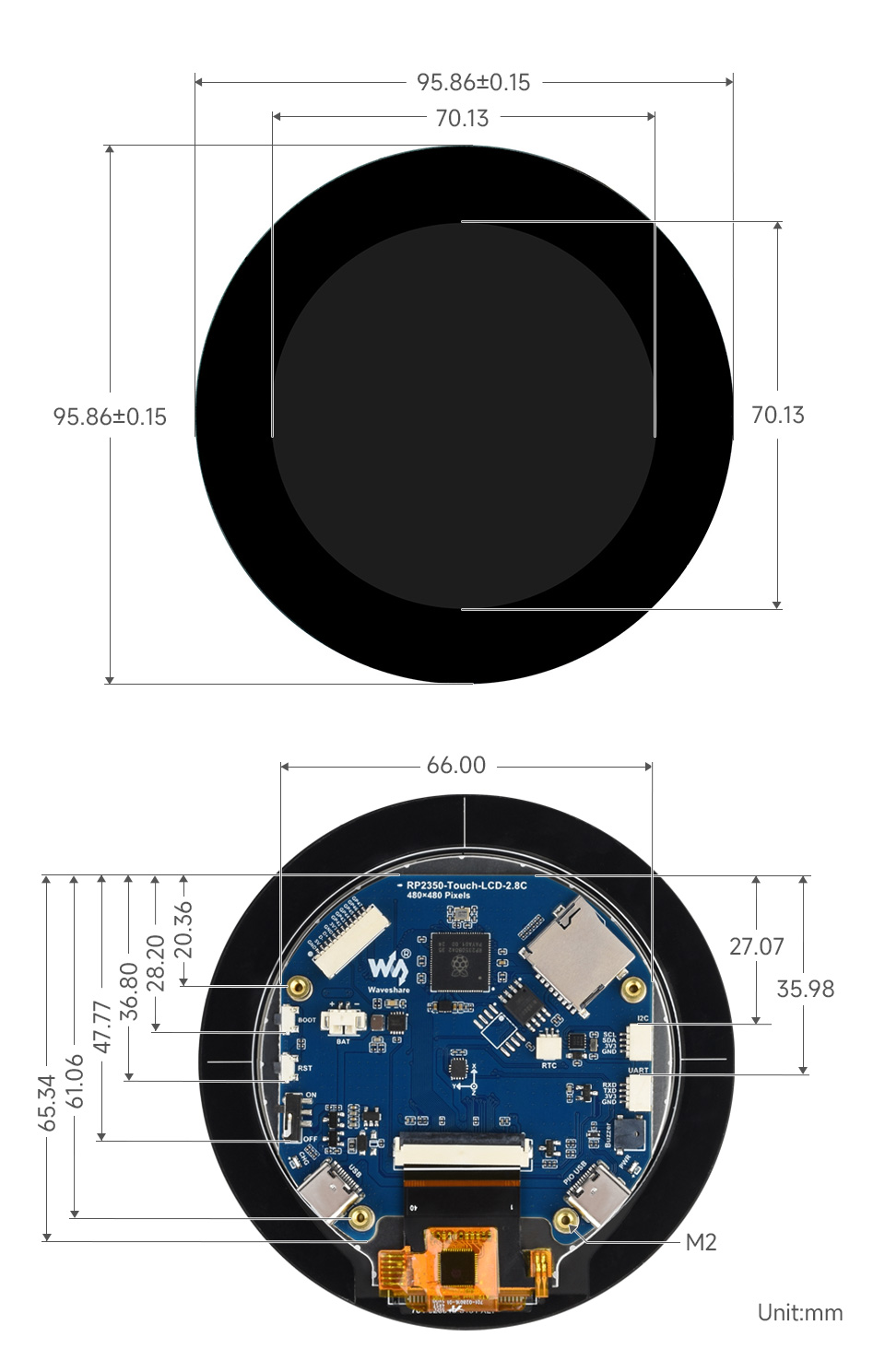

Outline dimensions
