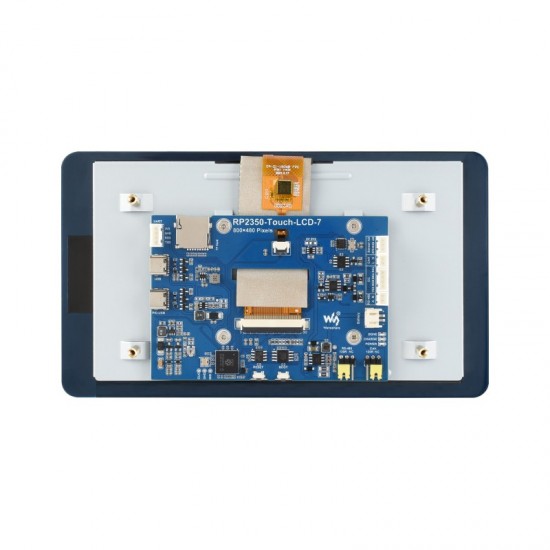

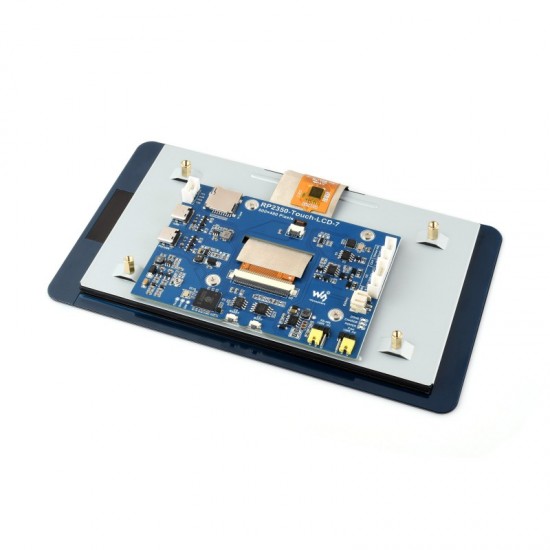

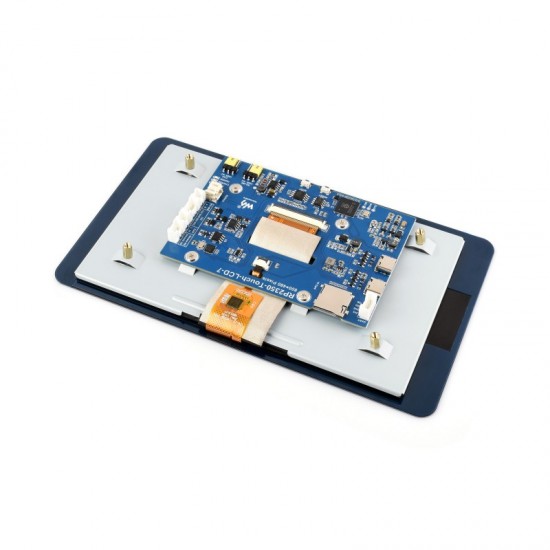

RP2350 7inch Capacitive Touch LCD Development Board, 800 × 480 Resolution, 65K Color, Supports Dual-core And Dual-architecture

This product is a high-performance, highly integrated microcontroller development board independently designed by Waveshare. In a smaller board size, the board is equipped with a 7inch capacitive HD LCD screen, PIO-USB, TF card slot and other peripherals, making it easy to develop and embed into products.

User Manual / Datasheet / Example Codes Etc.

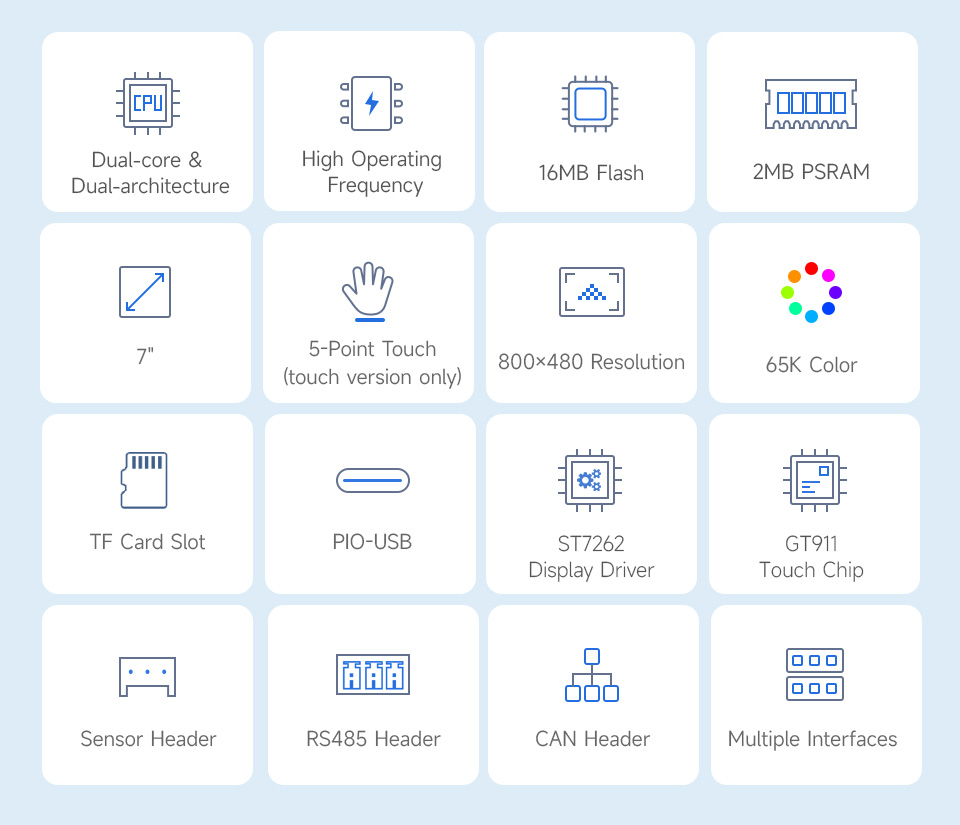

Features

RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
Built in 520KB Static RAM, with onboard 16MB Flash and 2MB PSRAM
Type-C port for easier use

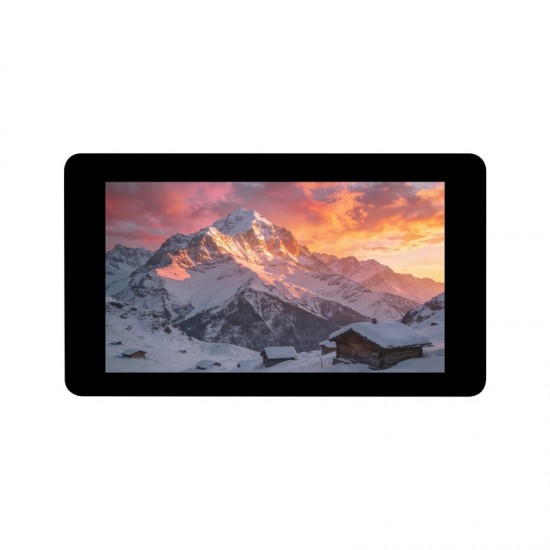

Onboard 7inch capacitive touch LCD, 800 × 480 resolution, 65K color
Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
Onboard Sensor, CAN, RS485, I2C and UART interfaces, etc.
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Accurate clock and timer on-chip
Built-in temperature sensor for real-time monitoring of chip temperature
12 × programmable I/O (PIO) state machines for custom peripheral support

Package Includes

RP2350-Touch-LCD-7 x1
HY2.0 2PIN to 2PIN male cable ~10cm ×2
HY2.0 3PIN to 3PIN male cable ~10cm ×1
HY2.0 4PIN to 4PIN male cable ~10cm ×2
Screws pack x1

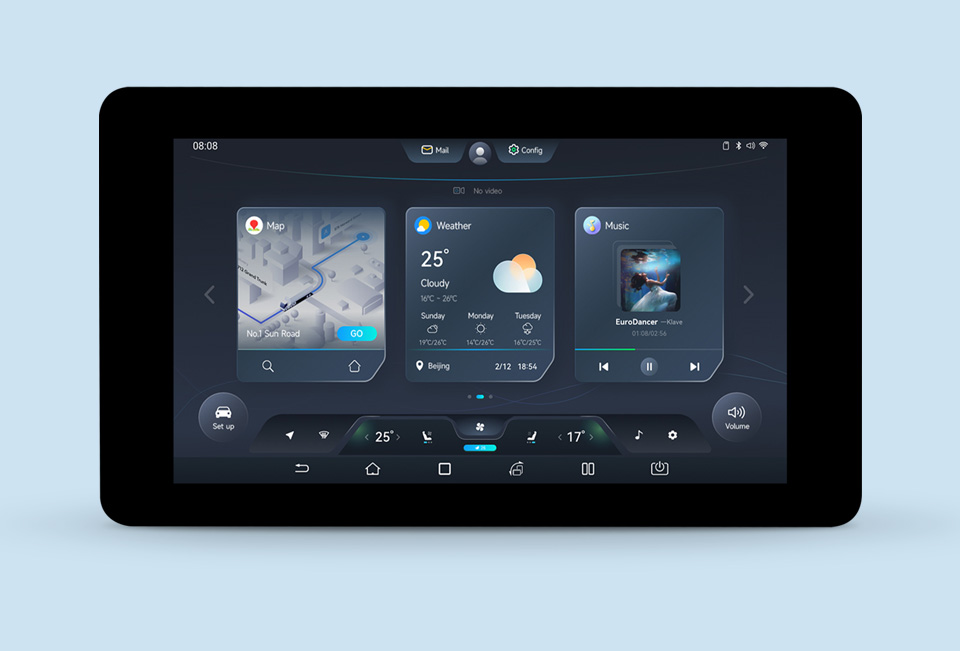

IPS Display Panel

Excellent display performance, 170° viewing angle

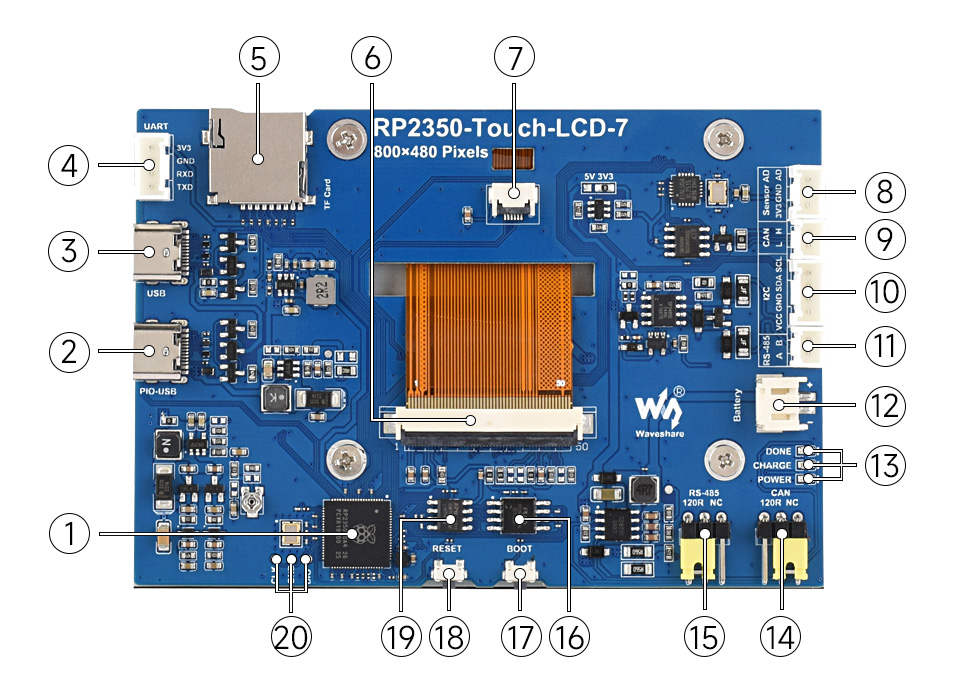

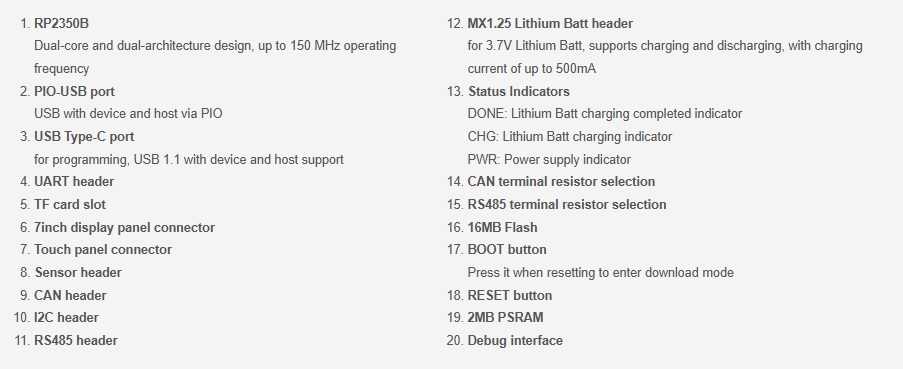

What's On Board

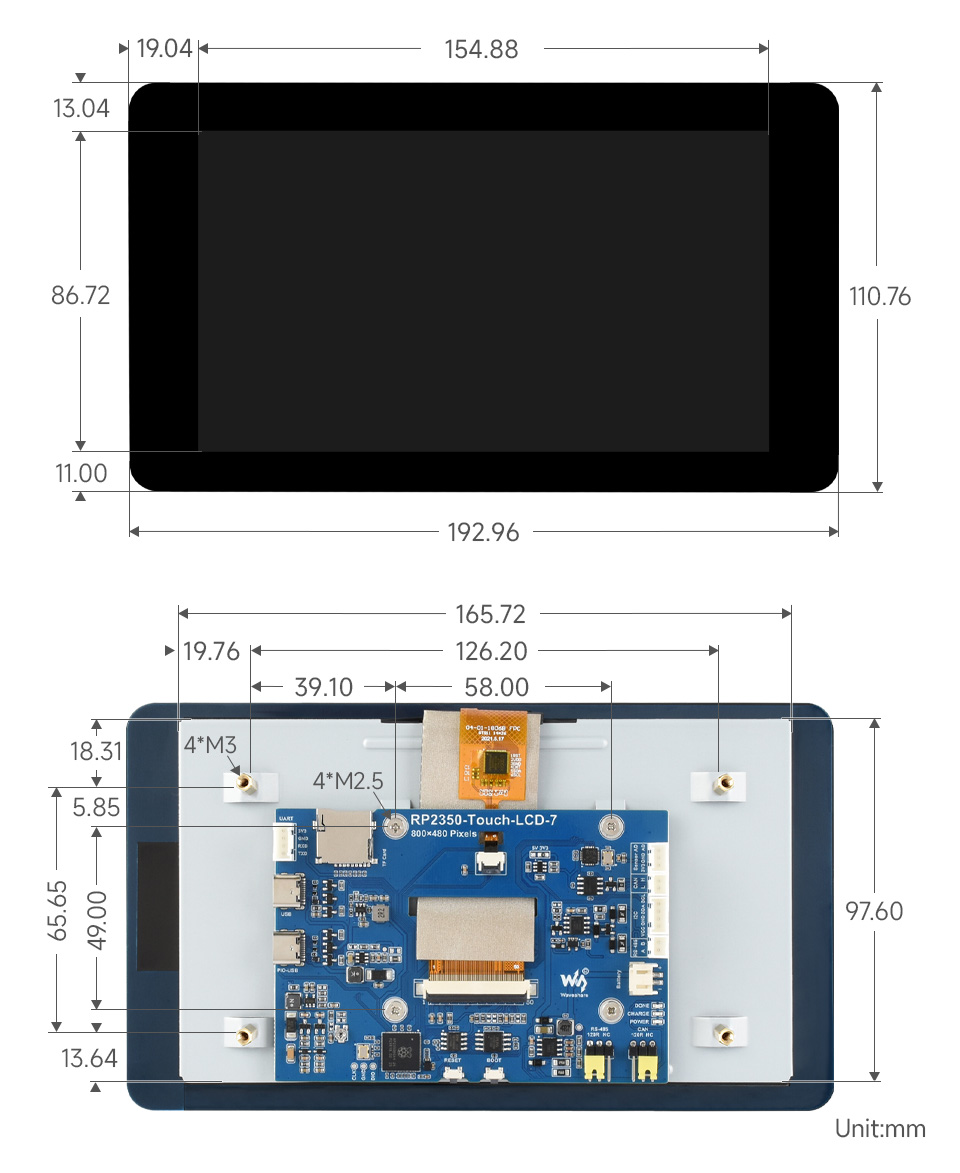

Dimensions
