Waveshare RP2350-Zero-CM Mini Development Board, Dual-core And Dual-architecture, Onboard Type-C Male Port, Castellated Module, 12 × Programmable I/O (PIO) State Machines

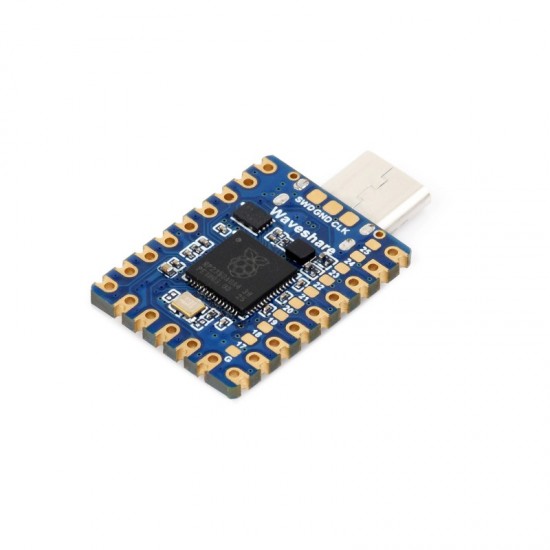

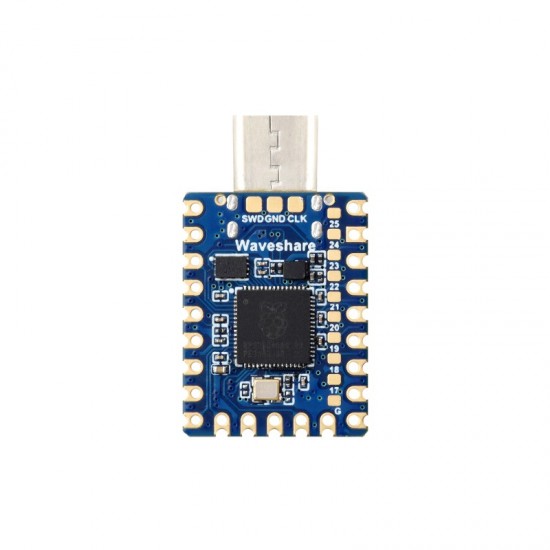

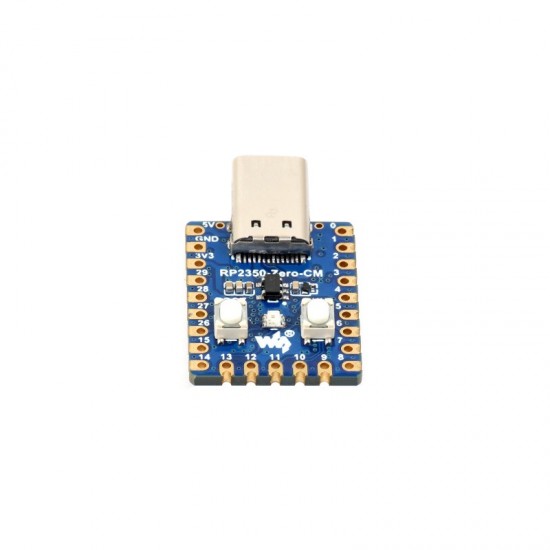

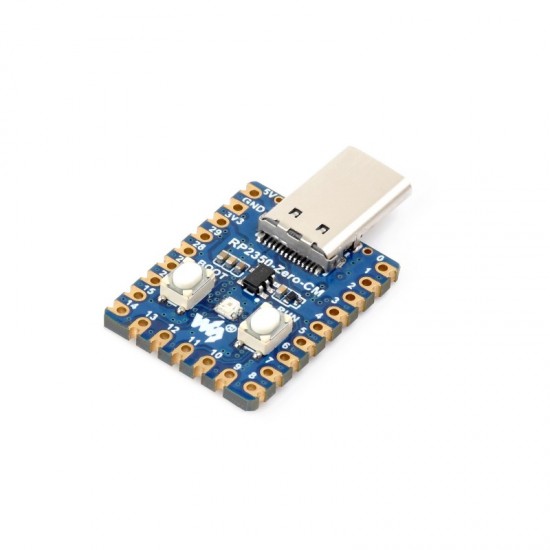

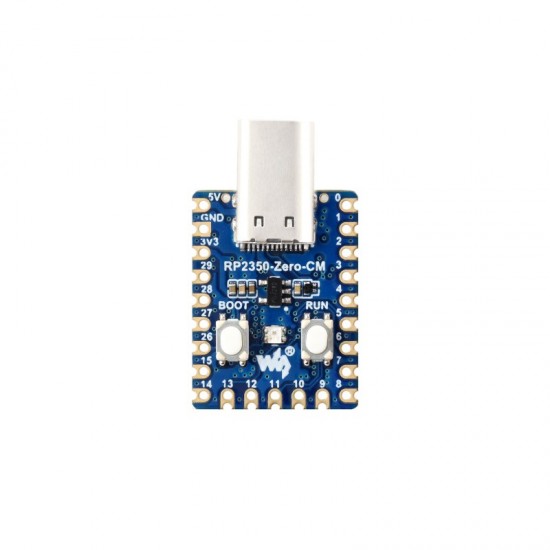

The Waveshare RP2350-Zero-CM is an ultra-compact, high-performance development board based on the advanced Raspberry Pi RP2350A microcontroller. Designed for embedded applications, rapid prototyping, and custom hardware integration, this board features a dual-core, dual-architecture processor supporting both Arm Cortex-M33 and Hazard3 RISC-V cores, delivering exceptional flexibility and processing performance up to 150MHz.

Its castellated module design allows direct surface-mount soldering onto carrier boards, making it ideal for space-constrained products and commercial deployments. The onboard Type-C male USB connector enables convenient programming and power delivery without requiring additional adapters. The board includes 520KB SRAM, onboard Flash memory, multiple communication interfaces, and 12 Programmable I/O (PIO) state machines for creating custom peripheral interfaces and handling complex timing-sensitive tasks.

User Manual / Datasheet / Example Codes Etc.

Features

Raspberry Pi RP2350A dual-core microcontroller
Dual-architecture support: Arm Cortex-M33 and Hazard3 RISC-V
Up to 150MHz operating frequency
520KB SRAM and onboard Flash memory
Onboard USB Type-C male connector
Castellated module for easy PCB integration
12 Programmable I/O (PIO) state machines
USB 1.1 host and device support
Multiple interfaces: SPI, I2C, UART, ADC, PWM
Onboard temperature sensor
Supports C/C++, MicroPython, and Arduino IDE
Compact form factor for embedded and IoT applications

specifications

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor or dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
520KB Static RAM, and onboard 4MB Flash memory
Type-C male port design
Supports power supply via Type-C port (PD compatible)
Castellated module allows soldering directly to carrier boards
USB1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
29 × multi-function GPIO pins (20 × via edge pinout, others via solder points)
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Built-in temperature sensor for real-time monitoring of chip temperature
12 × Programmable I/O (PIO) state machines for custom peripheral support

Package Includes

1x RP2350-Zero-CM

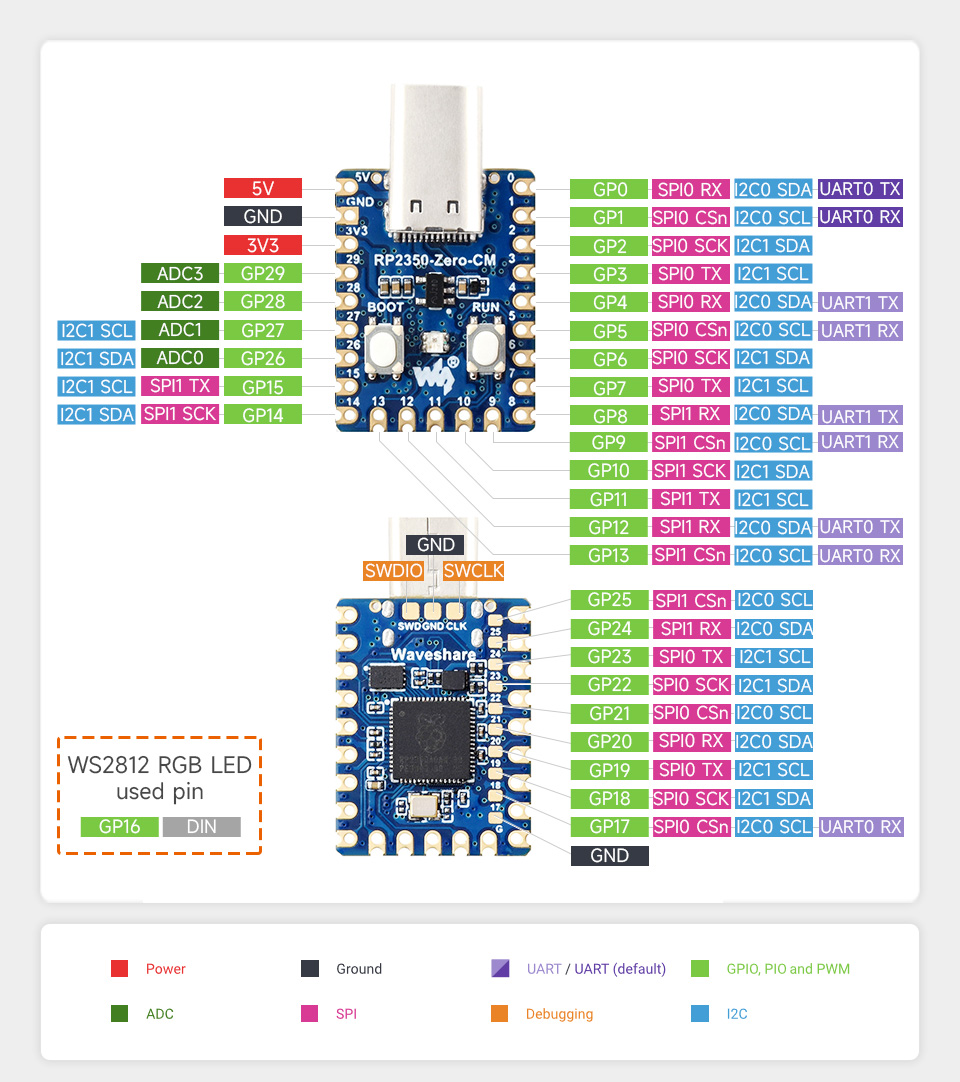

29 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

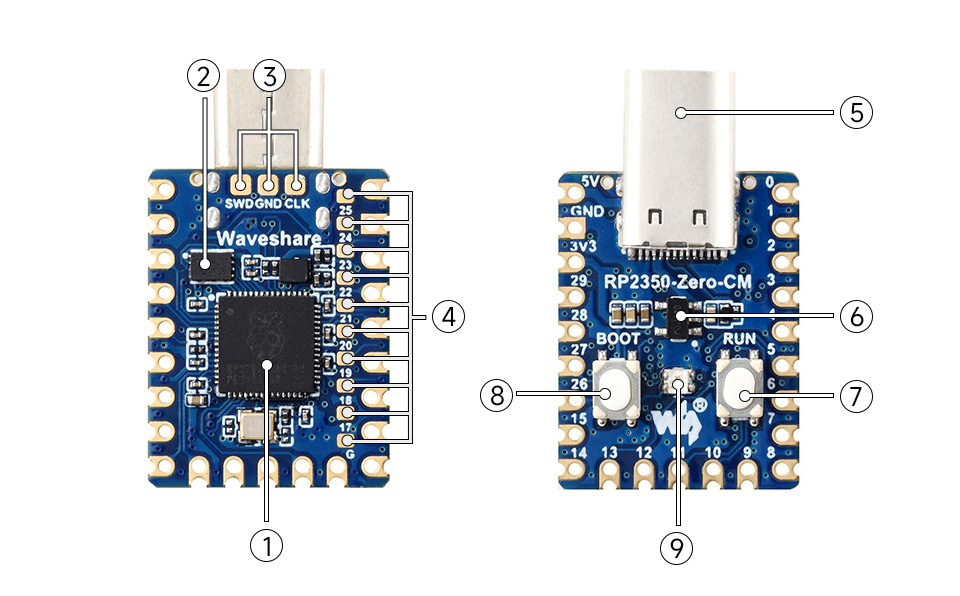

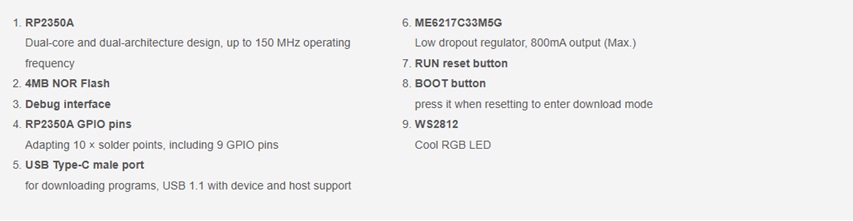

What's On Board

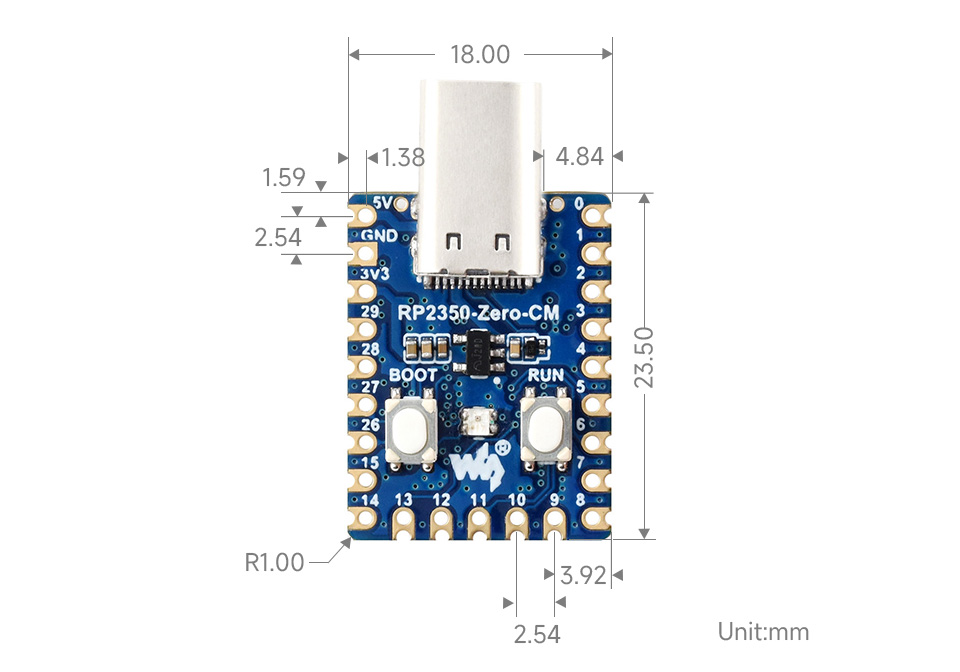

Dimensions
