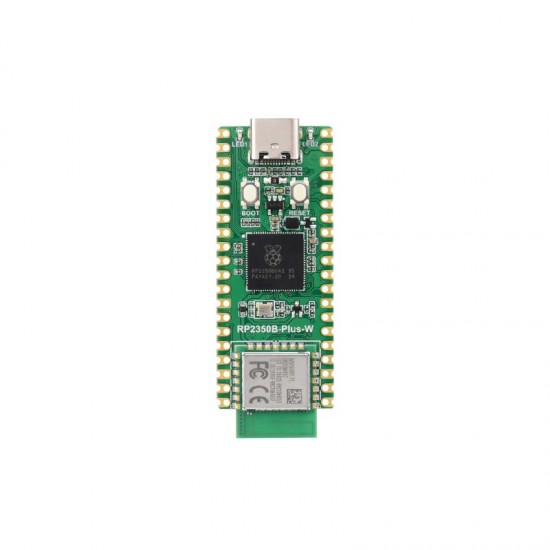

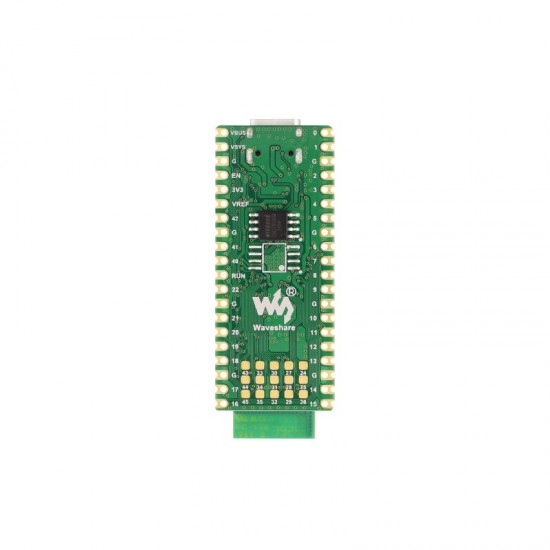

Name: Waveshare RP2350B-Plus-W Development Board, Raspberry Pi RP2350B Dual-core & Dual-architecture Microcontroller, Supports Wi-Fi and Bluetooth, 520KB SRAM And 16MB Flash Memory
Brand: WaveShare Electronics
Price: 1299.00 INR
Availability: InStock

Waveshare RP2350B-Plus-W Development Board, Raspberry Pi RP2350B Dual-core & Dual-architecture Microcontroller, Supports Wi-Fi and Bluetooth, 520KB SRAM And 16MB Flash Memory

WaveShare Electronics

Waveshare RP2350B-Plus-W Development Board, Raspberry Pi RP2350B Dual-core & Dual-architecture Microcontroller, Supports Wi-Fi and Bluetooth, 520KB SRAM And 16MB Flash Memory

Based on 0 reviews. - Write a review

₹1,299.00

₹1,100.85 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 11
B2B GST Credit Available

Price in reward points: 1100

Stock: 1 in Stock
SKU: 32048
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

Waveshare RP2350B-Plus-W Development Board, Raspberry Pi RP2350B Dual-core & Dual-architecture Microcontroller, Supports Wi-Fi and Bluetooth, 520KB SRAM And 16MB Flash Memory

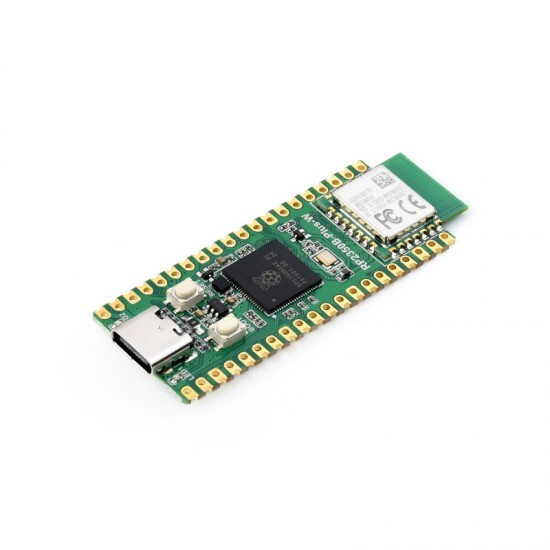

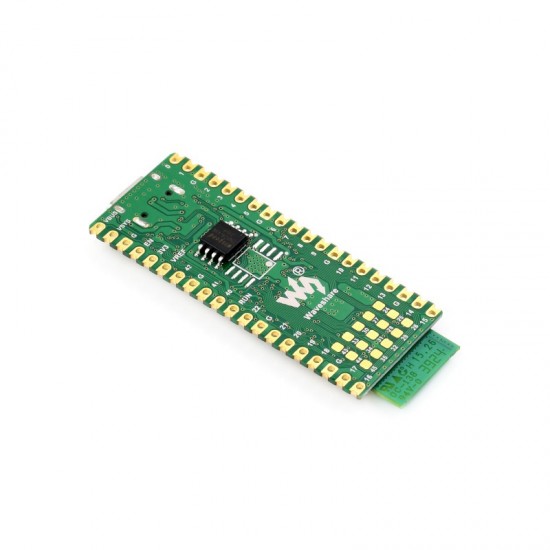

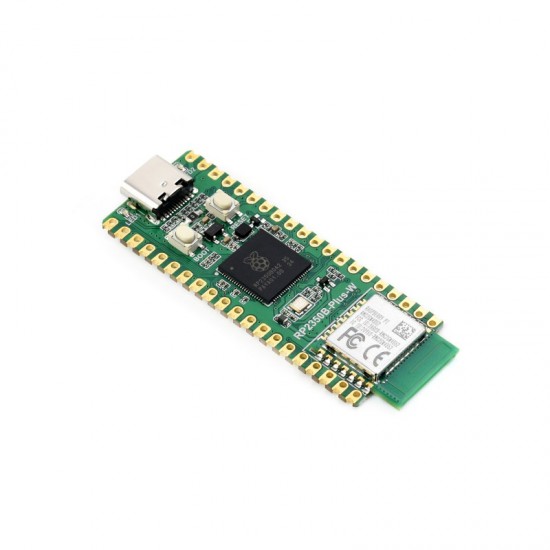

RP2350B-Plus-W is a tiny size, low-cost, high-performance MCU board designed by Waveshare. Based On Raspberry Pi RP2350B microcontroller, equipped with the Raspberry Pi Radio Module 2, integrated with 16MB Flash memory and reserved solder pads for PSRAM chip expansion, which makes it easy for you to develop and integrate into products quickly.

User Manual / Datasheet / Example Codes Etc.

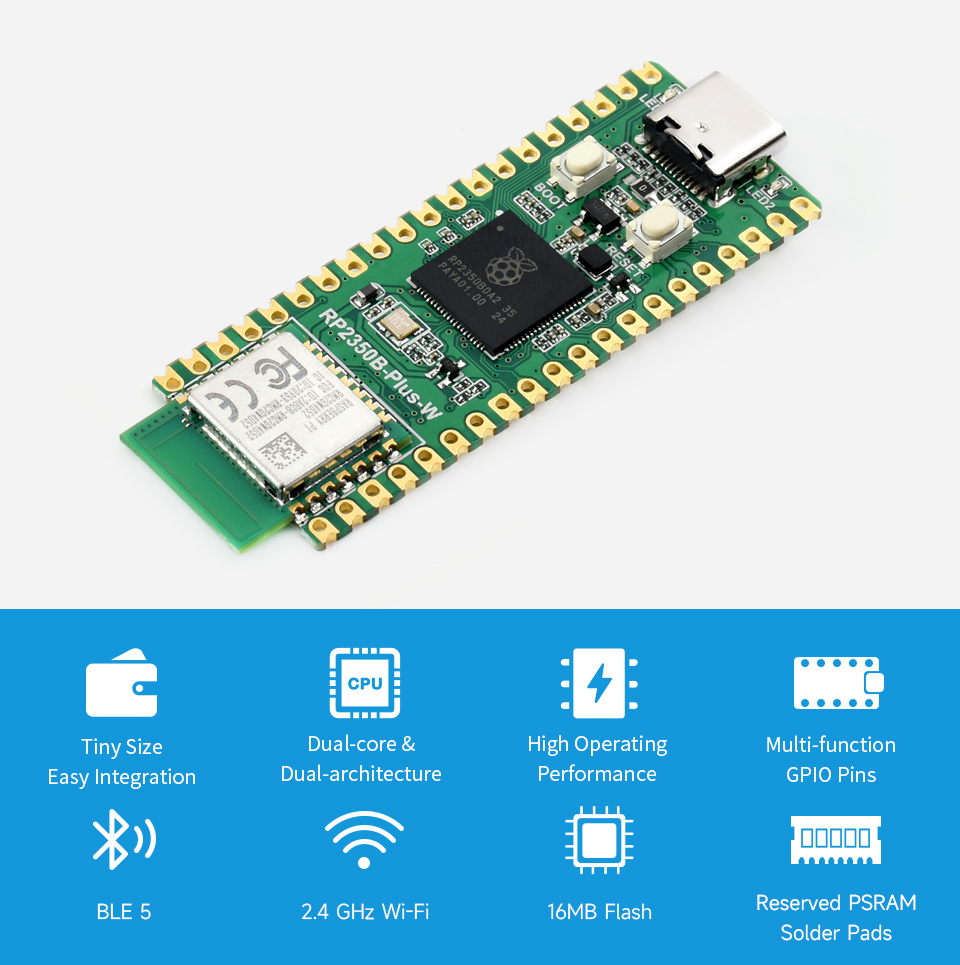

Features

RP2350B microcontroller chip officially designed by Raspberry Pi
Unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz, supporting flexible switching between the two architectures
Equipped with Raspberry Pi Radio Module 2 module, supporting Wi-Fi 4 wireless network and Bluetooth 5.2
Built-in 520KB SRAM and 16MB on-chip Flash, with a reserved PSRAM interface
Type-C connector, easier to use
USB1.1 host and slave device support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
41 × multi-functional GPIO pins
1 x HSTX, 2 x SPI, 2 x I2C, 2 x UART, 6 × 12-bit ADC and 22 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
On-chip accelerated floating-point library
12 × Programmable I/O (PIO) state machines for custom peripheral support

Package Includes

RP2350B-Plus-W x1

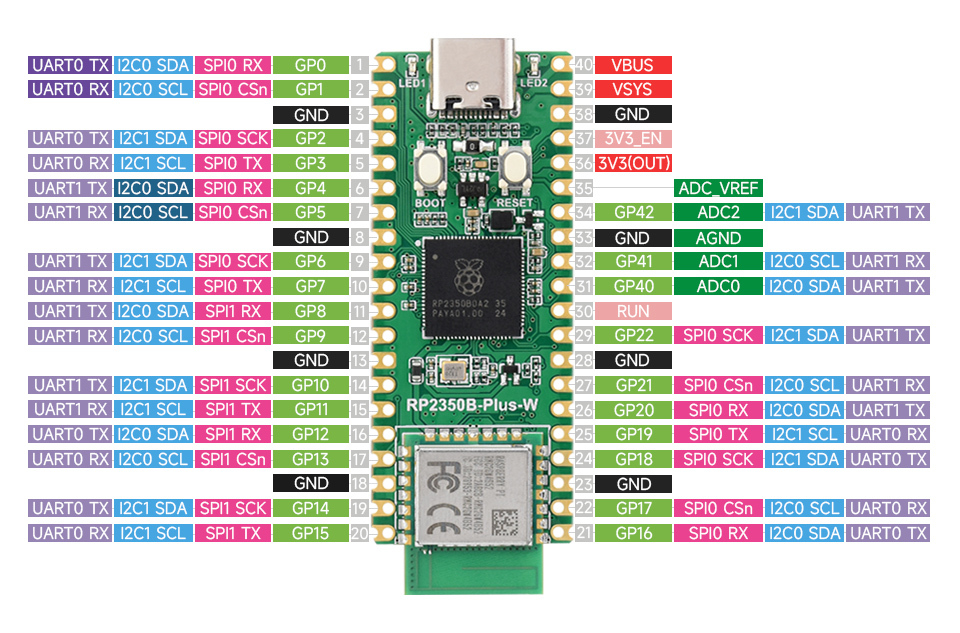

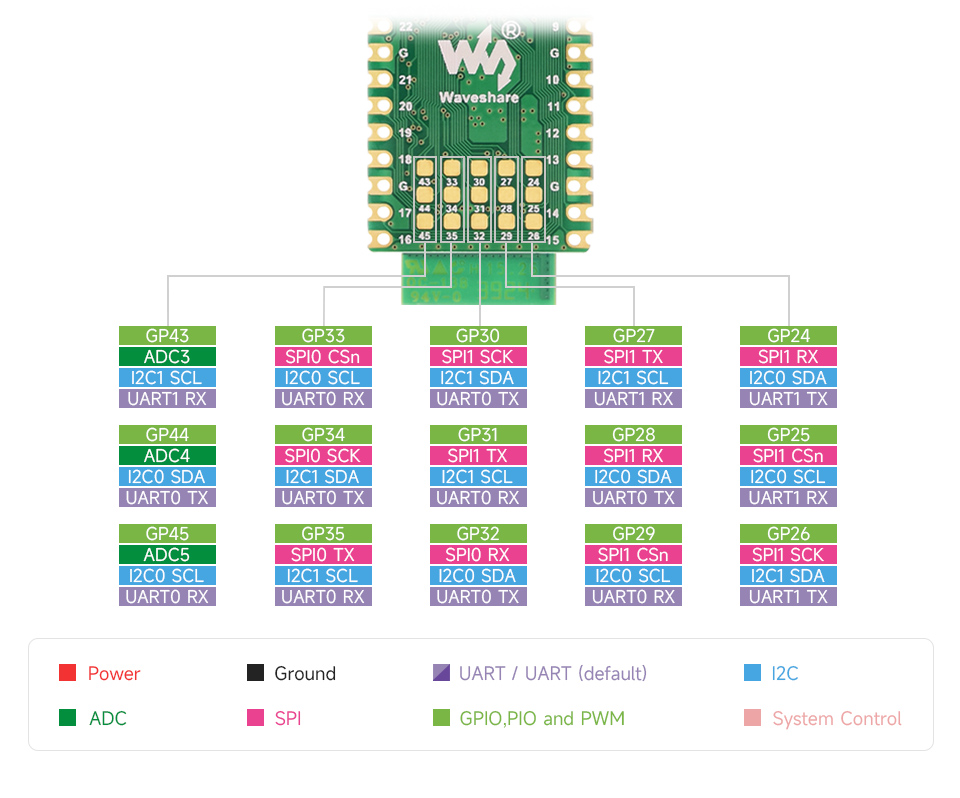

Pin Definition

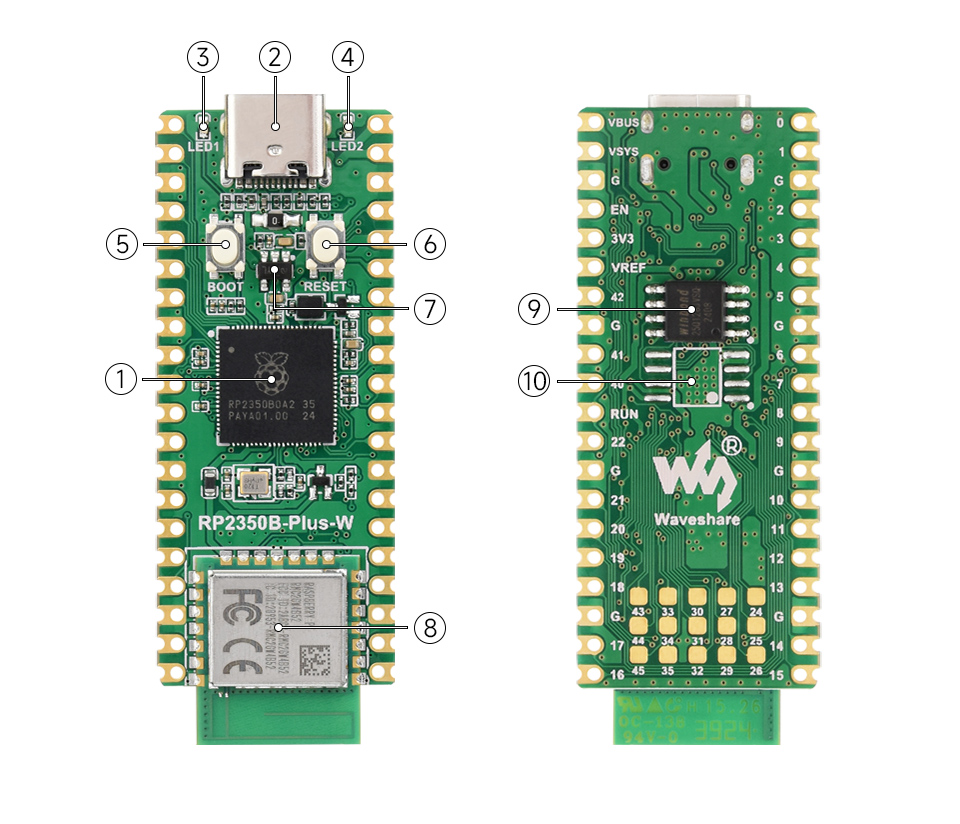

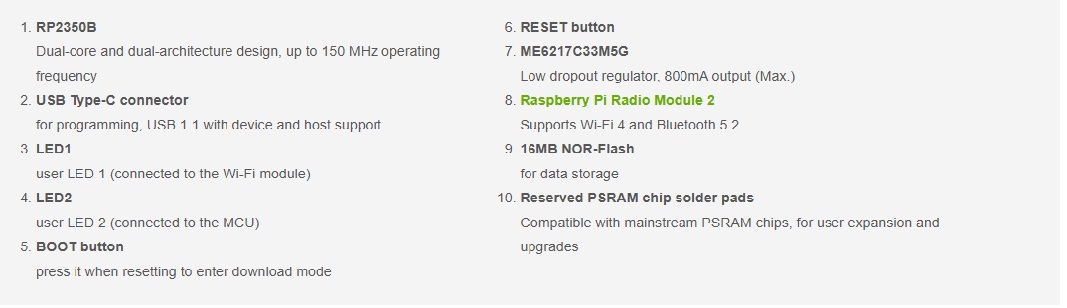

What's On Board

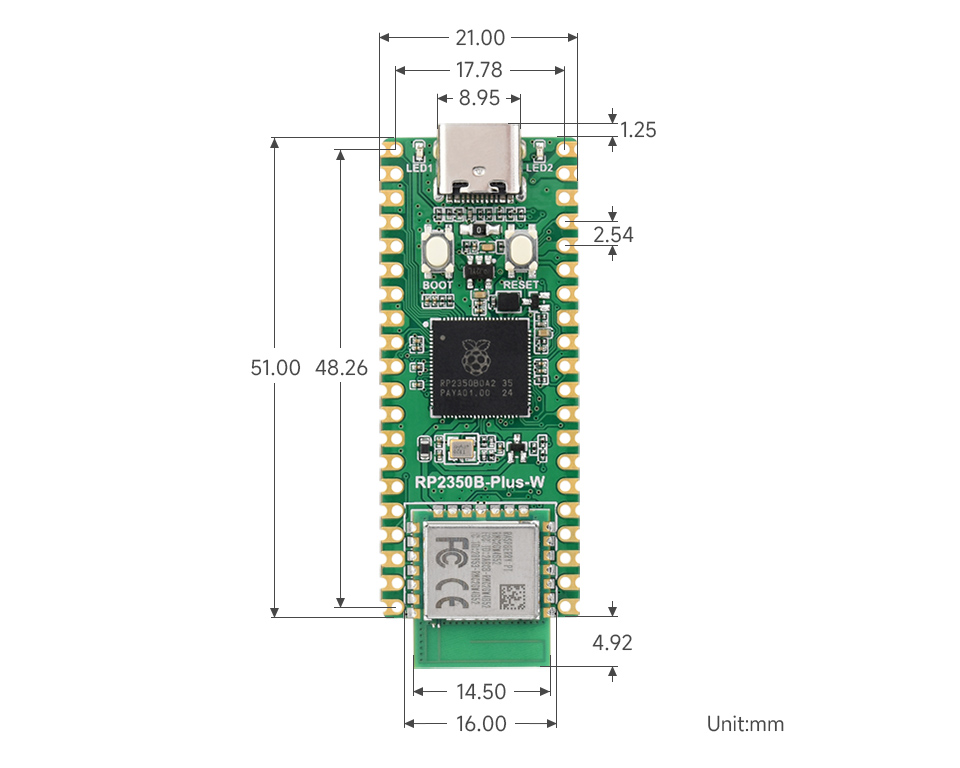

Dimensions
