RS485 to TTL Convertor Board Module

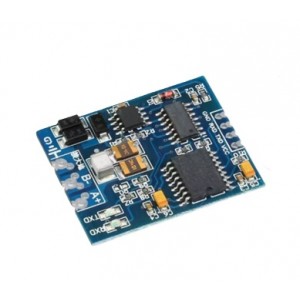

The RS485 to TTL Converter module uses a black backplane-circuit high quality board. This RS485 to TTL Converter module is based of TP8485 chip, which is one of the most relied on when working with RS485 Bus. This module supports 3.3 V and 5 V power supplies, and TTL Levels. This module Comes with one side unsoldered header pins and the other end standard 3.81mm plug.


Specifications

  • Supports 3.3 V and 5 V supply
  • LED indicators for RX and TX
  • Standard 3.81mm Plug
  • Onboard TP8485 Chip


Pin features

  • GND : common ground connection (power supply GND can be shared)
  • RX : wiring controller RXD
  • TX : connect to the controller TXD
  • GND : power supply GND
  • VCC : wide power supply 3.3V-5V
