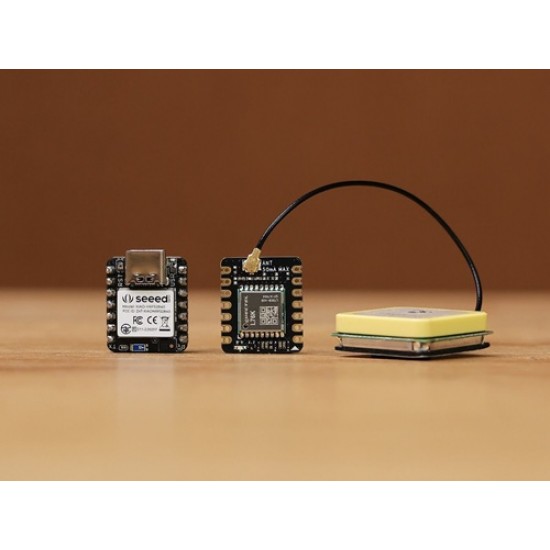

Seeed Studio L76K GNSS Module for XIAO Series

Looking for an easy-to-use GPS module for your XIAO projects? The L76K GNSS Module is your answer. The L76K GNSS Module, specifically designed for SeeedStudio XIAO, is a versatile and efficient Multi-GNSS receiver. Compatible with all XIAO development boards, it offers comprehensive support for various satellite systems including GPS, BeiDou, GLONASS, and QZSS. This module is capable of both combined multi-system and independent single-system positioning, ensuring flexibility and precision in various applications.

Enhanced with AGNSS functionality, the module boasts a built-in low-noise amplifier and surface acoustic wave filter, delivering fast and precise positioning performance. It comes equipped with a high-performance active GNSS antenna, optimized for GPS L1 C/A, BeiDou B1, and GLONASS L1 frequencies, ensuring wide coverage and reliable signal reception.

Additionally, the module features a small, bright green LED, providing visual confirmation of the 1PPS (one pulse per second) output when a fix is established, simplifying troubleshooting and enhancing user experience.

User Manual / Datasheet / Example Codes Etc.

Features

Enhanced Reception: Built-in Low Noise Amplifier and Surface Acoustic Wave Filter for improved sensitivity and noise reduction
High Precision:32/72 channels, -162dBm tracking, -160dBm re-acquisition sensitivity
Energy Efficiency: 41mA tracking/acquisition, 360µA standby
Multi-GNSS Systems: Powered byQuectel L76K, supporting GPS, BeiDou, GLONASS and QZSS
Ceramic Antenna: Enhanced signal reception, superior to traditional antennas.

Specifications

GNSS bands

GPS L1 C/A: 1575.42MHz
GLONASS L1: 1602MHz

BeiDou B1: 1561.098MHz
Channels: 32 tracking ch/72 acquisition ch
TTFF (Time To First Fix)

Cold Starts: 30s(w/o AGNSS), 5.5s(w/ GNSS)
Hot Starts: 5.5s(w/o AGNSS), 2s(w/ AGNSS)

Sensitivity

Auto-acquisition: -148dBm
Tracking: -162dBm
Re-acquisition: -160dBm

Accuracy

Position: 2.0m CEP
Velocity: 0.1m/s
Acceleration: 0.1m/s²
Timing: 30ns

UART Interface

Baud Rate: 9600~115200bps(9600bps default)
Update Rate: 1Hz(default), 5Hz(Max.)
Protocol: NMEA 0183, CASIC proprietary protocol

Antenna

Type: Active Antenna
Operating Frequency: 1559–1606MHz
Coaxial Cable: RF1.13 Length=10cm
Cable Connector: U.FL Plug RA

Current consumption(w/ active antenna)

Auto-aquisition: 41mA
Tracking: 41mA
Standby: 360uA

Dimension: 18mm x 21mm

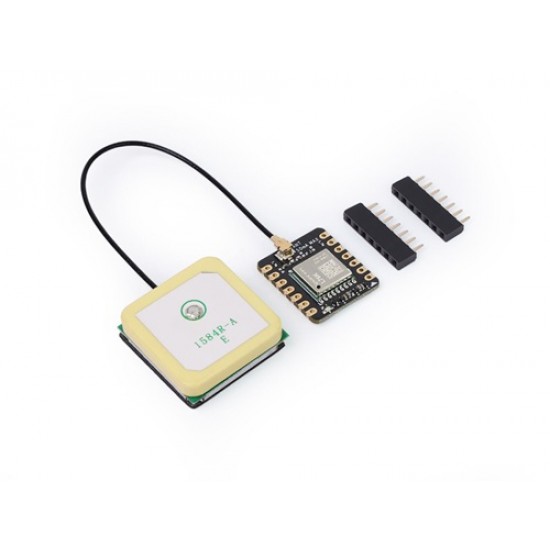

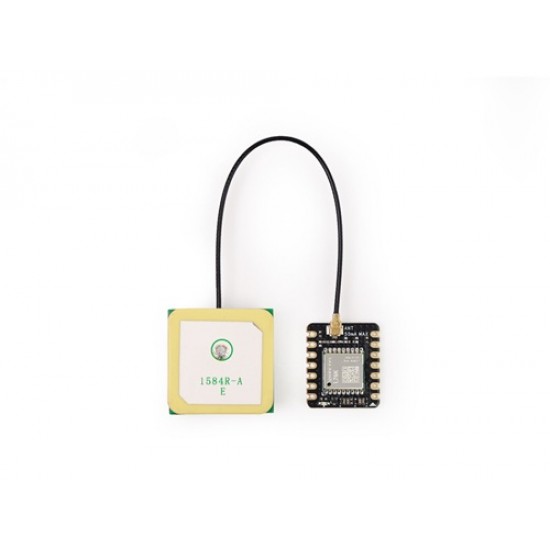

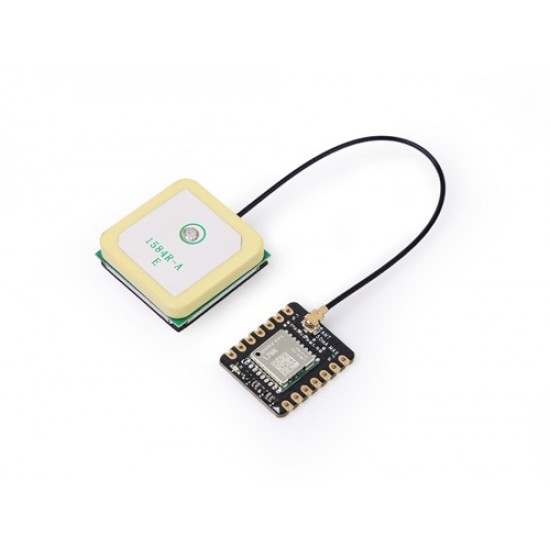

Package Includes

L76K GNSS Module
Active Antenna with iPex connector
7 Pin Female Header 2.54mm

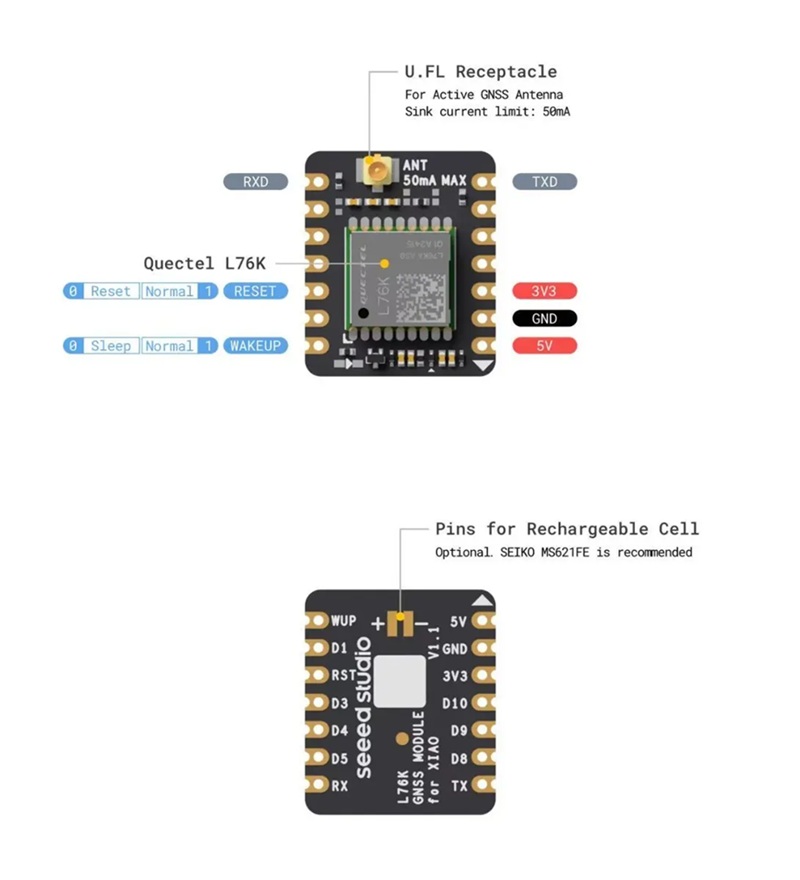

Hardware Overview
