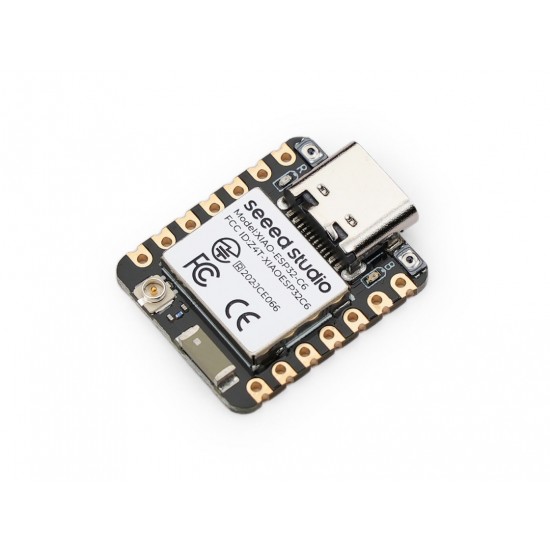

Seeed Studio XIAO ESP32-C6
XIAO ESP32-C6 is a cost-effective MCU based on Espressif’s ESP32-C6. This compact MCU excels in Matter-compliant smart home applications with its support for various wireless connectivity (2.4GHz Wi-Fi 6, BLE 5.0, Zigbee, and Thread). Designed with the thumb-size footprint and a single-sided mount of the XIAO Series, it's perfect for space-limited projects. Encrypted on the chip, the XIAO ESP32-C6 ensures a desired level of security streamlined development experience, and swift market entry by integrating easily with major IoT Cloud platforms.
Feature
- Enhanced Connectivity: Combines 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5(LE), and IEEE 802.15.4 radio connectivity, allowing you to apply the Thread and Zigbee protocols.
- Matter Native: Supports building Matter-compliant smart home projects thanks to its enhanced connectivity, achieving interoperability
- Security Encrypted on Chip: Powered by ESP32-C6, it brings enhanced encrypted-on-chip security to your smart home projects via secure boot, encryption, and Trusted Execution Environment (TEE)
- Outstanding RF performance: Has an on-board antenna with up to 80m BLE/Wi-Fi range, while reserving an interface for external UFL antenna
- Leveraging Power Consumption: Comes with four working modes, with the lowest being 15 μA in deep sleep mode, while also supporting lithium battery charge management.
- Dual RISC-V Processors: Incorporates two 32-bit RISC-V processors, with the high-performance processor running up to 160 MHz, and the low-power processor clocking up to 20 MHz

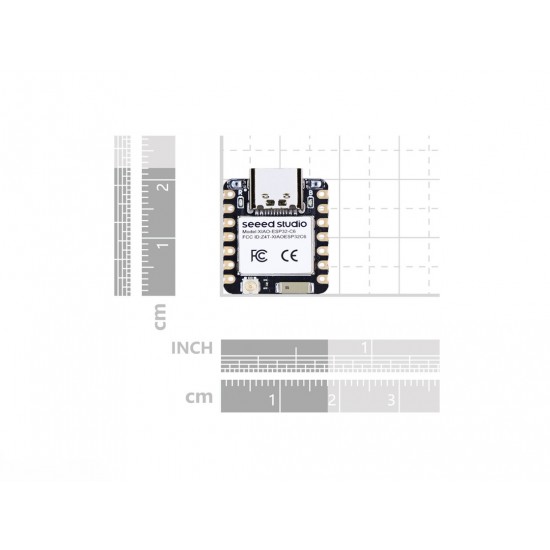

- Classic XIAO Designs: Remains the classic XIAO designs of the thumb-size form factor of 21 x 17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables
- Seamless integration with mainstream Cloud Platforms: ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud
Specifications
- Processor: Espressif ESP32-C6 SoC
- two 32-bit RISC-V processors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz
- Wireless: Complete 2.4GHz Wi-Fi 6 subsystem
- Bluetooth Low Energy 5.0
- Zigbee, Thread, IEEE 802.15.4
On-chip Memory: 512KB SRAM & 4MB Flash
- Interface
- 1x UART
- 1x LP_UART
- 1x IIC
- 1x LP_IIC
- 1x SPI
- 11x GPIO(PWM)
- 7x ADC
- 1xSDIO
- 1x Reset button
- 1x Boot button
- Power
- Input voltage (Type-C): 5V
- Input voltage (BAT): 3.7V
- Power Consumption Model（Typ.）(Supply Power: 3.8V)
- Modem-sleep Model: 30 mA
- Light-sleep Model: 3.1 mA
- Deep Sleep Model: 15 μA
- Working Temperature: -40°C ~ 85°C
Package Includes
- Seeed Studio XIAO ESP32C6
- 7 Pin Header

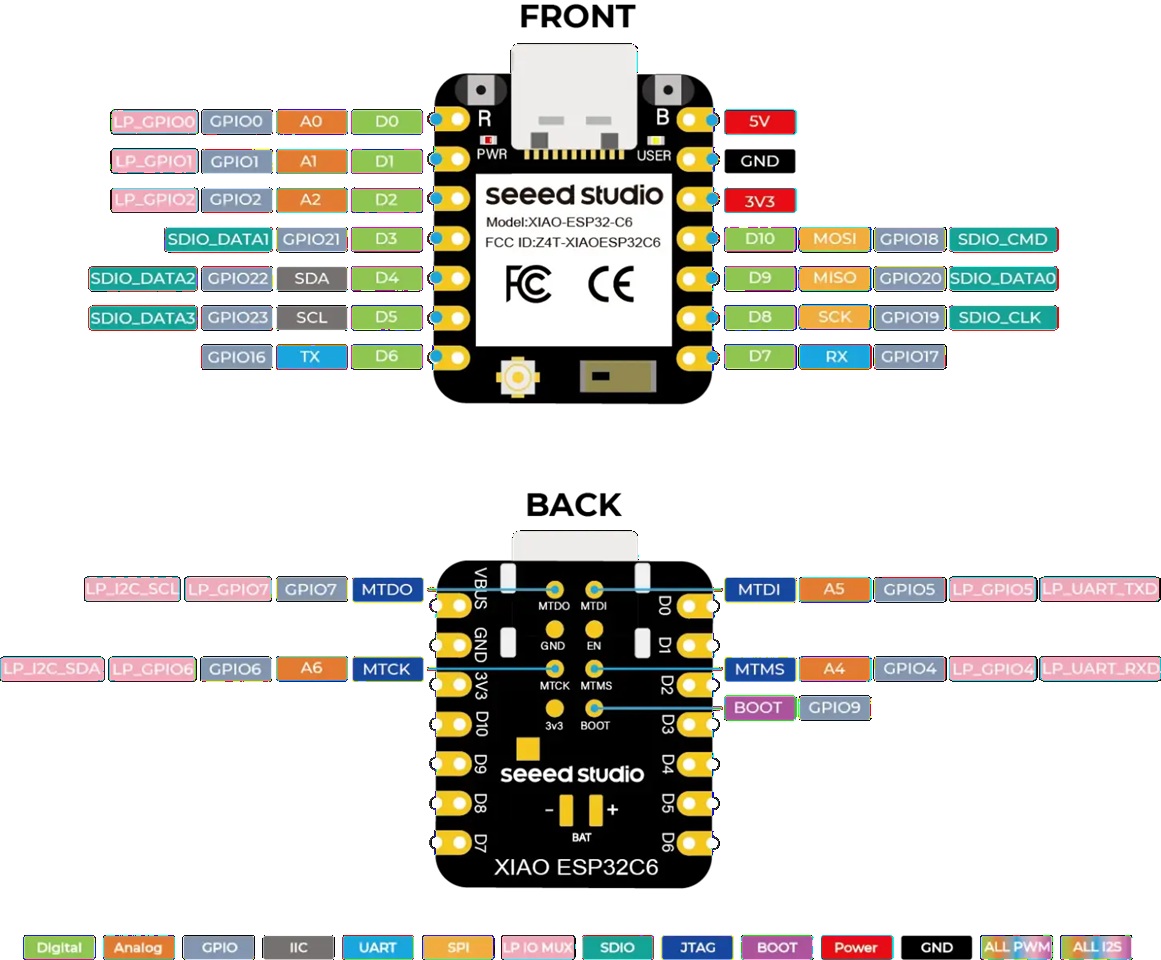

PinOut
