Name: Seeed Studio XIAO ESP32-C5
Brand: Seeed Studio
SKU: 07654
Price: 799.00 INR
Availability: OutOfStock

Seeed Studio

Seeed Studio XIAO ESP32-C5

Based on 0 reviews. - Write a review

₹799.00

₹677.12 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 7
B2B GST Credit Available

Price in reward points: 679

Stock: 0 in Stock
SKU: 07654
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Seeed Studio XIAO ESP32-C5

The Seeed Studio XIAO ESP32-C5 is a compact, high-performance development board built around the latest ESP32-C5 chipset, offering advanced wireless connectivity and efficient processing in a thumb-sized form factor. Designed for IoT, embedded systems, and smart device applications, it combines powerful computing capabilities with ultra-low power consumption.

This board features support for Wi-Fi 6 (802.11ax) and Bluetooth 5 (LE), enabling faster data transmission, improved network efficiency, and reliable wireless communication even in congested environments. Its small size and castellated edges make it ideal for space-constrained designs and easy integration into custom PCBs.

The XIAO ESP32-C5 is equipped with a RISC-V processor, providing enhanced performance and flexibility for developers working on modern IoT solutions. With multiple GPIO interfaces, analog inputs, and digital communication protocols, it supports a wide range of sensors, displays, and peripherals.

User Manual / Datasheet / Example Codes Etc.

Features

Powerful CPU: ESP32-C5, 32bit RISC-V singlecore processor that operates at up to 240 MHz
Complete WiFi subsystem: Dual-band Wi-Fi 6 subsystem (2.4 GHz and 5 GHz) compliant with IEEE 802.11 a/b/g/n/ac/ax, supporting Station, SoftAP, concurrent SoftAP+Station operation, and promiscuous (monitor) mode.
Bluetooth LE subsystem: Supports features of Bluetooth 5 and Bluetooth mesh
Better RF performance: External RF antenna included.
Battery charging chip: Supports lithium battery charge and discharge management.
Rich on-chip resources: 384 KB on-chip SRAM, 320 KB of ROM

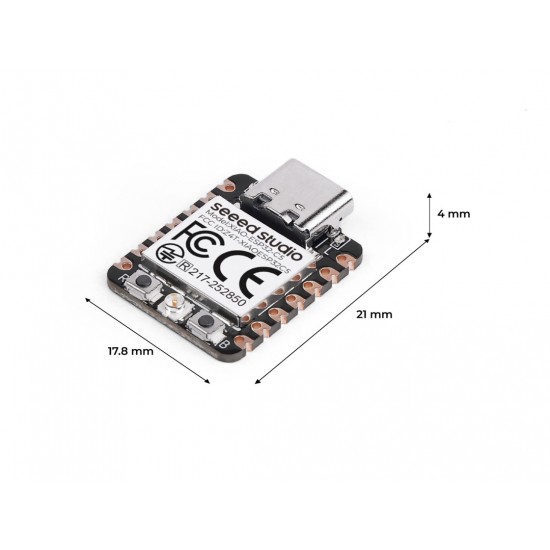

Ultra small size: As small as a thumb(21x17.8mm) XIAO series classic form-factor for wearable devices and small projects
Reliable security features: Cryptographic hardware accelerators supporting AES-128/256, SHA family hashing, HMAC, a dedicated digital signature peripheral, and Secure Boot (V2).
Rich interfaces: 1×I2C, 1×SPI, 2×UART, up to 11×GPIO (PWM-capable), 5×ADC channels, and a JTAG(pads on the reverse side) bonding-pad interface.
Single-sided components, surface mounting design

Specifications

Chipest: ESP32-C5HR8
Processor: High-performance 32-bit RISC-V single-core microprocessor, up to 240MHz and a low-power 32-bit RISC-V core at up to 48MHz (according to Datasheet, up to 20MHz p.69 of Technical Reference Manual v0.2)
SRAM: 384KB
RSRAM: 8MB
Flash: 8MB
Interface

11x GPIO Pin
1x Analog Pin + 4x Analog Pad on the reverse side
1x I2C
1x UART
1x SPI
1 x JTAG (Pads on the reverse side)

On Board

1x User LED (Green)
1x Charge LED (Battery Charging Indicator)
1x Reset Button
1x Boot Button
1x UFL Connector

Wireless Connectivity

2.4 and 5 GHz dual-band Wi-Fi 6 (802.11ax)
Bluetooth® 5 (LE)
Zigbee
Thread (802.15.4)

Power Input

Type-C: 5V/DC
Battery: 3.7V

Deep Sleep（Typ.）
(Low Power Firmware)

USB Power Supply: 375 µA
Battery Power (BAT): 15 µA

Working Temperature: 0°C ~85°C

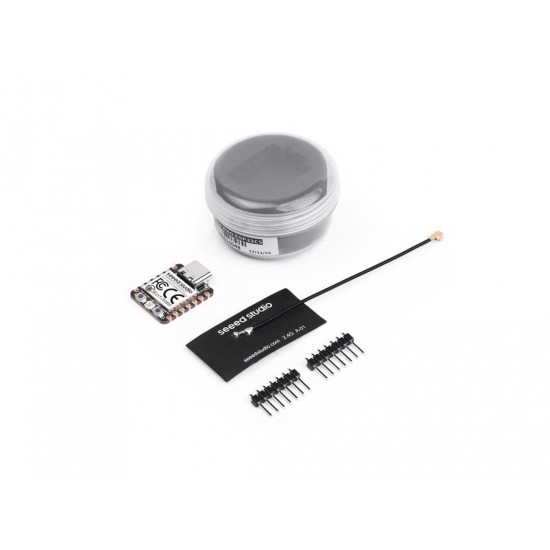

Package Includes

1x XIAO ESP32-C5
1x Pin Header

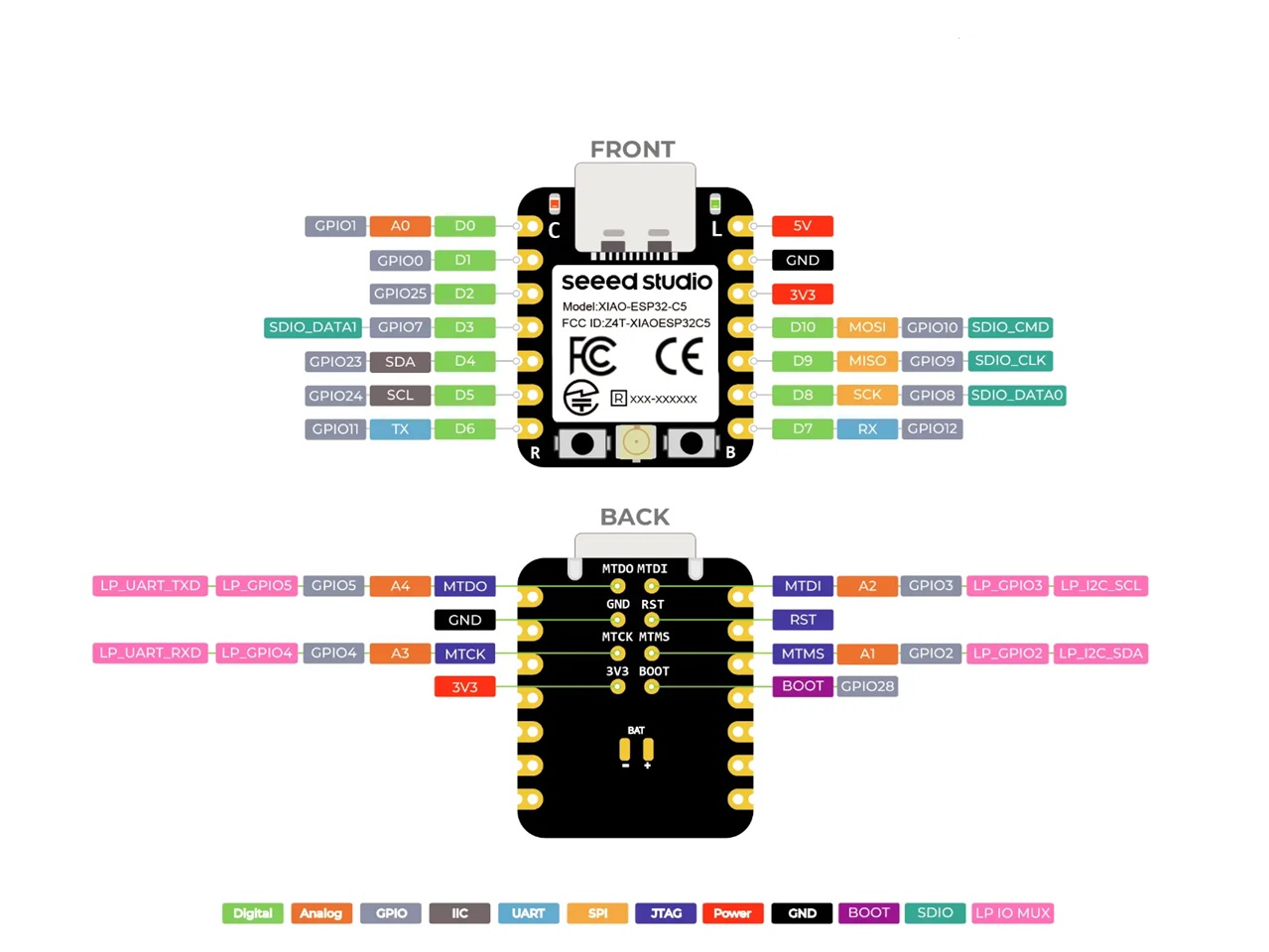

Pin Definition
