New
Seeed Studio
₹103,814.41 + 18% GST
B2B GST Credit Available
Seeed Studio Lumeo Super AI Gateway, powered by NVIDIA Jetson Orin Nano 8GB in Super Mode (MPN:100072121)
This product qualifies for Free Surface Shipping !
All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹122,501.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 1038
B2B GST Credit Available
Price in reward points: 103814
- Stock: 0 in Stock
- SKU: 08930
- Delivery Time
- Bulk & B2B RFQ

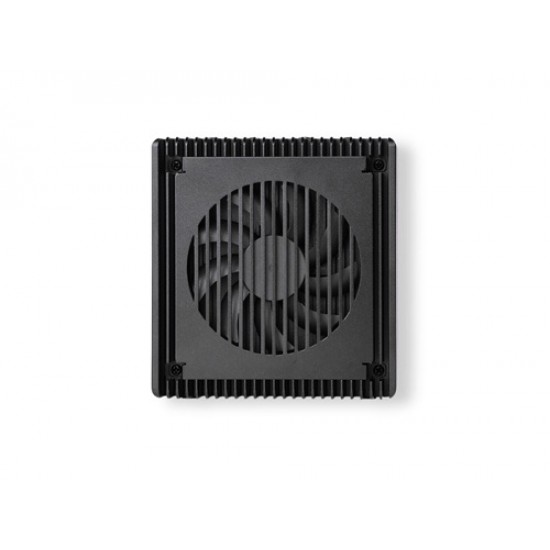

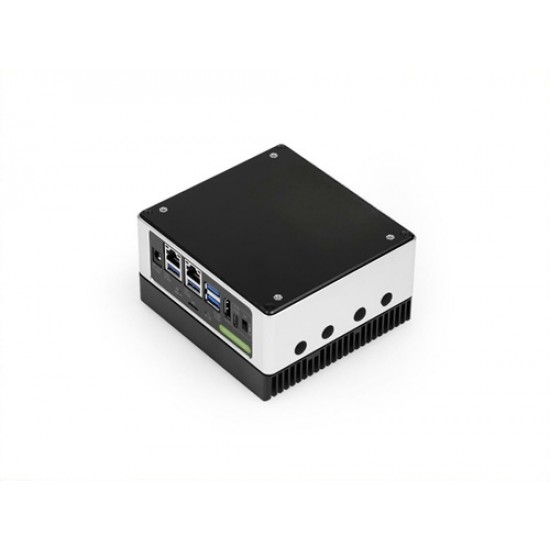

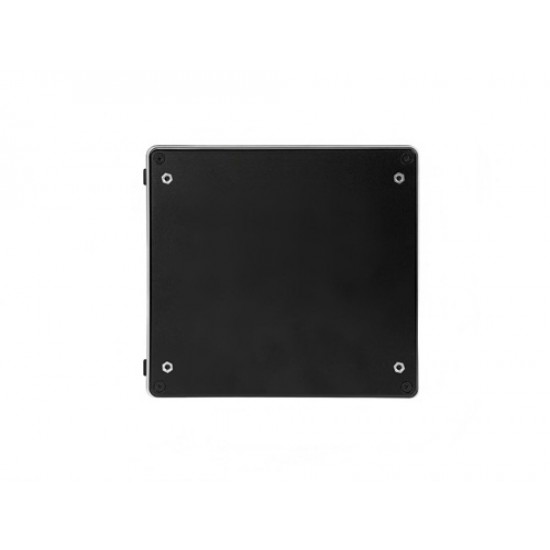

Seeed Studio Lumeo Super AI Gateway, powered by NVIDIA Jetson Orin Nano 8GB in Super Mode
Easily build, and manage custom video analytics applications with Lumeo’s intuitive no-code platform equipped with drag-and-drop tools and pre-built analytics, reducing development time from days to minutes. Deploy instantly to the edge using this Lumeo Super AI Gateway powered by reComputer Super Jetson Orin device.
User Manual / Datasheet / Example Codes Etc.
Feature
Powerful Edge AI Gateway:
- Super Boost AI Performance: Powered by NVIDIA Jetson Orin™ with 67 TOPS AI performance in Super Mode. Please see the hardware model difference in the following hardware comparison table.

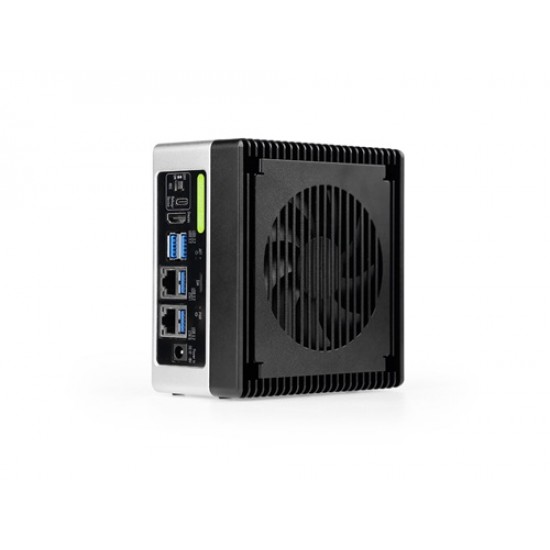

- Rich connectivity: 2 RJ-45 Ethernet ports, 4x USB 3.2, HDMI 2.1, SIM card and CAN. Also including M.2 Key E/M, Mini-PCIe, 4x Mipi-CSI for connectivity and cameras.
- Robust Thermal Design: Operates reliably in temperatures from -20°C to 65°C.
Effortless Device Configuration:
- User-friendly web interface
- Device discovery using MDNS/Windows Explorer.
- Pre-installed Lumeo software for quick provisioning.
Cloud-based, Large-Scale Device Management:
- Supports Allxon Remote Edge AI Device Management Service.
- OOB Power Cycling for instantly resolving system errors and unresponsive devices.
- Automatic Fleet Provisioning for deployment and customized BSP OTA update for maintenance.
Specifications
- Module: Orin Nano 8GB (Super Mode)
- AI Performance: 67 TOPS
- NVIDIA GPU Cores: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
- GPU Max Frequency: 1020 MHz
- CPU: 6x A78 1.7 GHz
- Memory: 8GB 128-bit LPDDR5 102GB/s
- Video Encoder: 1080p30 supported by 1-2 CPU cores
- Video Decoder
- 1x 4K60 (H.265)
- 2x 4K30 (H.265)
- 5x 1080p60 (H.265)
- 11x 1080p30 (H.265)
- Module Power: 10W | 15W | 25W
- Carrier Board
- Storage: 1x M.2 KEY M for NVMe SSD (128G SSD included)
- Networking
- Ethernet
- M.2 KEY E
- Mini PCIe
- Power: 12-19V 5525 Barrel DC Jack
- Jetpack Version: Jetpack 6.2

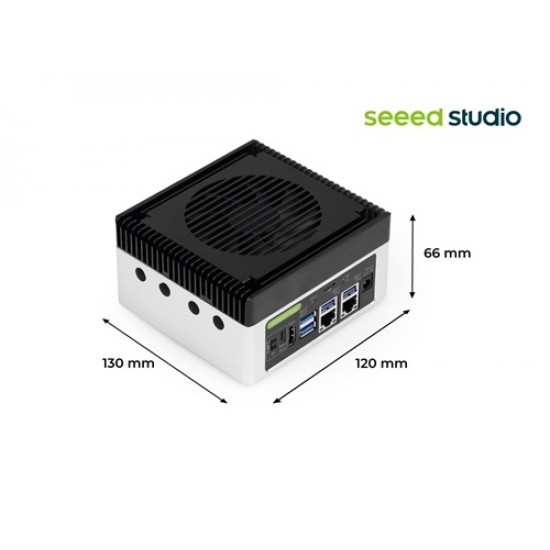

- Mechanical: Dimensions (W x D x H)
- Operating Temperature
- -20℃~65℃(25W Mode)
- -20℃~60℃(MAXN Mode)

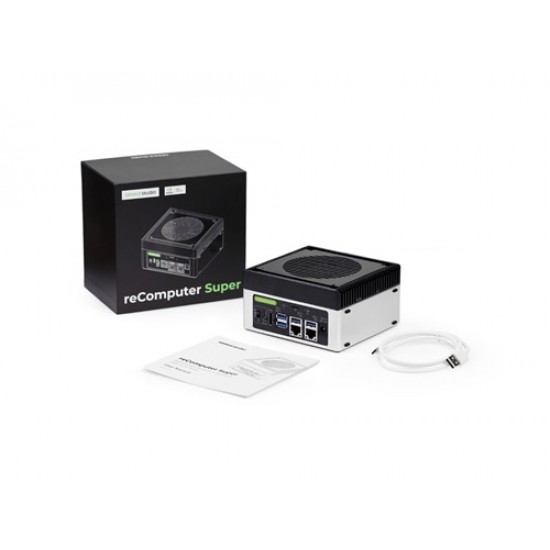

Package Includes
- Seeed reComputer Super J3011x1
- Jetson Orin Nano 8GB Modulex1
- USB Cable; Type A to Type C
