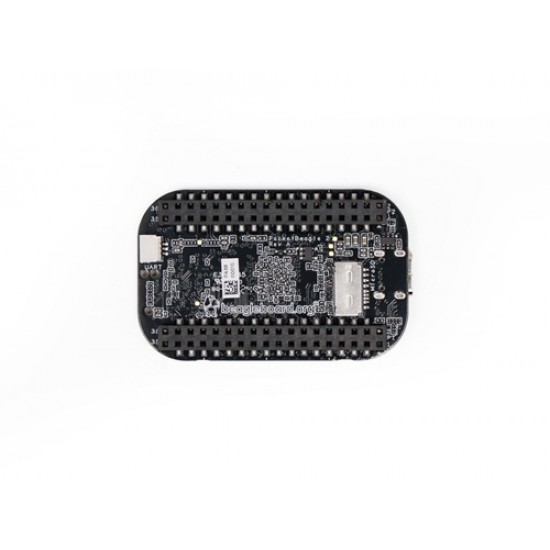

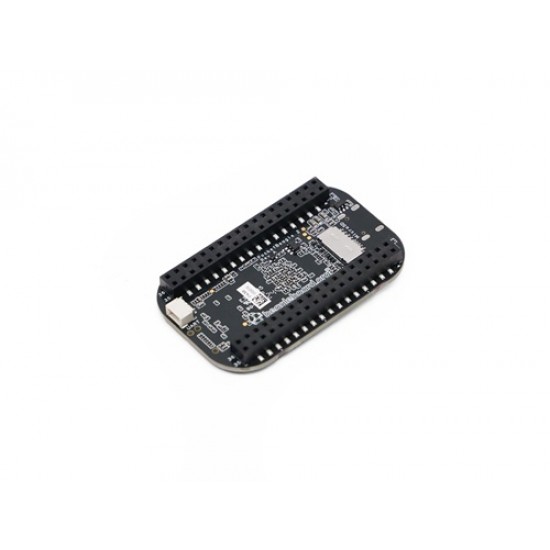

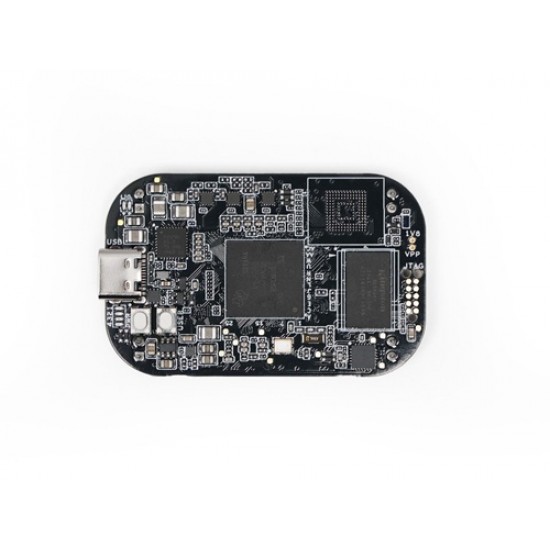

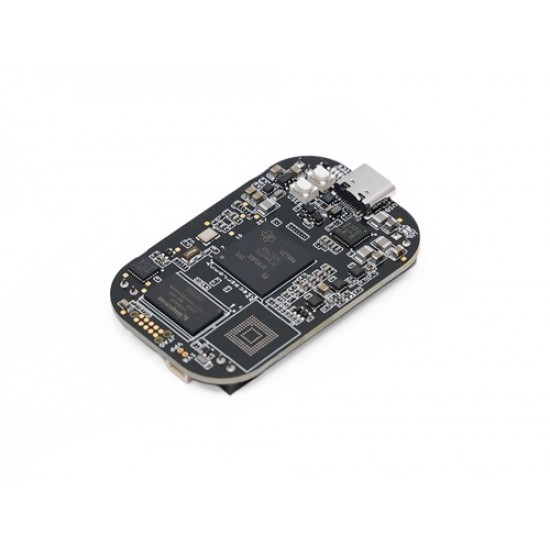

Seeed Studio BeagleBoard PocketBeagle 2

Created by BeagleBoard.org Foundation, BeagleBoard PocketBeagle 2 is an upgraded version of the popular BeagleBoard PocketBeagle, designed as an ultra-compact, low-cost, and powerful single-board computer (SBC). Powered by Texas Instruments AM6254 SoC, it delivers high performance, advanced security, extensive connectivity, and advanced capabilities for developers, students, and hobbyists and innovators.


User Manual / Datasheet / Example Codes Etc.


Features

  • High-Performance Dual-Core Processing: Now powered by the AM6254 SoC, featuring dual ARM Cortex-A53 cores up to 1.4 GHz (higher performance), with 512 MB LPDDR4 SDRAM running at 3200 MHz and a microSD card slot for flexible storage.
  • Advanced Real-Time Control：A single-core ARM Cortex-M4F MCU running at up to 400 MHz and a dual-core Programmable Real-Time Unit Subsystem (PRUSS) at 333 MHz enable precise real-time control and automation, making it ideal for time-sensitive applications.
  • Pocket-Size with Rich Peripherals：55 x 35 mm compact size and 72 expansion pin headers with power and battery I/Os, high-speed USB, 8 analog inputs, 52 digital I/Os, and numerous digital interface peripherals. One dedicated MSPM0L1105 Arm Cortex-M0+ MCU for 12-bit ADC.
  • Power Management System：The TPS6521903 PMIC combines system-level power management optimization with BQ21040 to support intelligent charging of single-cell Li-Ion and Li-Polymer batteries, enabling seamless power switching and facilitating space-limited portable applications.


Specifications

  • Processor
    • TI AM6254 – Dual ARM Cortex-A53 cores @ 1.4 GHz
    • TI AM6254 – ARM Cortex-M4F core @ 400 MHz
  • SDRAM Memory: 512MB DDR4 3200 MHz
  • PMIC: TPS6521903
  • Indicators
    • 1 x Power
    • 1 x Battery charging
    • 4 x User Controllable LEDs
  • Interfaces: 72 × GPIO
  • Buttons
    • 1 User/Boot Button
    • 1 Power button
  • Debug Support
    • 3 pin 3.3V JST-SH 1.00mm UART debug port (RPI debug probe compatible)
    • 10-pin JTAG TAG-CONNECT footprint
  • Power Source: USB C or Cape Header VIN (5V @ 1A)
  • SD/MMC Connector: microSD (1.8/3.3V)
  • Dimensions: 55 x 35 mm


Applications

  • Industrial automation
  • Robotics
  • Internet of Things (IoT)
  • Embedded teaching
  • Home automation
  • Edge computing


Package Includes

  • BeagleBoard PocketBeagle
  • Getting Started Guide
