Seeed Studio XIAO e-Paper Display Board (ESP32-S3) - EE04 (MPN:100075670)

Seeed Studio XIAO e-Paper Display Board (ESP32-S3) - EE04 (MPN:100075670)

Powered by XIAO ESP32-S3 Plus, the display board EE04 supports both 24-pin and 50-pin ePaper displays. It features a JST 2.0 mm battery connector with power switch, built-in charging IC, and comes with one reset and three user buttons. Well-suited for low-power ePaper projects such as digital signage, electronic labels, and portable information boards.

User Manual / Datasheet / Example Codes Etc.

Features

• Powered by XIAO ESP32-S3 Plus：Works immediately when connected to a compatible ePaper display.
• Versatile Display Support: Compatible with a wide range of ePaper screens, supporting both 24-Pin and 50-Pin interfaces with easy switching via jumper caps.
• BAT Connector with Switch: Provides simple battery connection and integrates a switch, enabling efficient power management and energy savings.
• User-Friendly Buttons: Includes 1 reset button and 3 user-programmable buttons, offering flexibility for project acceleration and customizable functions.
• No-Code UI Design & Deployment with SenseCraft HMI: Design and deploy personalized dashboards effortlessly with SenseCraft HMI, our new AI-powered no-code platform. Create your UI through simple drag-and-drop elements, choose from our rich templates, or let AI help you. Connect real-time data from web APIs, then deploy your finished dashboard to epaper display with just a few clicks. From design to data configuration to deployment, everything happens seamlessly on one single platform.

Specifications

• onBoard MCU : XIAO ESP32-S3 Plus
• Compatible ePaper Displays
• -24 Pin ePaper
• -50Pin epaper
• ePaper Connector
• -FPC 24 Pin, 0.5mm
• -FCP 50 Pin, 0.5mm
• Battery Connector: JST 2.0mm
• Switch: Battery Power ON/OFF
• Power Supply
• - 3.7V Li-Battery
• - USB Type-C
• Button
• -1x Reset button
• -3x User button

Applications

• Smart Home Dashboard: Display real-time information such as weather updates, calendar events, and notifications from various smart home devices.
• Energy Monitoring: Show energy consumption data from smart meters, helping homeowners track and manage their energy usage more efficiently.
• Security Alerts: Display alerts and notifications about security events, such as motion detection or door/window sensor activation.
• Digital Photo Frame: Create a WiFi-enabled digital photo frame that can display images from your smart home network.

Package Includes

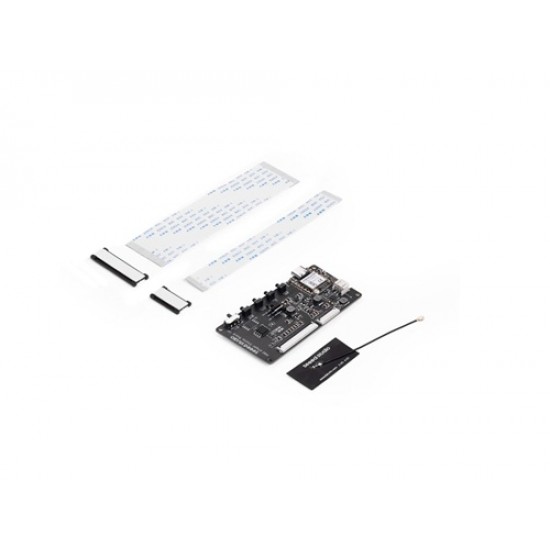

• 1x Seeed Studio XIAO ePaper Display Board(ESP32-S3) - EE04
