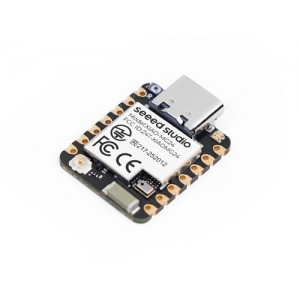

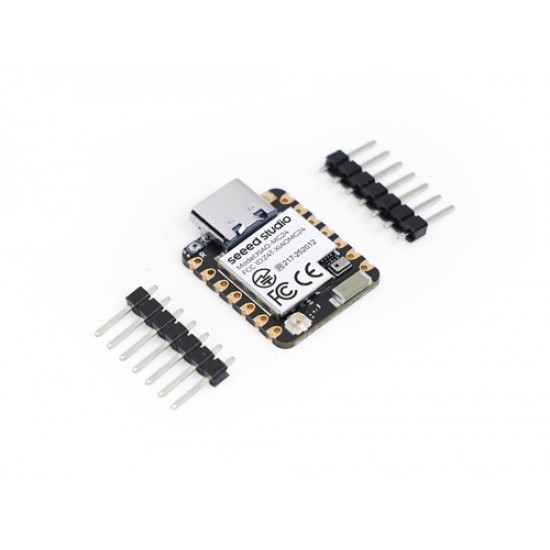

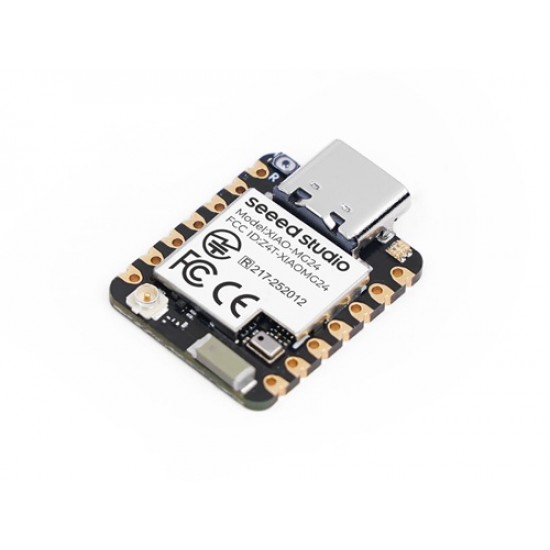

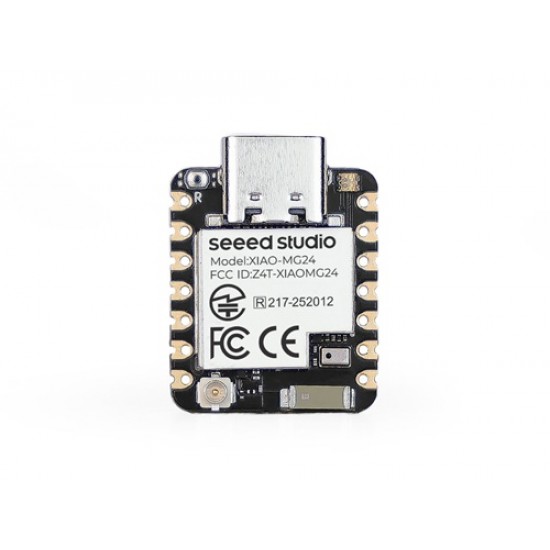

Seeed Studio XIAO MG24 Sense
XIAO MG24 Sense is an ultra-low-power wireless development board based on Silicon Labs' EFR32MG24 SoC, featuring a high-performance 78MHz ARM Cortex®-M33 core. It‘s Matter® native over Thread® and Bluetooth® Low Energy 5.3, all supported by the Arduino® Core. With 4MB Flash onboard, 19 GPIOs, LED, and charging circuit onboard, it boasts extremely low operating current and ultra-low-power modes, making it an ideal choice for IoT applications, especially battery-powered projects utilizing Matter® protocols. Additionally, the onboard analog microphone and six-axis IMU sensors make XIAO MG24 Sense a great fit for TinyML applications such as posture detection.
User Manual / Datasheet / Example Codes Etc.
Features
- High Performance MCU: Silicon Labs' EFR32MG24 SoC, 32-bit 78 MHz ARM Cortex®-M33 with DSP instruction
- Matter Native: Compatible with Matter® over Thread® and Bluetooth® Low Energy 5.3, Supported by the Arduino® Core
- Outstanding RF Performance: Equipped with an on-board antenna with BLE range up to 50m in an open location with no signal interference, while reserving an interface for external UFL antenna
- Super-Low Power Design: Power consumption less than 1.95μA in sleep mode, ideal for battery-powered home automation application
- Advanced Onboard Sensors: Features additional analog microphone and 6-axis IMU for TinyML and edge AI applications such as pose perception for more responsive automation.
- Security Encrypted On-Chip: A dedicated hardware secure engine containing its own CPU enables the Secure Vault functions.
- Rich On-Board Resources: Additional 4MB Flash on board, on-board battery charging circuit, 19 GPIOs, LED
- Classic XIAO Design: Remains the classic XIAO design of the thumb-size form factor of 21 x 17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables
- XIAO Accessory Add-ons and Kits Compatibility: Natively compatible with all the XIAO accessory add-ons and kits of Grove Expansion, CAN-Bus, LED Matrix, Vision AI Sensor, Round Display, GSP Module, 2-Mic Array, ePaper Display, mmWave sensor, LoRa Module and many more.
Specifications
- Processor: Silicon Labs EFR32MG24
- RAM: 256kB
- Flash: 1536KB + 4MB Onboard
- LEDs
- 1x User LED
- 1x Power LED
- Sensors
- 1x Onboard Analog Microphone
- 1x Onboard 6-Axis IMU

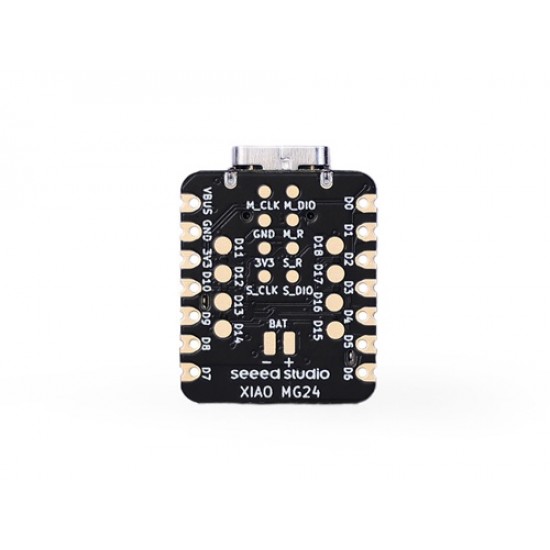

- Interface
- 22 Pins(All PWM):
- 19x Analog
- 19x Digital
- 1x I²C
- 2x UART
- 2x SPI
- Button: 1x RESET Button
- Security: Hardware Cryptographic Acceleration, True Random Number Generator, ARM® TrustZone®, Secure Boot, Secure Debug Unlock etc.
- Low power（Typ.): 1.95μA
- Normal（Typ.): 6.71mA
- Sleep（Typ.): 1.91mA
- Software Compatibility: Arduino IDE
- Working Temperature: -20°C-70°C

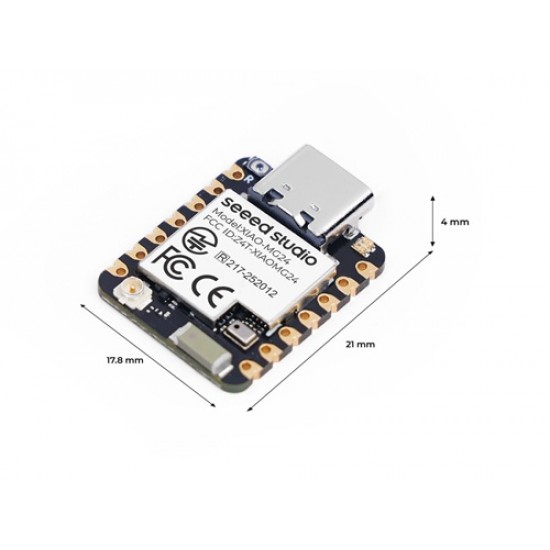

- Dimensions: 21x17.8 mm
Applications
- Smart Home Devices: Using Matter® for devices like smart locks, sensors, and lighting.
- Remote Controls: Low-power remotes for home automation systems
- TinyML Applications: On-device machine learning for gesture recognition and voice commands.
- Environmental Monitoring: Battery-powered sensors for temperature, humidity, and air quality.

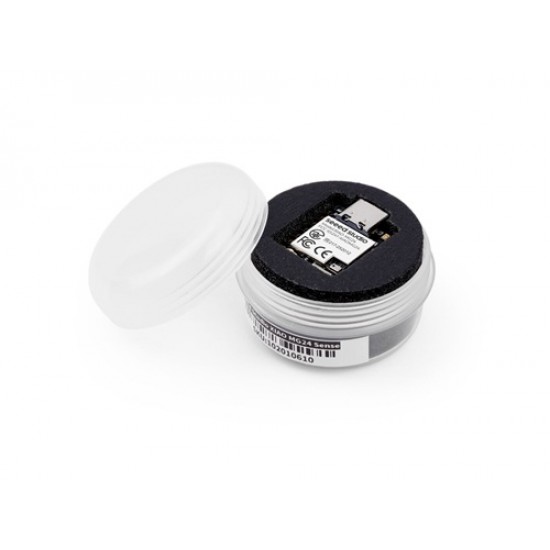

Package Includes
- 1x Seeed Studio XIAO MG24 Sense
