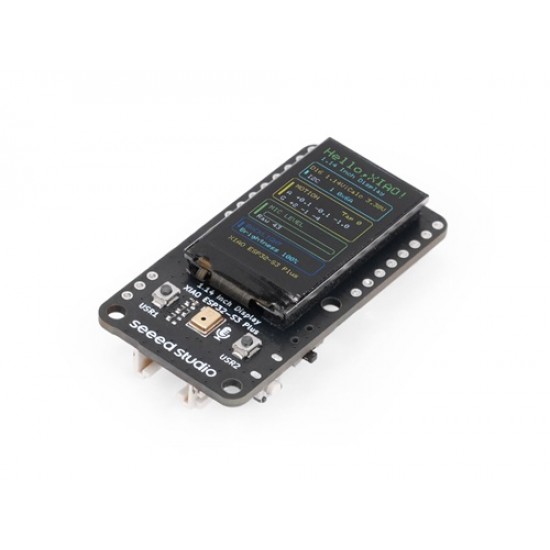

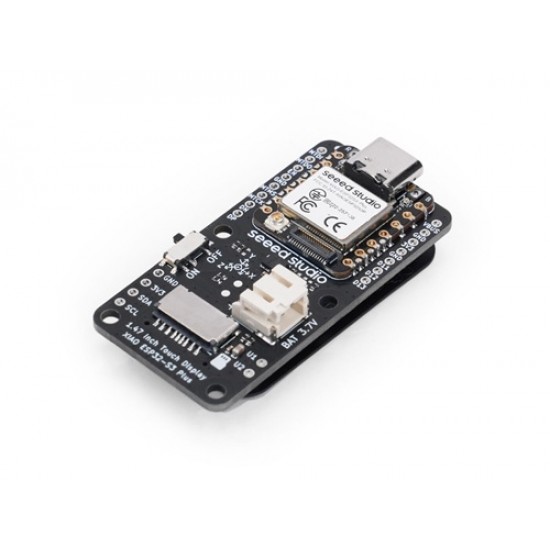

Seeed Studio XIAO 1.14 Inch IPS Display(ESP32-S3)
It is a ready-to-use mini smart device development board that brings a 1.14-inch IPS display, PDM digital microphone, 6-axis IMU, three user buttons, Grove I2C interface, battery connector, and the pre-soldered XIAO ESP32-S3 Plus together on one compact board. With Wi-Fi and Bluetooth connectivity, you can quickly build connected sensor displays, smart home controllers, motion-aware devices, desktop gadgets, portable monitors, and compact HMI projects without wiring multiple separate modules.
User Manual / Datasheet / Example Codes Etc.
Features
A Mini Smart Device Board for Connected Projects
- If you want to build a compact connected device, you usually need a display, buttons, sensors, audio input, battery support, and wireless connectivity. This board brings these key parts together with XIAO ESP32-S3 Plus, so you can focus on the interface, sensor data, interaction, and connectivity instead of starting with multiple modules and wires.
Clear 1.14-Inch Display with Physical Controls
- The 1.14-inch 135 × 240 IPS display gives you enough space for sensor readings, status pages, icons, menus, dashboards, and lightweight animations. Three physical user buttons provide simple and reliable control without requiring a touch screen, making it a good fit for handheld devices, controllers, and compact interfaces.
Voice, Motion, and Grove Expansion in One Small Board
- This board does more than show information. The PDM microphone can be used for sound detection, audio capture, and voice-related interaction, while the 6-axis IMU detects orientation, shaking, flipping, and motion. The onboard Grove I2C interface also makes it easy to add environmental, distance, light, and other compatible sensors without complex wiring.
Built for Wi-Fi, Bluetooth, and Richer Connected Interfaces
- Powered by XIAO ESP32-S3 Plus, this version combines a dual-core processor running at up to 240 MHz with Wi-Fi, Bluetooth Low Energy, 8 MB PSRAM, and 16 MB Flash. It is a good fit for connected dashboards, smart home controls, wireless sensor terminals, desktop gadgets, and other projects that need more processing and memory headroom for graphics and connectivity.
Specifications
- Positioning: Sensing & Expansion
- Core Controller: Seeed Studio XIAO ESP32-S3 Plus
- Processor: ESP32-S3R8, Dual-Core, up to 240 MHz
- Memory: 8 MB PSRAM + 16 MB Flash
- Wireless: 2.4 GHz Wi-Fi + BLE 5.0
- Display: 1.14" IPS TFT
- Resolution: 135 × 240
- Display Driver: ST7789
- Touch: No
- 6-Axis IMU: Yes
- PDM Digital Microphone: Yes
- Battery Monitoring: Battery voltage monitoring via D16 ADC; battery level can be estimated from the measured voltage.
- Battery status detection is not supported.

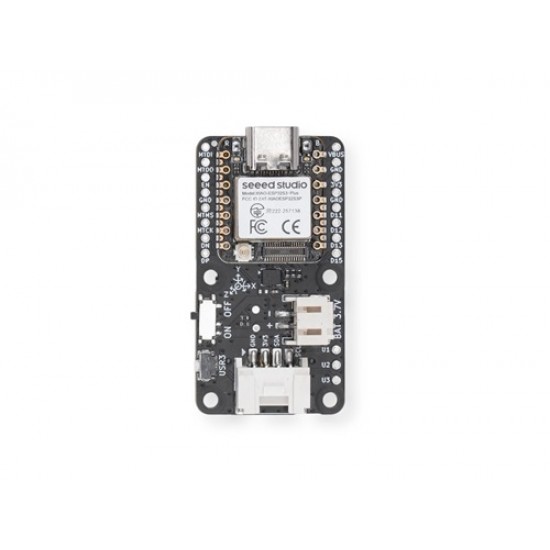

- Expansion Interfaces
- 1x I2C Interface
- 1x I2S Interface
- 1x JTAG Interface
- 3x User Button Interface

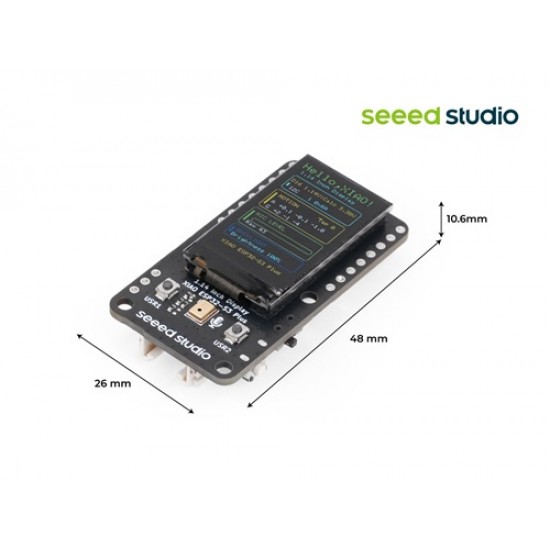

- Board Size: 26 × 48 × 10.6 mm
- Best For: Sensor dashboards, Grove projects, physical controllers
Applications
- Connected Sensor Dashboard
- Grove Sensor Terminal
- Smart Home Controller
- Motion-Based Interaction Device
- Desktop Gadget and Digital Pet
- Portable HMI

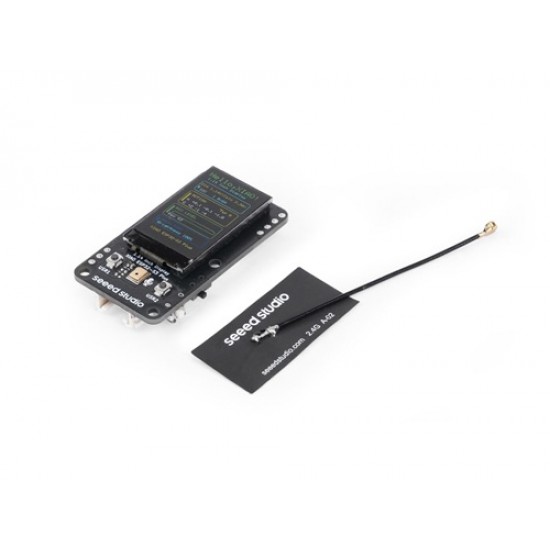

Package Includes
- XIAO 1.14 Inch IPS Display(ESP32-S3)
- 2.4GHz FPC Antenna A-02 for XIAO ESP32-S3
