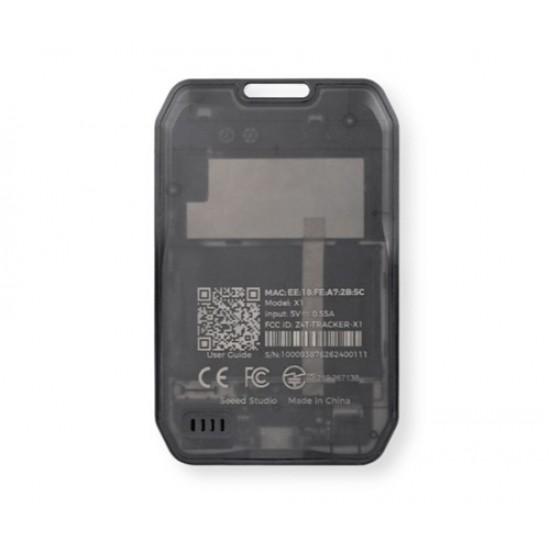

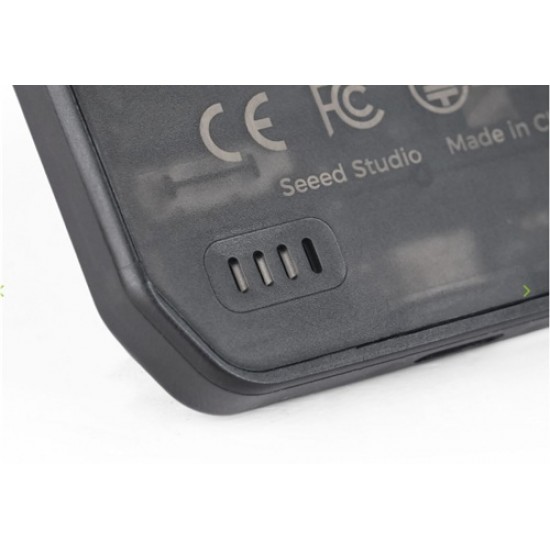

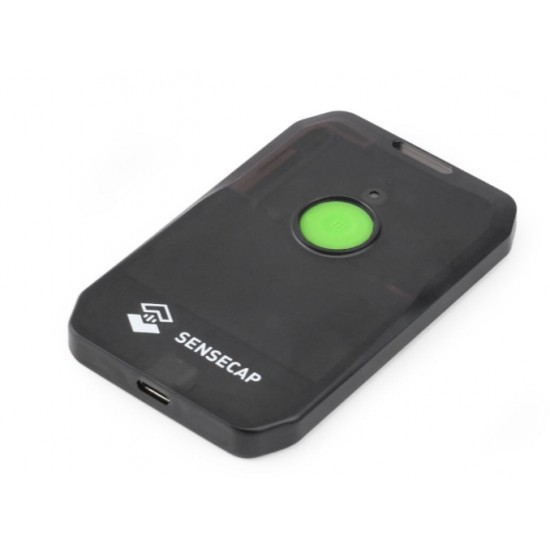

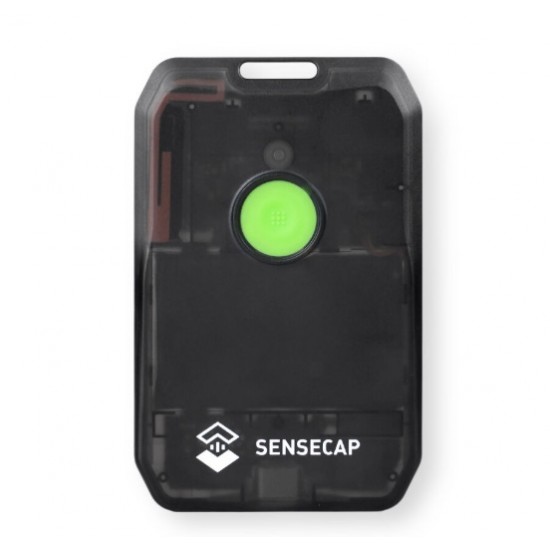

Seeed Studio SenseCAP MeshTracker X1 for Meshtastic
The world's first card-sized Meshtastic® device with dual-band GPS. Built for reliable off-grid communication, MeshTracker X1 is an IP66-rated Meshtastic GPS tracker supporting 863–928 MHz frequencies. Powered by the latest Semtech LR2021 LoRa chip, it features BLE 5.0, USB-C connectivity, up to 5 days of battery life, and a compact, outdoor-ready design.
User Manual / Datasheet / Example Codes Etc.
Specifications
- Main Controller: Nordic nRF52840
- LoRa
- Semtech LR2021
- Frequency Range: 863–928 MHz
- MAX TX Power: 22 dBm
- Wireless Bluetooth (v5.0)
- LED: 1 × RGB
- Buzzer: 1 × buzzer to indicate status
- Button: 1 × button to operate
- Vibration: 1 × DRV2605L
- Sensor
- Air Pressure
- Range: 300–1100 hPa
- Accuracy: ±0.03 hPa
- Resolution: 0.06 Pa
- Temperature(Read from barometer)
- Range: −40–85°C
- Accuracy: ±1°C
- Resolution: 0.0006°C
- Battery
- Battery Capacity: Rechargeable LCD battery, 1100 mAh
- Battery Life Monitoring: Periodic uplink battery level

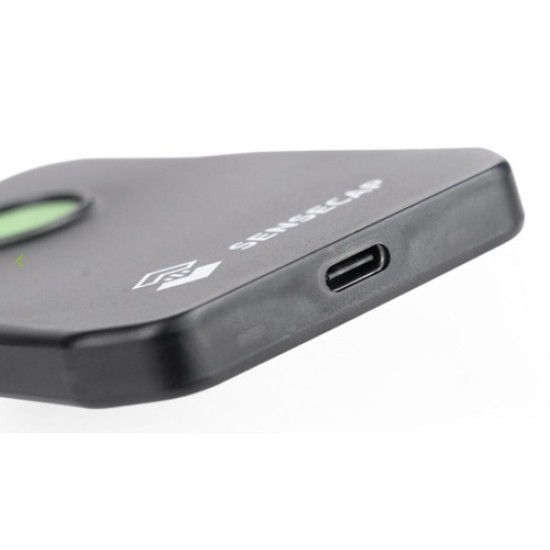

- Charging Protocol: [NEW] USB Type-C charging
- Power Input
- Device: 5 V, 0.55 A
- Battery: 4.4 V, 220 mA
- Fully-charged cut-off voltage: 4.37V
- Charging Temperature Limit: 5 to +45℃
- Antenna: Internal (GNSS/LoRa/Bluetooth)
- Communication Distance: Up to 8 km
- IP Rating: [NEW] IP66

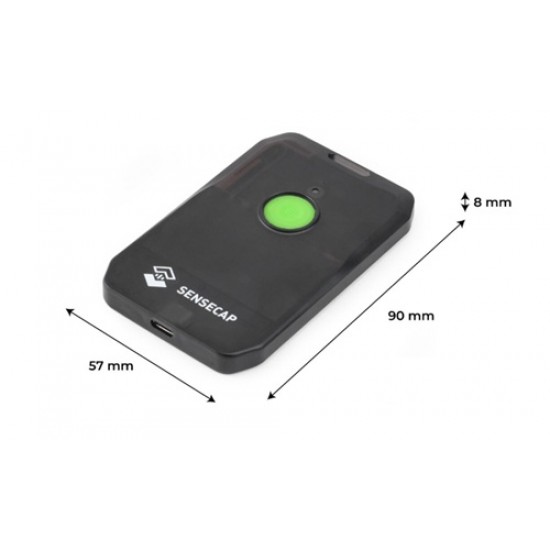

- Dimensions: 90 × 57 × 8 mm
- Device Weight: 45 g
- Operating Temperature: −20 to 60℃
Package Includes
- Meshtracker
- 20cm Type-C Cable
- Leather Keychain
