STMicroelectronics STEVAL-MKI252KA IIS3DWBG1 3-Axis Digital Vibration Sensor Evaluation Kit | MEMS Development Board

STMicroelectronics STEVAL-MKI252KA IIS3DWBG1 3-Axis Digital Vibration Sensor Evaluation Kit | MEMS Development Board
STmicroelectronics
STMicroelectronics STEVAL-MKI252KA IIS3DWBG1 3-Axis Digital Vibration Sensor Evaluation Kit | MEMS Development Board

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
Based on 0 reviews. - Write a review
₹​4,449.00
₹​3,770.34 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 38
B2B GST Credit Available
Price in reward points: 3770
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

STMicroelectronics STEVAL-MKI252KA IIS3DWBG1 3-Axis Digital Vibration Sensor Evaluation Kit | MEMS Development Board

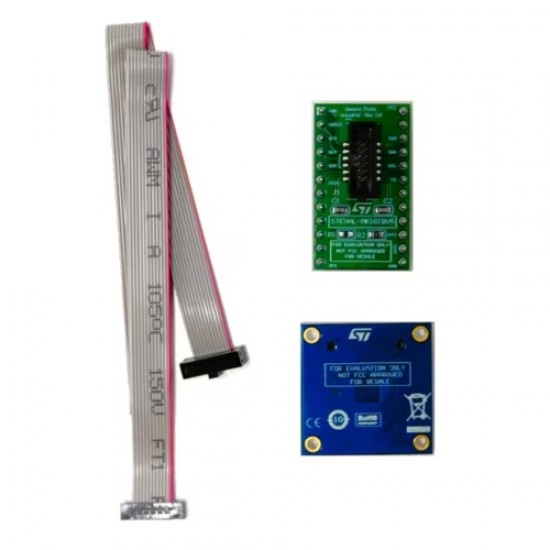

The STEVAL-MKI252KA evaluation kit is based on IIS3DWBG1 3-axis digital vibration sensor, which is connected through flat cable to a generic adapter board (STEVAL-MKIGIBV5) to make it compatible with the STEVAL-MKI109D.

The presence of this square PCB ensures to put the sensor board on the system must be measured via provided adhesive.

The device IIS3DWBG1 is soldered exactly in the center of the board.

The STEVAL-MKIGIBV5 can be plugged into a standard DIL 24 socket. The kit provides the complete IIS3DWBG1 pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.

This adapter is supported by the STEVAL-MKI109D evaluation platform, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC.

After the evaluation, the adapter board can also be plugged in other boards for development and prototype.

The MEMS Studio graphical user interface, or dedicated software routines for customized applications can be used for configuration and communication with the sensor.


Datasheet


Features

  • User-friendly IIS3DWBG1 board
  • Complete IIS3DWBG1 pinout for a standard DIL 24 socket
  • Fully compatible with STEVAL-MKI109D motherboard
  • RoHS compliant


Package Includes

  • 1x STMicroelectronics STEVAL-MKI252KA IIS3DWBG1 3-Axis Digital Vibration Sensor Evaluation Kit | MEMS Development Board
