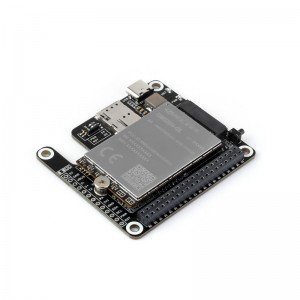

SIM8262E-M2 PCIe to 5G HAT+ for Raspberry Pi 5, High-Speed Networking, Support PCIe Protocol, Raspberry Pi 5 HAT

SIM8262E-M2 PCIe to 5G HAT+ for Raspberry Pi 5, High-Speed Networking, Support PCIe Protocol, Raspberry Pi 5 HAT

PCIe to 5G M.2 adapter plate is designed specifically for Raspberry Pi 5, compatible with 3042/3052 size 5G modules, supporting Gen2 mode and high-speed communication.

The SIM8262E-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA up to 2.4Gbps data transfer.

It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.

User Manual / Datasheet / Example Codes Etc.

Features

• Support PCIe protocol 5G M.2 interface communication protocol, high-speed communication, low delay.
• PCI-E x1 Gen2 mode.
• Only support Raspberry Pi 5.
• Compatible with 3042 / 3052 sized 5G M.2 communication modules.
• Onboard operation indicator, PWR indicator normally on when power on; When using SIM8262 series modules, NET indicator blinking when registering the network; and it is normally on when RM5xx series modules are used. It is easy to learn the working status.
• HAT+ design, with onboard EEPROM chip.
• Onboard power monitoring chip, real-time monitoring the working status of 5G modules.
• Reserve fan vent and the mounting holes to reserve air ducts for PI5 fans, increase air flow and reduce module temperature.

Specifications

• MODEL: SIM8262E-M2 5G HAT+
• 5G Module: SIM8262E-M2
• 5G Standard: 3GPP R16

• 5G: Sub-6G
• Applicable Region: N/A
• Dimensions: 30.0 × 42.0 × 2.3 (mm)

Frequency Band

5G NR: n257, n258, n260, n261
5G

• 5G NR NSA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79
• 5G NR SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79

LTE

• LTE-FDD: B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32
• LTE-TDD: B38, B39, B40, B41, B42, B43
• LAA: -

UMTS

• WCDMA: B1, B5, B8
• GNSS: GPS / GLONASS / BeiDou / Galileo / QZSS


Pacakge Includes

Connecting To PI5 Via PCIe Interface

Onboard Power Monitoring Chip And EEPROM

Pinout Definition

Dimensions

How TO Install
