Gigabit/2.5G Dual Ethernet Industrial Computer Based On Raspberry Pi CM5, Supports 4K Display Output And 4G / 5G Module, Suitable For All Variants Of Compute Module 5, 4-CH RS485

Gigabit/2.5G Dual Ethernet Industrial Computer Based On Raspberry Pi CM5, Supports 4K Display Output And 4G / 5G Module, Suitable For All Variants Of Compute Module 5, 4-CH RS485

The Gigabit / 2.5G Dual Ethernet Industrial Computer is a high-performance and versatile embedded solution designed specifically for the Raspberry Pi Compute Module 5 (CM5). Built for industrial-grade applications, this compact yet powerful system integrates dual Ethernet ports, advanced connectivity options, and robust interfaces to support demanding environments and edge computing tasks.

Engineered for flexibility, it supports all variants of the Compute Module 5, making it ideal for applications such as industrial automation, IoT gateways, smart monitoring systems, and network communication solutions. With support for 4K display output and optional 4G/5G modules, this industrial computer ensures high-speed data processing, seamless connectivity, and reliable performance.

The inclusion of 4-channel RS485 interfaces allows efficient communication with industrial devices, enabling stable long-distance data transmission in harsh environments. Its durable design and wide range of interfaces make it suitable for continuous operation in industrial settings.

User Manual / Datasheet / Example Codes Etc.

Features

• Do not plug or unplug any devices other than USB and HDMI while the system is powered on
• The Type-C port can be used as a USB SLAVE interface for flashing images or powering the device
• Onboard 2 USB port groups, with a total maximum output current of 2A per group (1x USB 3.2 Gen1 + 3x USB 2.0 ports)
• Supports triple independent displays. When a MIPI DSI driver is added, the system will default to connecting to it regardless of whether a screen is connected, and the screen will display in split-screen mode (depending on the system version)
• Onboard M.2 M KEY interface, supports NVMe SSD protocol (or PCIe protocol AI modules)
• Onboard M.2 B KEY interface, supports 4G/5G communication modules
•  4x RS485 (isolated)
• 1x CAN supporting 1Mbps communication rate (isolated)
• 2x Digital Output + 2x Digital Input (isolated)
• 3.5mm headphone jack (supports microphone), PH2.0 speaker connector
• Single controllable buzzer
• Onboard EEPROM and encryption chip
• Onboard BOOT button: Press and hold the BOOT button before powering on, then connect to a PC via Type-C to enter flashing mode
• When using Type-C for flashing, do not connect other devices; otherwise, insufficient power may cause the device not to be recognized

Specifications

• CM5 socket: Suitable for all variants of Compute Module 5
• Networking
• 1000M Ethernet RJ45 port × 1
• 2500M Ethernet RJ45 port × 1
• USB
• USB 3.2 Gen1 port × 1
• USB 2.0 port × 3
• Video: HDMI interface × 1, supports 4K display output
• M.2
• M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242)
• M.2 B KEY, supports connecting 4G / 5G communication module
• Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants
• Serial Interface
• 4 × RS485 version
• 1 × CAN with up to 1Mbps communication rate
• Digital Input/Output: 2 × digital outputs + 2 × digital inputs
• Audio: 3.5mm audio jack (microphone support), PH2.0 speaker header
• Fan header: 5V, 4PIN JST-SH PWM fan header
• Buzzer: 1-ch controllable buzzer
• Other: Onboard EEPROM and encryption chip
• Power Input: 7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port
• Dimensions: 136.00 × 92.00 × 39.50 (mm)

Package Includes

• IPCBOX-CM5-A metal case x1
• CM5-IPC-BASE-A-4RS485 baseboard x1
• Power adapter cable 15cm x1
• Black nylon spacers x4
• Screws pack x1
• Screwdriver x1
• 6PIN 3.5mm pitch double-layer terminal block x1
• 4PIN 3.5mm pitch double-layer terminal block x1
• Rail-mount buckle x1
• Pink thermal tapes x1

More Rich Interfaces

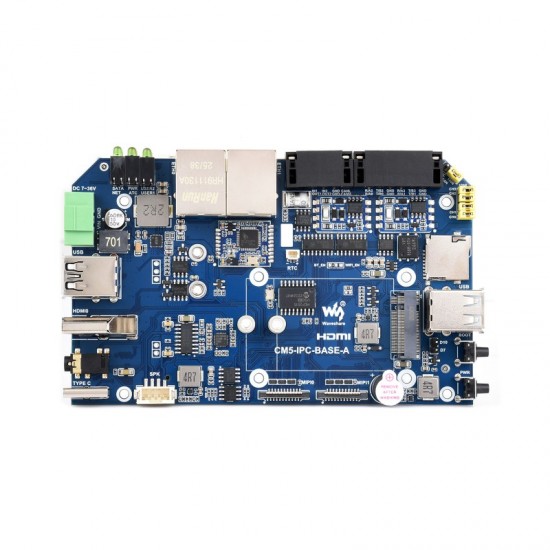

What's On Board

Dimensions
