Gigabit/2.5G Dual Ethernet Industrial Computer Based On Raspberry Pi CM5, Supports 4K Display Output And 4G / 5G Module, Suitable For All Variants Of Compute Module 5, 2-CH RS485 & 2-CH RS232 Ports

Gigabit/2.5G Dual Ethernet Industrial Computer Based On Raspberry Pi CM5, Supports 4K Display Output And 4G / 5G Module, Suitable For All Variants Of Compute Module 5, 2-CH RS485 & 2-CH RS232 Ports

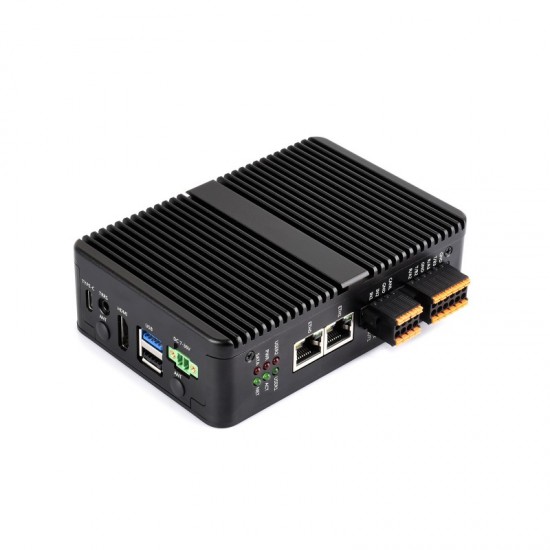

This industrial-grade computer is designed for high-performance embedded and edge computing applications, powered by the Raspberry Pi Compute Module 5 (CM5). Featuring dual Ethernet ports with Gigabit and 2.5G support, it ensures reliable and high-speed network connectivity for demanding industrial environments.

Equipped with 2-channel RS485 and 2-channel RS232 interfaces, the device enables seamless communication with a wide range of industrial equipment, making it ideal for automation, data acquisition, and IoT deployments. Its robust design supports stable operation in harsh conditions.

The system supports 4K display output, delivering crisp visuals for monitoring, control panels, and multimedia applications. Additionally, it offers compatibility with 4G/5G communication modules, enabling remote connectivity and real-time data transmission in distributed systems.

User Manual / Datasheet / Example Codes Etc.

Features

• Do not plug or unplug any devices other than USB and HDMI while the system is powered on
• The Type-C port can be used as a USB SLAVE interface for flashing images or powering the device
• Onboard 2 USB port groups, with a total maximum output current of 2A per group (1x USB 3.2 Gen1 + 3x USB 2.0 ports)
• Supports triple independent displays. When a MIPI DSI driver is added, the system will default to connecting to it regardless of whether a screen is connected, and the screen will display in split-screen mode (depending on the system version)
• Onboard M.2 M KEY interface, supports NVMe SSD protocol (or PCIe protocol AI modules)
• Onboard M.2 B KEY interface, supports 4G/5G communication modules
• Optional versions: 2x RS485 + 2x RS232
• 1x CAN supporting 1Mbps communication rate (isolated)
• 2x Digital Output + 2x Digital Input (isolated)
• 3.5mm headphone jack (supports microphone), PH2.0 speaker connector
• Single controllable buzzer
• Onboard EEPROM and encryption chip
• Onboard BOOT button: Press and hold the BOOT button before powering on, then connect to a PC via Type-C to enter flashing mode
• When using Type-C for flashing, do not connect other devices; otherwise, insufficient power may cause the device not to be recognized

Specifications

• CM5 socket: Suitable for all variants of Compute Module 5
• Networking
• 1000M Ethernet RJ45 port × 1
• 2500M Ethernet RJ45 port × 1
• USB
• USB 3.2 Gen1 port × 1
• USB 2.0 port × 3
• Video: HDMI interface × 1, supports 4K display output
• M.2
• M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242)
• M.2 B KEY, supports connecting 4G / 5G communication module
• Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants
• Serial Interface
• 2 × RS485 + 2 × RS232
• 1 × CAN with up to 1Mbps communication rate
• Digital Input/Output: 2 × digital outputs + 2 × digital inputs
• Audio: 3.5mm audio jack (microphone support), PH2.0 speaker header
• Fan header: 5V, 4PIN JST-SH PWM fan header
• Buzzer: 1-ch controllable buzzer
• Other: Onboard EEPROM and encryption chip
• Power Input: 7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port
• Dimensions: 136.00 × 92.00 × 39.50 (mm)

Package Includes

• IPCBOX-CM5-B metal case x1
• CM5-IPC-BASE-A-2RS485 baseboard x1
• Power adapter cable 15cm x1
• Black nylon spacers x4
• Screws pack x1
• Screwdriver x1
• 6PIN 3.5mm pitch double-layer terminal block x1
• 4PIN 3.5mm pitch double-layer terminal block x1
• Rail-mount buckle x1
• Pink thermal tapes x1

More Rich Interfaces

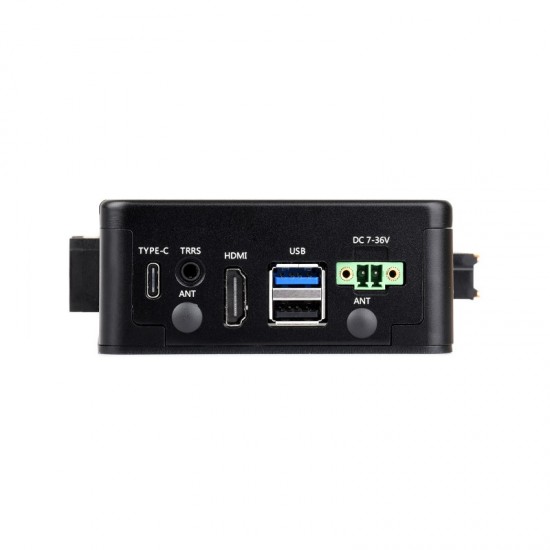

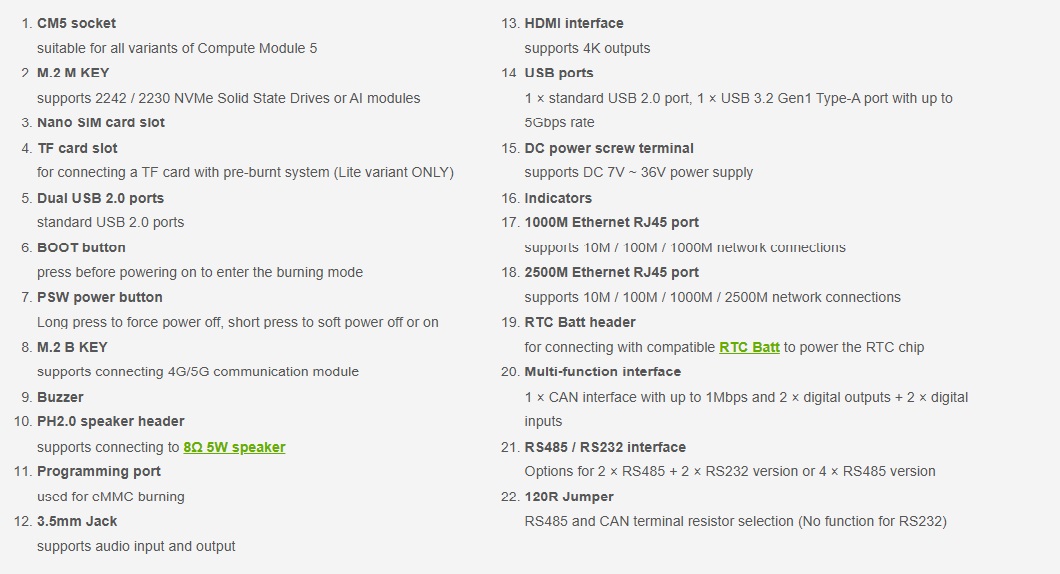

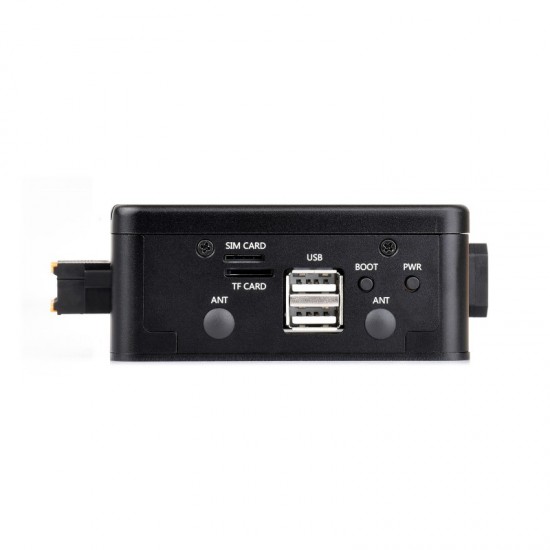

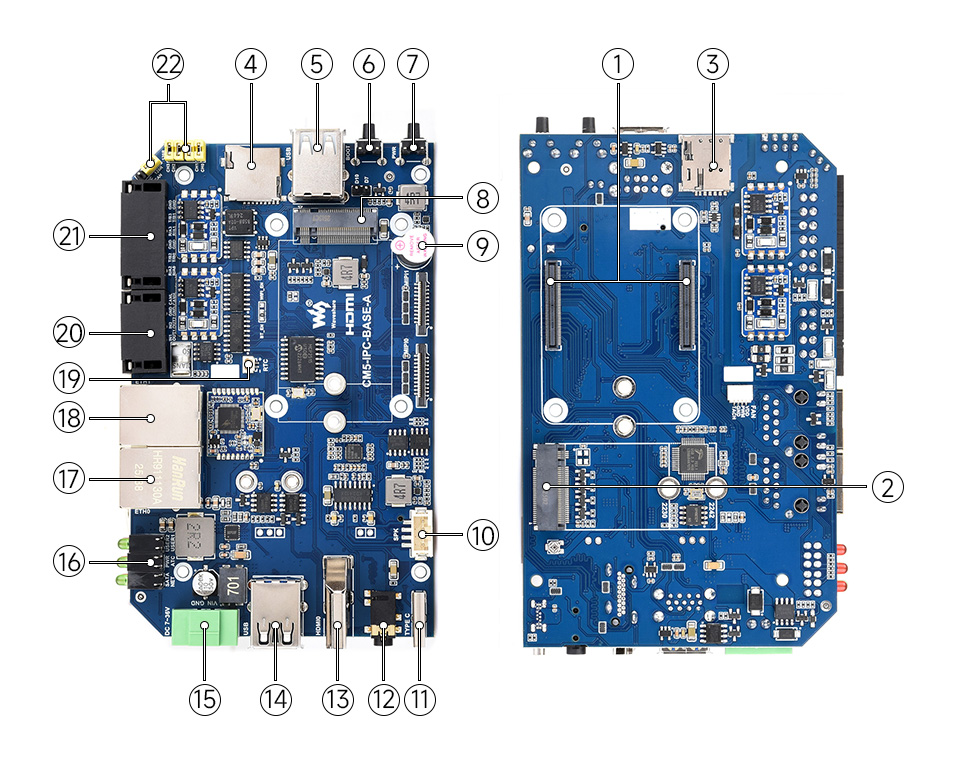

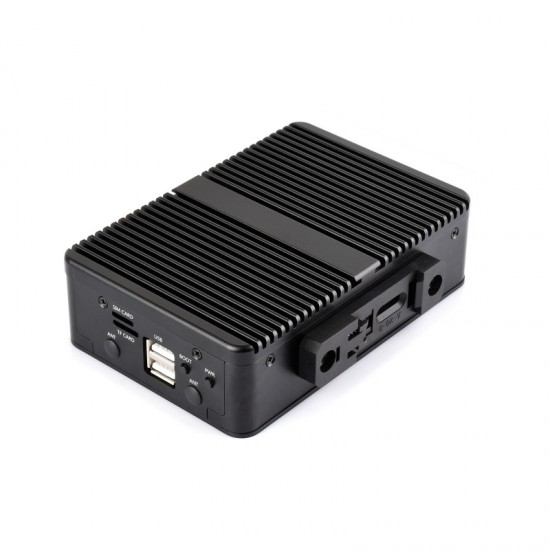

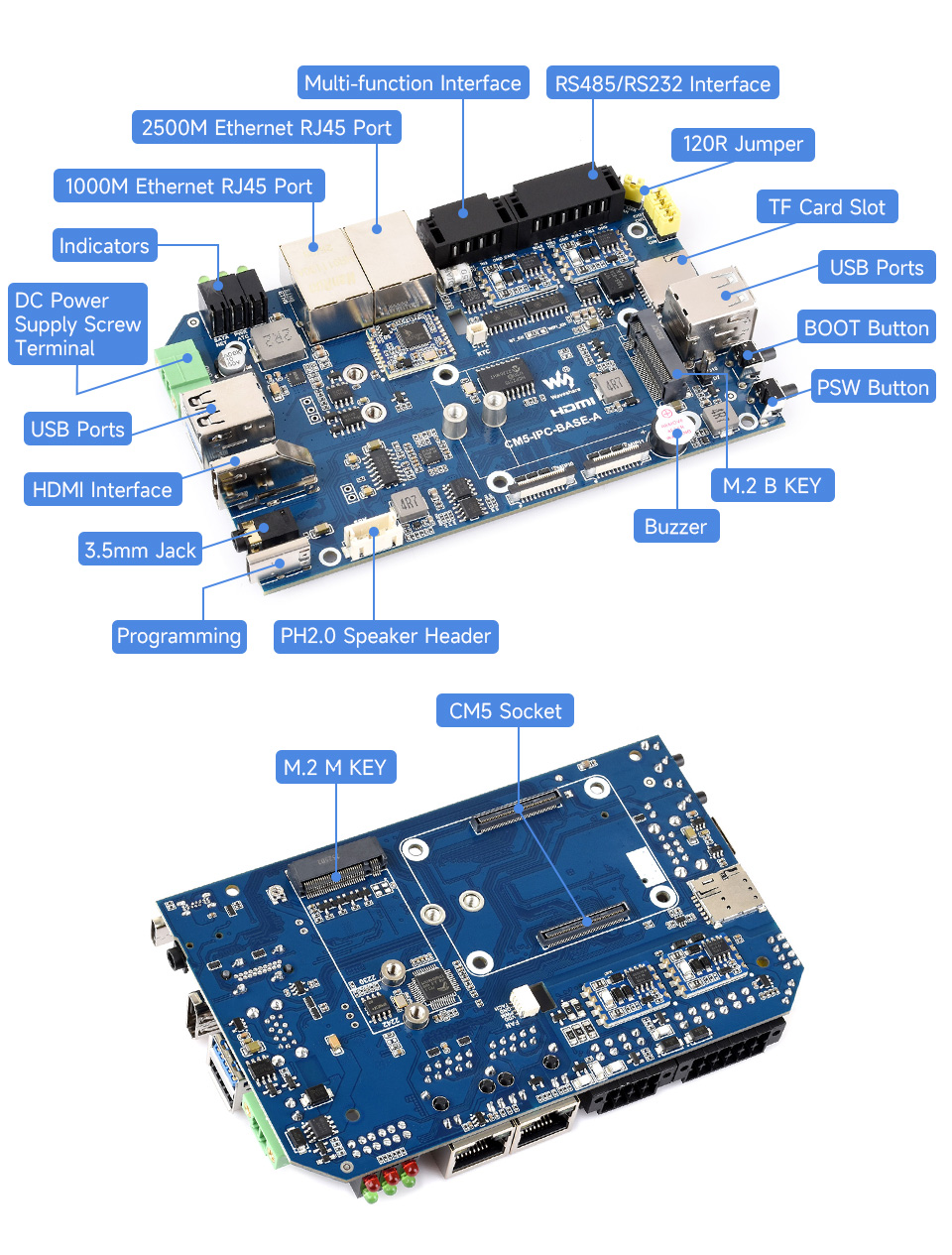

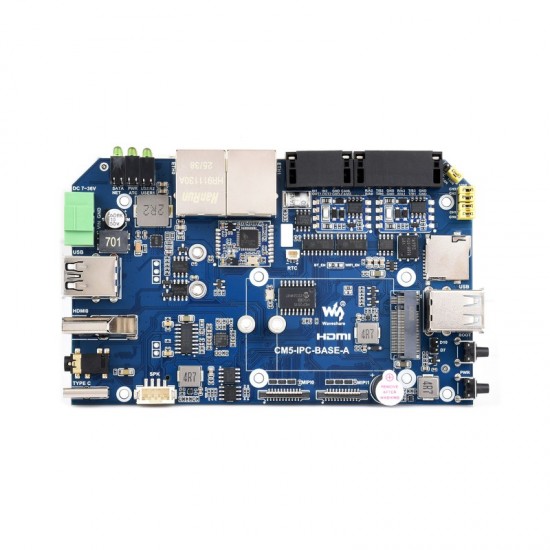

What's On Board

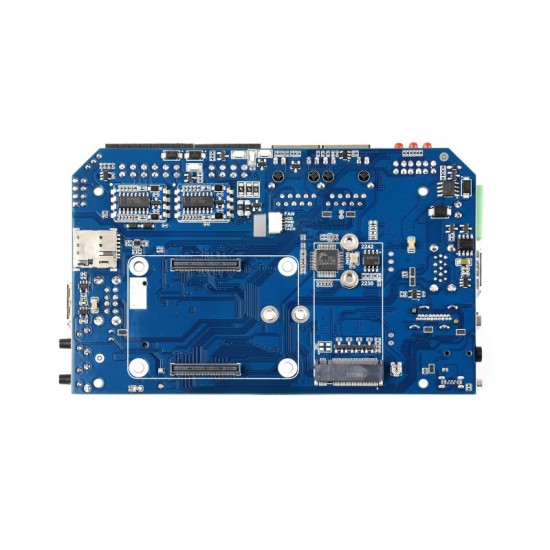

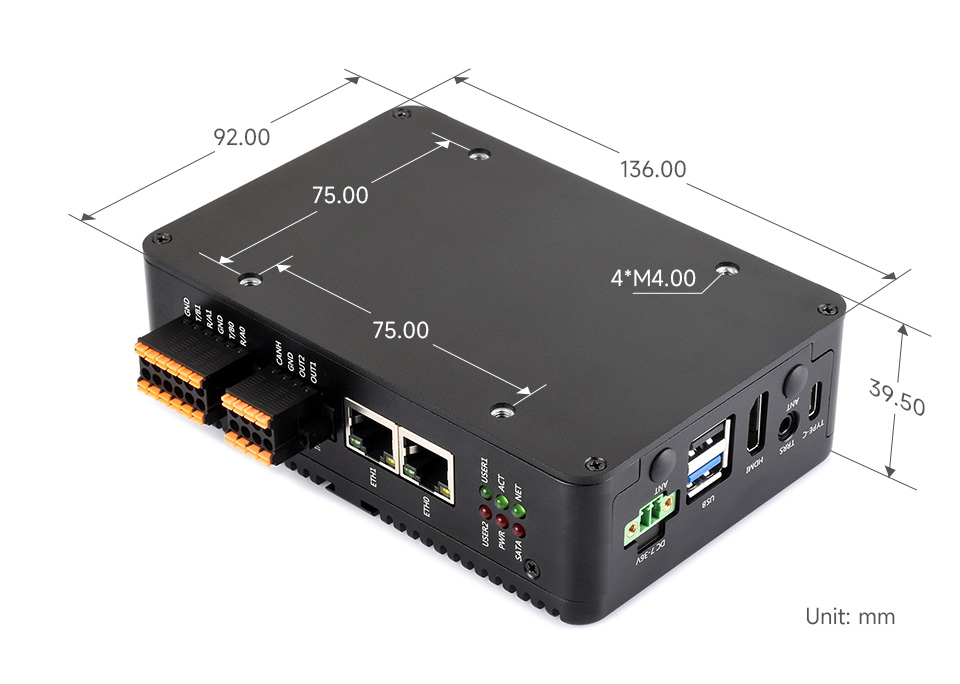

Dimensions
