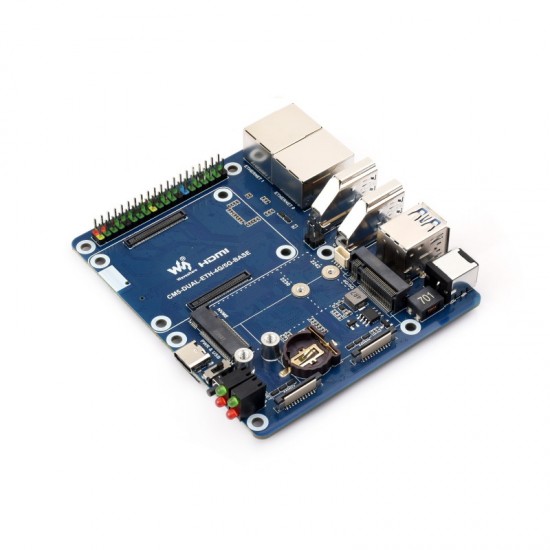

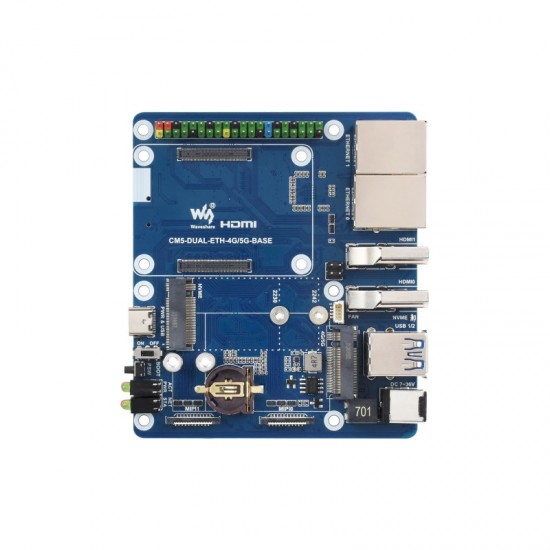

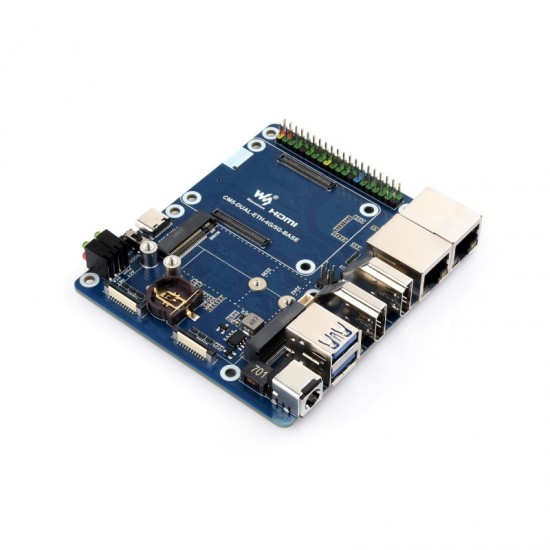

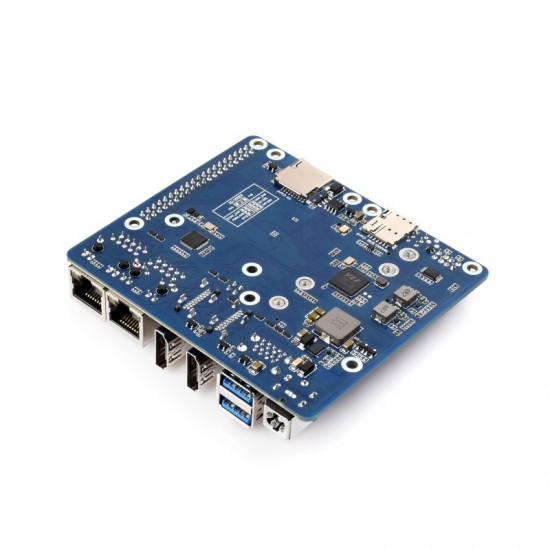

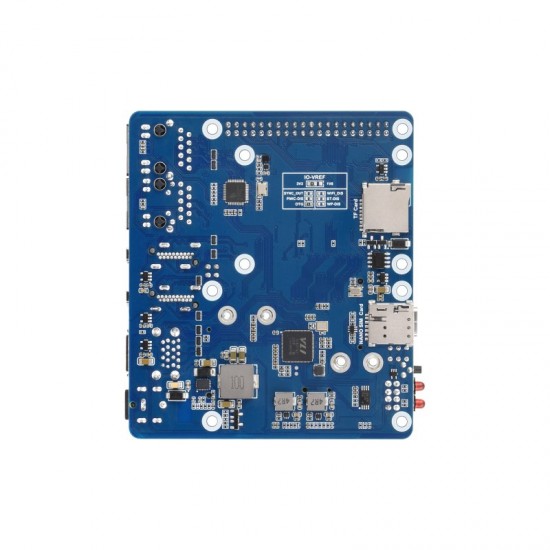

Dual Ethernet Base Board For Raspberry Pi CM5, Supports 4G / 5G Module, Dual 4K Display Outputs And Dual MIPI Interfaces, Onboard 40PIN GPIO Header And Dual USB 3.2 Gen1 Ports, PoE Module Support
As the IO board for the Raspberry Pi Compute Module 5, CM5-DUAL-ETH-4G/5G-BASE is a baseboard that can be used with the Raspberry Pi Compute Module 5. It features powerful functionality with onboard dual USB 3.2 Gen1 ports, M.2 M KEY, M.2 B KEY (4G/5G module interface), and dual network ports for user convenience
User Manual / Datasheet / Example Codes Etc.
Specificatons
- CM5 socket: Suitable for all variants of Compute Module 5
- Networking: 1000M Ethernet RJ45 port × 1 & 2500M Ethernet RJ45 port × 1
- Connector: Raspberry Pi 40PIN GPIO header
- USB: USB 3.2 Gen1 × 2
- MIPI: 4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector)
- Video: HDMI port × 2, supports dual 4K display outputs
- M.2: M.2 M KEY (PCIe Gen2/3 x 1)
- M.2 (4G / 5G): M.2 M KEY, supports connecting 4G / 5G communication module
- Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants
- Fan Header: 5V, 4PIN JST-SH PWM fan connector
- Power Input: 7V~36V wide voltage range DC jack, 5V 5A Type-C port
- Dimensions: the base board: 99.60 × 87.00 (mm)
Package Includes
- CM5-DUAL-ETH-4G/5G-BASE x1
- Screws pack x1

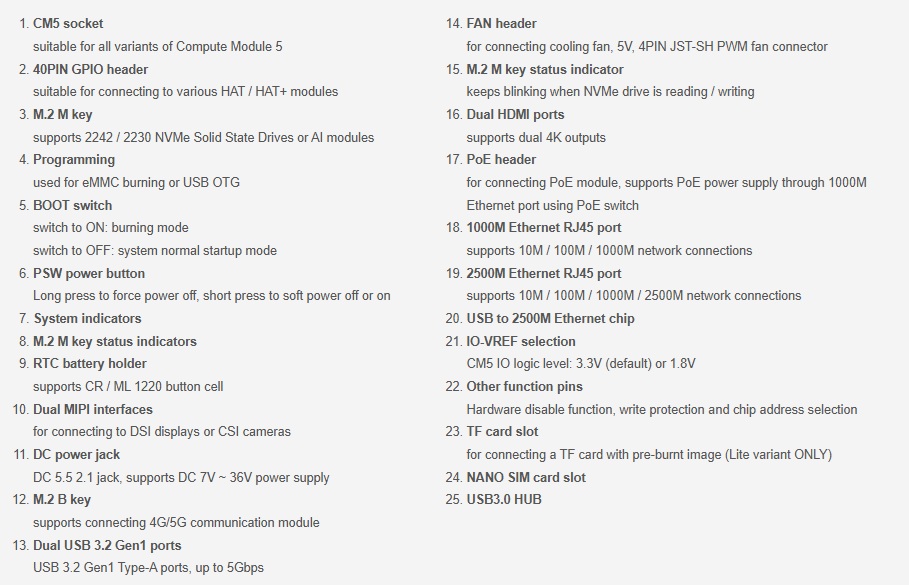

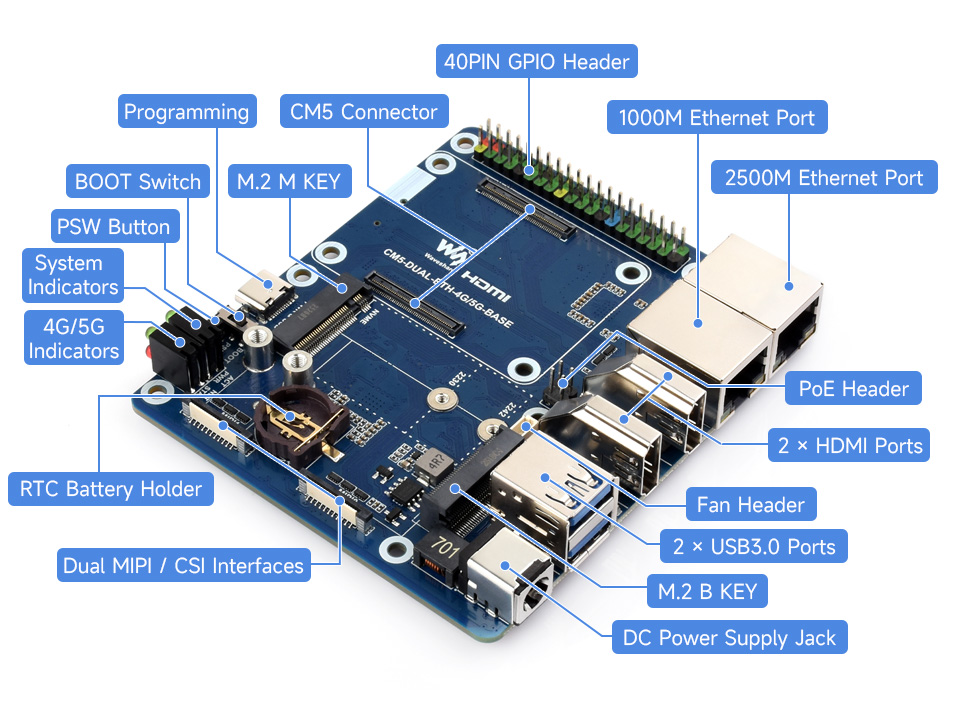

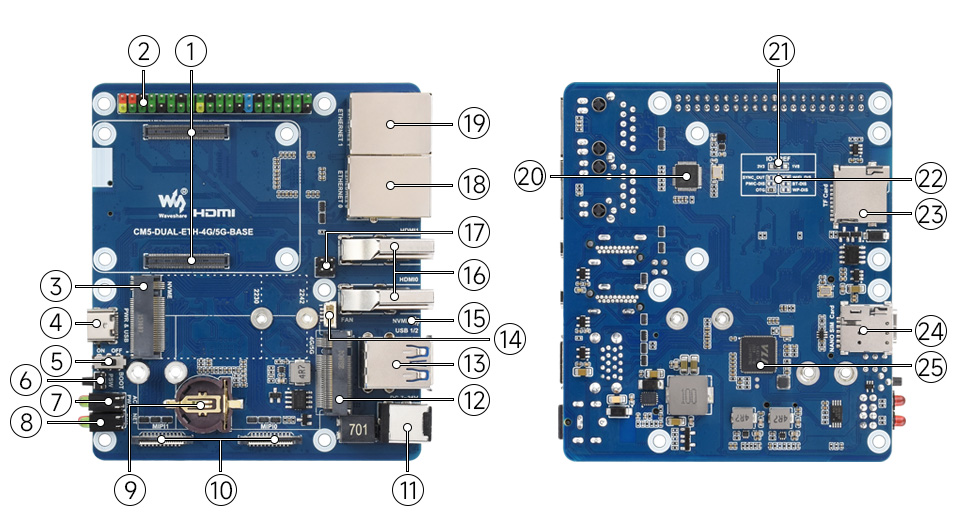

What's On Board

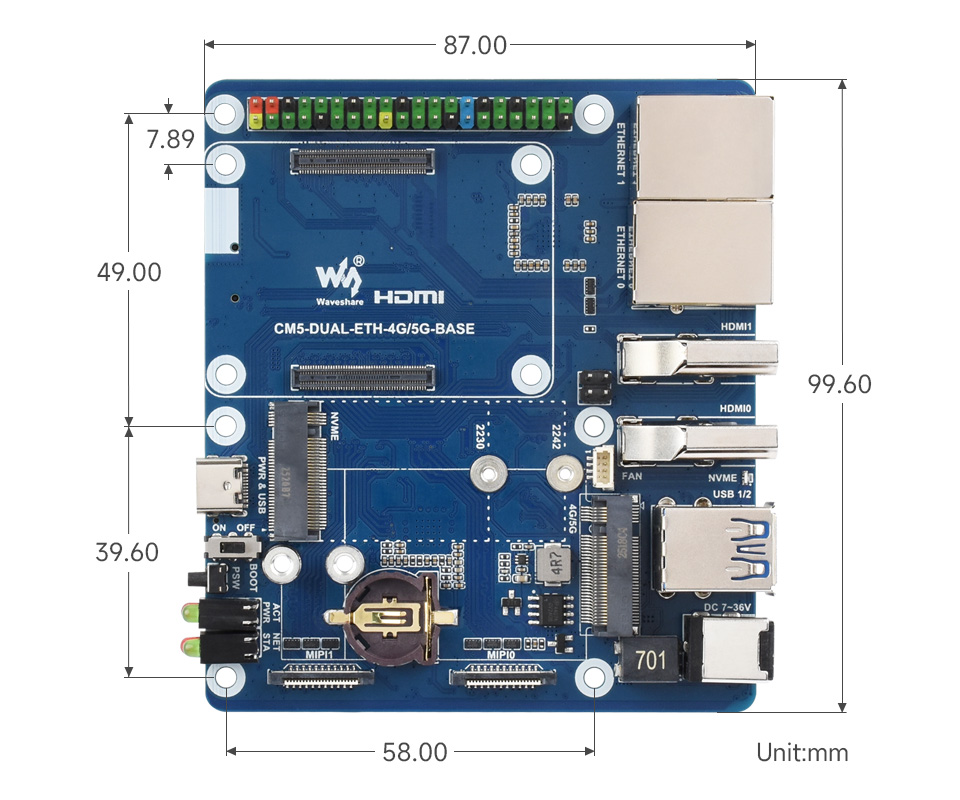

Dimensions
