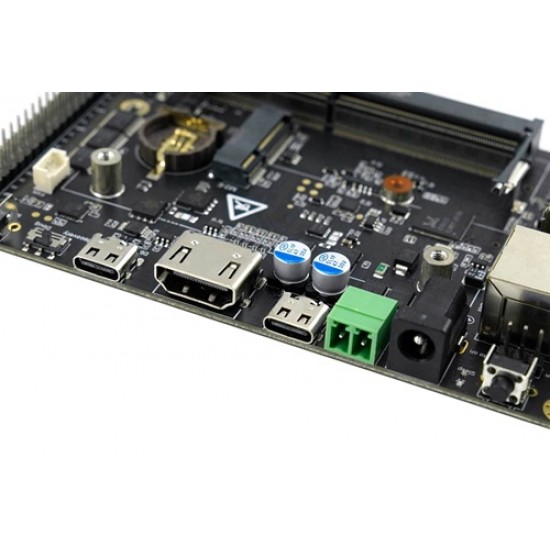

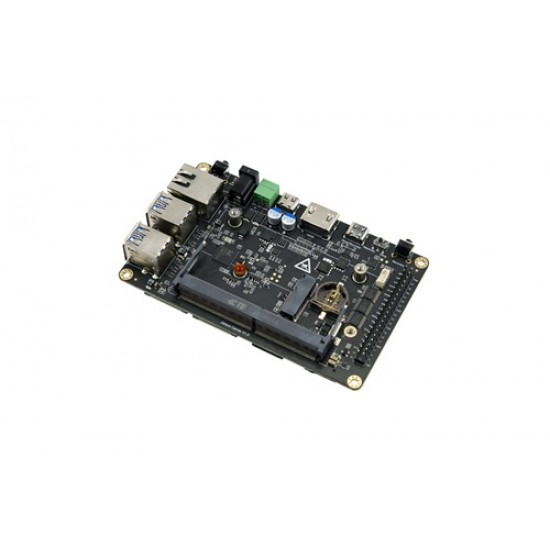

DF ROBOT Jetson Carrier Board for NVIDIA Jetson Nano & Xavier NX (Edge AI Expansion)
NVIDIA Jetson Carrier Board serves as a compact edge‑AI development platform designed to transform embedded machine‑learning concepts into real‑world deployments. Designed for NVIDIA® Jetson Nano™, Jetson Xavier™ NX, and Jetson TX2™ NX system‑on‑modules, this AI expansion baseboard delivers computing capability ranging from 472 GFLOPS to 21 TOPS for workloads such as computer vision, neural‑network inference, and generative AI experimentation. The embedded AI baseboard integrates rich connectivity including multi‑camera interfaces, high‑speed NVMe storage expansion, and a 40‑pin header compatible with the Raspberry Pi ecosystem, providing a practical foundation for robotics research, intelligent vision systems, and advanced STEM Education platforms.
User Manual / Datasheet / Example Codes Etc.
Note: This product is a Carrier Board only. The NVIDIA Jetson System-on-Module (SoM) is NOT included and must be purchased separately to function.
Features
- Compatible with Jetson Xavier™ NX, Jetson TX2™ NX, and Jetson Nano™ modules
- Edge AI computing capability up to 21 TOPS depending on installed SoM
- 2× dual-channel and 1× quad-channel MIPI‑CSI interfaces supporting up to 4K cameras
- M.2 Key‑M slot supporting high‑speed NVMe SSD storage
- M.2 Key‑E slot for Wi‑Fi and Bluetooth module expansion
- 4× USB 3.0 ports for high‑bandwidth peripherals
- Gigabit Ethernet networking for fast data transfer
- HDMI 2.0 output for high‑resolution display
- 40‑pin GPIO header compatible with Raspberry Pi accessory ecosystem
- Wide voltage input (DC 12V–24V) with PD 60W power support
- Reverse‑connection protection and ESD protection
- Compact embedded AI carrier board form factor
Applications
- ROS Robotics: Building autonomous rovers, robotic arms, and drones with SLAM capabilities.
- Edge AI Vision: Real-time object detection, face recognition, and automated license plate recognition (ALPR).
- Generative AI: Running localized Large Language Models (LLMs) and image generation tools.
- Smart IoT Gateways: Aggregating sensor data and performing local anomaly detection before cloud transmission.
- STEM Education: Teaching advanced AI concepts using tangible, industrial-standard hardware.

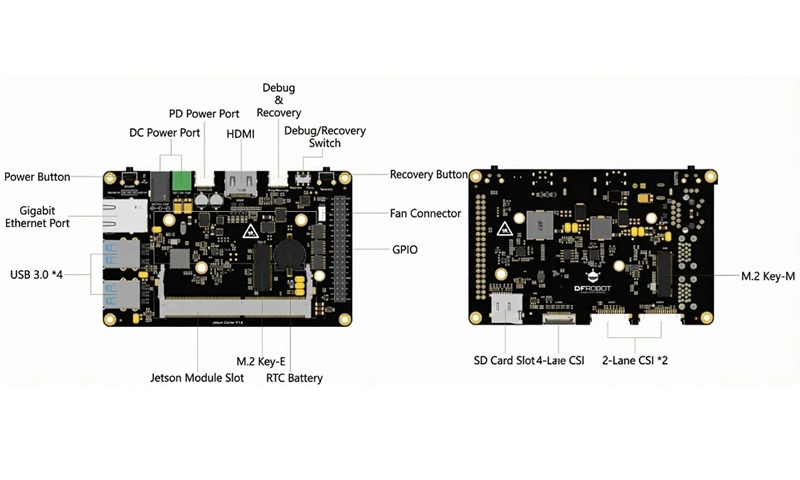

Specifications
- Compatible Modules: Jetson Xavier™ NX, Jetson TX2™ NX, Jetson Nano™
- Power:
- PD 60W protocol support
- DC 12V-24V power jack
- Image Capture Interfaces:
- 2x dual-channel MIPI-CSI
- 1x quad-channel MIPI-CSI
- USB: 4x USB 3.0
- Network: Gigabit Ethernet port
- Video Output: HDMI 2.0
- Storage Expansion:
- M.2 Key-M (supports NVMe SSD)
- MicroSD card slot
- Wireless Expansion: M.2 Key-E (for Wi-Fi/Bluetooth module)
- Debugging/Flashing: DEBUG and system flashing interface
- GPIO: 40-pin GPIO header

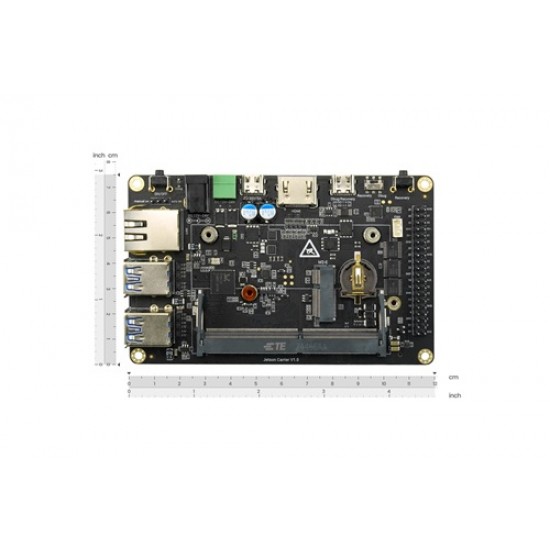

- Dimensions: 75mm x 120mm
Package Includes
- Jetson Carrier Board
- Pluggable Terminal Block (DB2EK-3.81-2P-GN-S-Female)
- M2.5 Mounting Screws
- Jumper Cap
