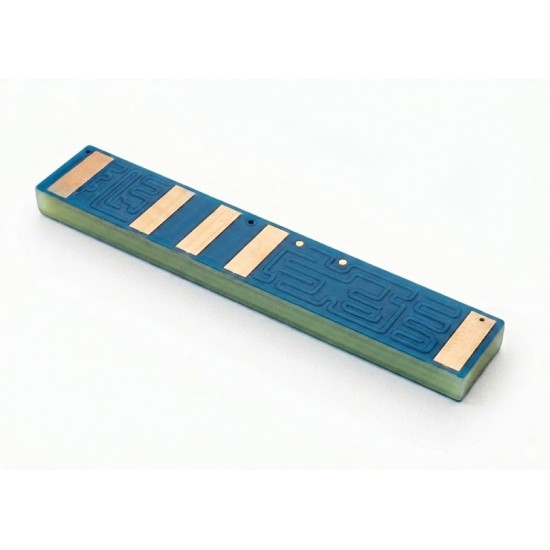

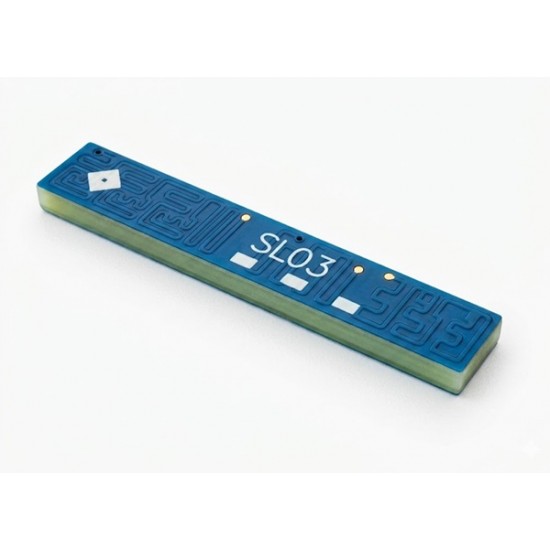

SL03 SMD Patch Antenna 824-960MHz /1710-2690MHz /3300-5000MHz | 23mm*3.3mm*1.6mm
The SL03 SMD Patch Antenna is a compact multi-band embedded antenna designed for cellular, LTE, and 5G wireless applications. With support for wide frequency bands from 824MHz to 5000MHz, it is ideal for IoT devices, industrial gateways, smart meters, trackers, wireless modules, and embedded communication systems.
Measuring only 23mm × 3.3mm × 1.6mm, this ultra-compact SMD antenna is optimized for space-constrained PCB designs while delivering reliable RF performance across GSM, LTE, and Sub-6GHz 5G bands. Its surface-mount design enables easy integration into modern high-density electronic products. The antenna provides stable signal reception, efficient radiation performance, and 50Ω impedance matching for seamless connectivity.
Features
- Wide frequency coverage: 824–960MHz / 1710–2690MHz / 3300–5000MHz
- Compact SMD form factor for embedded applications
- Supports GSM, LTE, NB-IoT, Cat-M, and Sub-6GHz 5G
- Optimized for PCB mounting
- 50Ω impedance matching
- Stable radiation efficiency and signal performance
- Suitable for IoT, smart devices, and wireless communication products
Specifications
- Model: SL03
- Type: SMD Patch Antenna
- Frequency Bands
- 824–960MHz
- 1710–2690MHz
- 3300–5000MHz

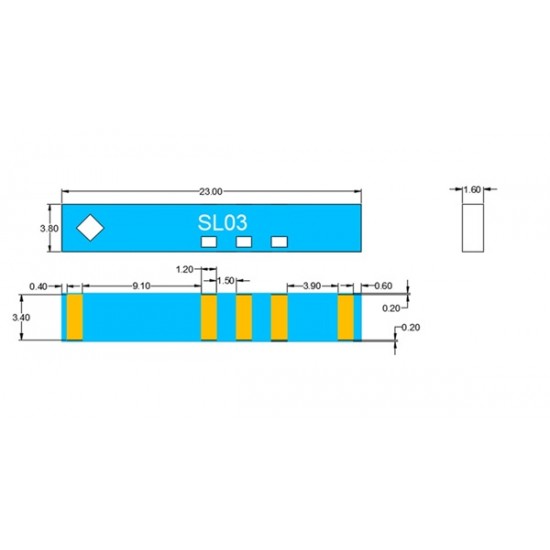

- Dimensions: 23mm × 3.3mm × 1.6mm
- Mounting Type: Surface Mount (SMD)
- Impedance: 50Ω
- Application: LTE/4G/5G, IoT, Wireless Communication
- Polarization: Linear
- Operating Temperature: Industrial-grade compatible
Applications
- LTE & 5G Modules
- IoT Devices
- Smart Meters
- GPS Trackers
- Industrial Automation
- Wireless Routers & Gateways
- Embedded Communication Systems
Package Includes
- 1x SL03 SMD Patch Antenna 824-960MHz /1710-2690MHz /3300-5000MHz | 23mm*3.3mm*1.6mm
