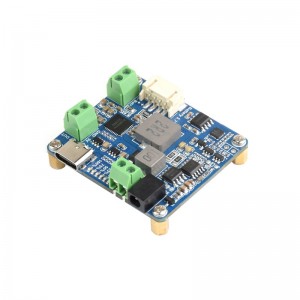

Solar Power Manager Module (D), Supports 6V~24V Solar Panel and Type-C Power Adapter, 5V/3A Regulated Output With Battery Holder

Solar Power Manager Module (D), Supports 6V~24V Solar Panel and Type-C Power Adapter, 5V/3A Regulated Output With Battery Holder

This solar power management module is designed for 6V~24V solar panels. It can charge the 3.7V rechargeable Li battery through a solar panel or Type-C connection and provides 5V/1A regulated output. The module features MPPT (Maximum Power Point Tracking) function and multi-protection circuits, therefore, it can keep working with high efficiency, stability, and safety. It is suited for solar-powered, low-power IoT, and other environmental protection projects. Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel.

User Manual / Datasheet / Example Codes Etc.

Features

• Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel.
• Supports solar panel / Type-C connection battery charging.
• For 6V~24V solar panel, supports automatic voltage adaptation, DC-002 jack input, or screw terminal input, with input reverse connection protection.
• Several LED indicators, for monitoring the status of solar panels and batteries.
• Multi-protection circuits: overcharge / over-discharge / reverse protection/overheat/over current, stable and safe to use.

Specifications

• SOLAR IN : 6V ~ 24V
• RECHARGING : Solar panel, power adapter, USB
• BATTERY : 3x 18650 Li-ion battery (NOT included)

• USB INPUT : 5V (TYPE-C, with PD quick charge support)

• 5V OUTPUT :  5V / 3A (TYPE-C, screw terminal)

• RECHARGING CUTOFF VOLTAGE : 4.2V ± 1％

• OVER DISCHARGING PROTECTION VOLTAGE : 3.0V ± 1％

• SOLAR PANEL RECHARGING EFFICIENCY : ~78%

• USB RECHARGING EFFICIENCY : ~93%

• BATTERIES BOOST OUTPUT EFFICIENCY : ~90%

• QUIESCENT CURRENT (MAX) : <2mA
• OPERATING TEMPERATURE : -40℃ ~ 85℃
• DIMENSIONS (MM) : 45.0 × 40.0 × 10.1

Package Includes

• Solar Power Manager (D) x1
• Battery holder x1
• Screws pack x1

What's On Board
