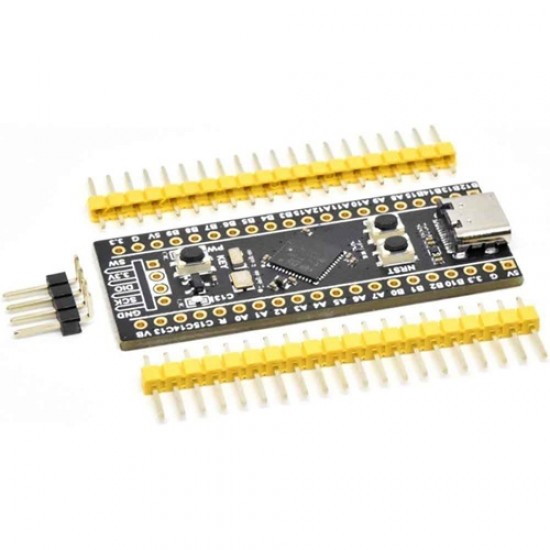

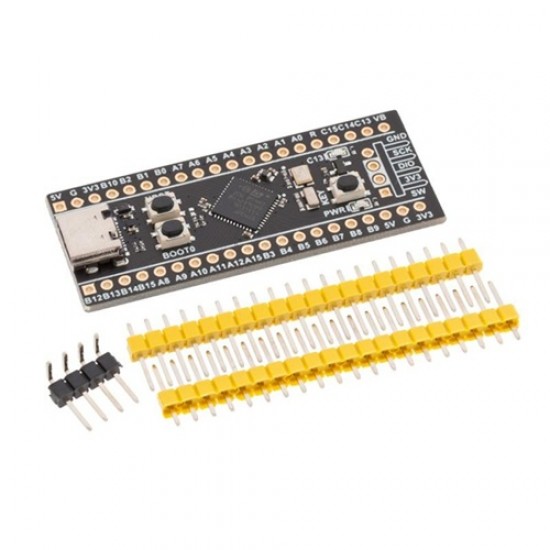

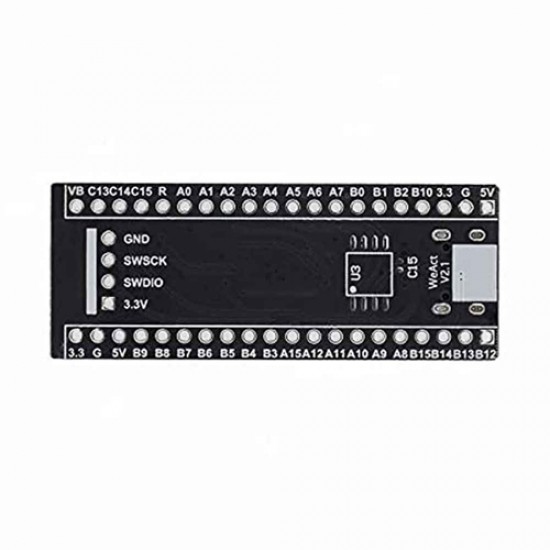

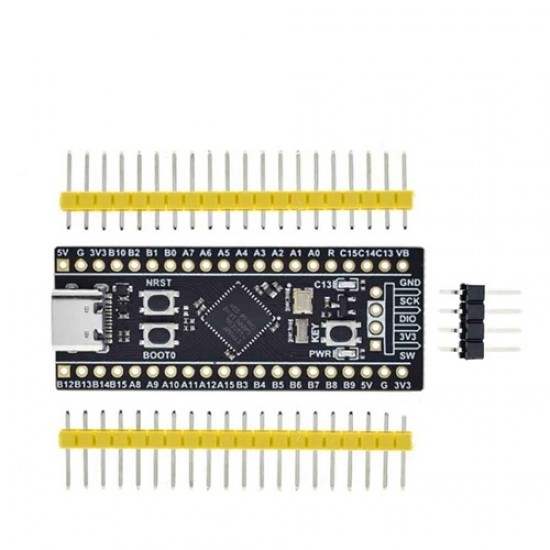

STM32F401CCU6 Minimum System Development Board
The STM32F401CCU6 Minimum System Development Board is a compact, high-performance development platform built around the STM32F401CCU6 microcontroller featuring an ARM Cortex-M4 core with hardware floating-point unit (FPU). Designed for embedded developers, students, and IoT enthusiasts, this board provides a cost-effective solution for rapid prototyping, firmware development, and learning STM32 microcontrollers.
Running at up to 84 MHz, the STM32F401CCU6 offers 256 KB Flash memory and 64 KB SRAM, delivering the performance required for real-time control, sensor interfacing, digital signal processing, robotics, industrial automation, and communication applications. The board exposes nearly all GPIO pins through standard headers, making it easy to connect sensors, displays, wireless modules, and other peripherals.
Features
- Built around the STM32F401CCU6 ARM Cortex-M4 32-bit microcontroller with hardware Floating Point Unit (FPU).
- Operates at a maximum clock frequency of 84 MHz for high-performance embedded applications.
- 256 KB Flash memory and 64 KB SRAM for code and data storage.
- Onboard USB Type-C (or Mini USB on some versions) for power and USB communication.
- Supports SWD debugging and programming using ST-LINK.
- Onboard 3.3V voltage regulator for stable power supply.
- BOOT0 push button/jumper for easy boot mode selection.
- Reset push button and power/status LED indicators.
- User LED connected to PC13 for testing and debugging.
- All GPIO pins are broken out to headers for easy prototyping.
- Breadboard-friendly form factor after soldering pin headers.
- Compatible with STM32CubeIDE, STM32CubeMX, Keil MDK, IAR Embedded Workbench, PlatformIO, and Arduino IDE (STM32 Core).
- Ideal for IoT, robotics, motor control, industrial automation, sensor interfacing, and embedded system development.
Specifications
- Microcontroller: STM32F401CCU6
- CPU Core: ARM Cortex-M4 32-bit with FPU
- Maximum Clock Speed: 84 MHz
- Flash Memory: 256 KB
- SRAM: 64 KB
- Operating Voltage: 2.0V–3.6V (MCU), 3.3V logic
- USB Interface: USB Type-C (board dependent)
- Debug Interface: SWD (Serial Wire Debug)
- External Crystal: 25 MHz (board version dependent)
- Communication Interfaces: UART/USART, SPI, I²C, I²S, USB OTG, SDIO, IrDA, LIN
- Analog Features: 12-bit ADC
- Boot Selection: BOOT0 Push Button/Jumper
- Board Dimensions: Approximately 53 × 20 mm
Package Includes
- 1x STM32F401CCU6 Minimum System Development Board
