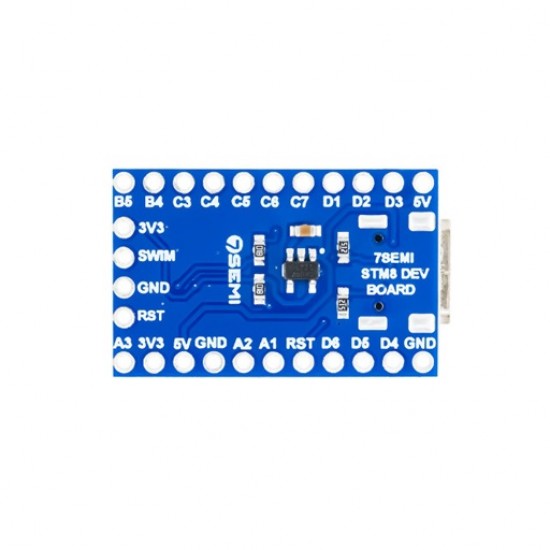

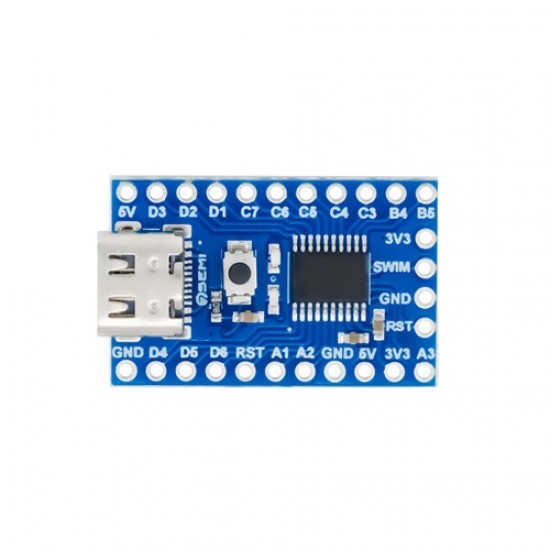

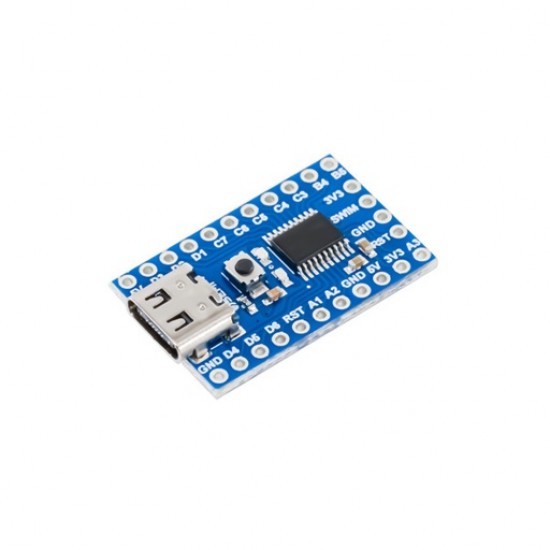

STM8S003F3 Anchor STM8 Mini Development Board
The 7Semi STM8S003F3P6 Development Board is a compact and cost-effective 8-bit microcontroller platform based on STMicroelectronics' STM8S003F3P6 MCU. Designed for embedded system development, industrial control, educational projects, automation systems, and low-power applications, this board provides access to all major peripherals of the STM8 microcontroller in a breadboard-friendly format.
Featuring a modern USB Type-C connector, onboard reset circuitry, SWIM programming interface, and complete GPIO breakout access, the board serves as an ideal platform for learning STM8 programming as well as developing production-ready embedded applications.
The STM8S003F3P6 combines high performance with low power consumption, offering up to 16 MHz operation, multiple timers, ADC channels, communication peripherals, and robust industrial-grade reliability.
Features
- Compact STM8S003F3P6 Development Platform – Built around the reliable STM8S003F3P6 microcontroller, this board provides an affordable and efficient platform for learning embedded programming, prototyping electronics projects, and developing industrial control applications.
- Modern USB Type-C Connectivity – Equipped with a USB Type-C connector for convenient power input and programming support, offering improved durability and easier cable insertion compared to traditional Micro-USB designs.
- Rich Peripheral Integration – The STM8S003F3P6 includes built-in UART, SPI, I²C, timers, ADC channels, PWM outputs, and interrupt capabilities, allowing a wide variety of sensors, displays, communication modules, and actuators to be connected.
- SWIM Programming and Debugging Support – Dedicated SWIM and RESET pins provide seamless compatibility with ST-Link programmers and debuggers, simplifying firmware development, testing, and troubleshooting.
- Breadboard-Friendly GPIO Access – All major GPIO pins are broken out to standard 2.54mm pitch headers, making it easy to interface with external hardware during prototyping and product development.
Specifications
- Microcontroller: STM8S003F3P6 (8-bit STM8 Core)
- CPU Frequency: Up to 16 MHz
- Flash Memory: 8 KB
- SRAM: 1 KB
- EEPROM: 128 Bytes
- Operating Voltage: 3.3V – 5V
- Input Power: 5V via USB or external header
- Communication Interfaces: UART, SPI, I²C
- Programming Interface: SWIM (Single Wire Interface Module)
- ADC: 10-bit ADC with multiple input channels
- GPIO: Multiple digital I/O pins available on headers
- Clock Source: Internal 16 MHz RC Oscillator
- Onboard Features: Power LED, Reset Button, Decoupling Circuitry
- PCB Type: FR-4, Breadboard-Friendly Layout
- Operating Temperature: -40°C to +85°C
Package Includes
- 1x STM8S003F3 Anchor STM8 Mini Development Board
