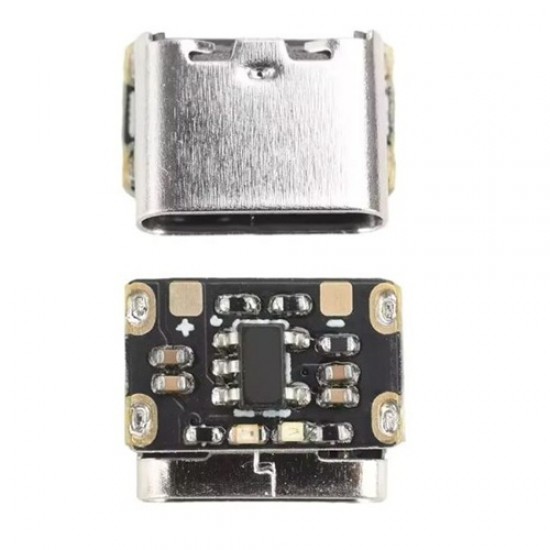

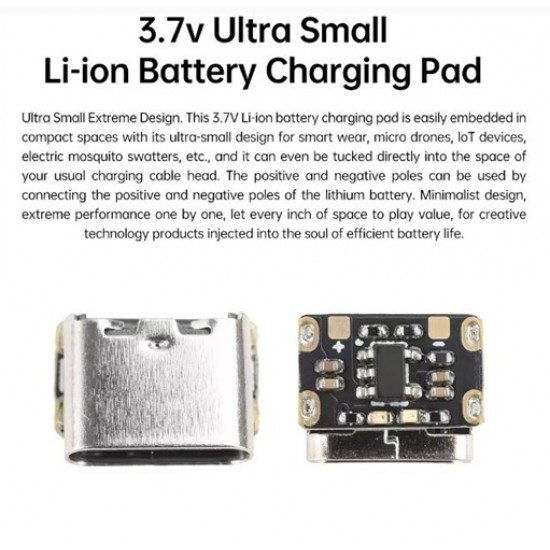

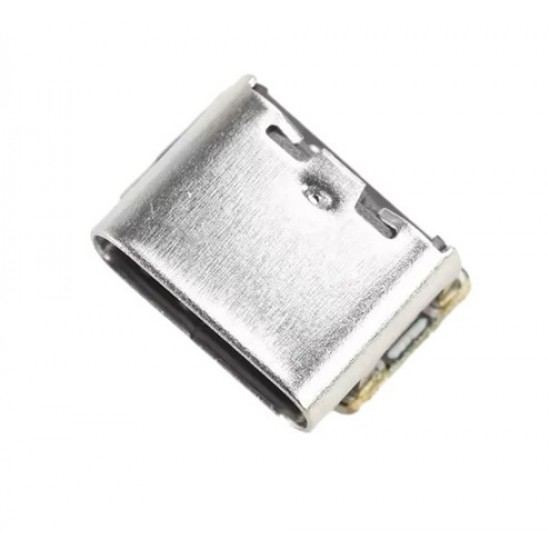

Super Mini 3.7V 4.2V Type-C USB Lithium Battery Charging Module with Protection
The Super Mini 3.7V/4.2V Type-C USB Lithium Battery Charging Module with Protection is a compact and reliable charging solution designed for single-cell 3.7V Lithium-Ion (Li-ion) and Lithium-Polymer (Li-Po) batteries. Based on the widely used TP4056 charging IC and integrated battery protection circuitry, this module provides safe and efficient charging through a modern USB Type-C interface. It features a constant current/constant voltage (CC/CV) charging algorithm, automatic charge termination, and built-in protection against overcharge, over-discharge, over-current, and short circuits, ensuring longer battery life and enhanced safety.
Its ultra-compact size makes it ideal for space-constrained electronics projects, including portable devices, DIY power banks, IoT products, wearable electronics, robotics, and rechargeable battery-powered applications. LED indicators provide clear charging status, allowing users to monitor the charging process easily. Simply connect a 5V USB Type-C power source and a compatible 3.7V lithium battery to begin charging safely.
Features
- Supports single-cell 3.7V Li-ion and Li-Po batteries
- USB Type-C input for convenient charging
- Fixed 4.2V charging voltage
- Constant Current/Constant Voltage (CC/CV) charging
- Built-in protection against:
- Overcharge
- Over-discharge
- Over-current
- Short circuit
- Automatic charge termination and recharge

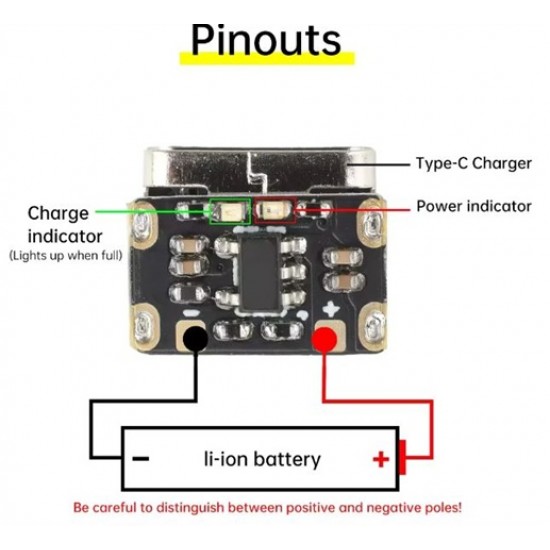

- LED charging and fully charged status indicators
- Compact, lightweight design
- Easy to integrate into portable electronic projects
Specifications
- Input Voltage: 5V DC via USB Type-C
- Charging IC: TP4056 or equivalent
- Battery Type: Single-cell 3.7V Lithium-Ion (Li-ion) / Lithium-Polymer (Li-Po)
- Full Charge Voltage: 4.2V ±1%
- Charging Method: Constant Current / Constant Voltage (CC/CV)
- Protection Functions:
- Overcharge Protection
- Over-discharge Protection
- Over-current Protection
- Short Circuit Protection
- Charging Status Indicator: Red LED (Charging), Blue/Green LED (Fully Charged) (may vary by module version)
- Input Interface: USB Type-C
- Operating Temperature: -10°C to +85°C
- Module Size: Super Mini Compact Design
- Applications: DIY Electronics, IoT, Wearables, Power Banks, Portable Devices, Robotics
Applications
- DIY rechargeable electronics
- Portable battery-powered devices
- IoT and wireless sensor nodes
- Power banks
- Wearable electronics
- Arduino, ESP32, and Raspberry Pi battery projects
- Robotics and embedded systems
Package Includes
- 1 × Super Mini 3.7V 4.2V Type-C USB Lithium Battery Charging Module with Protection
