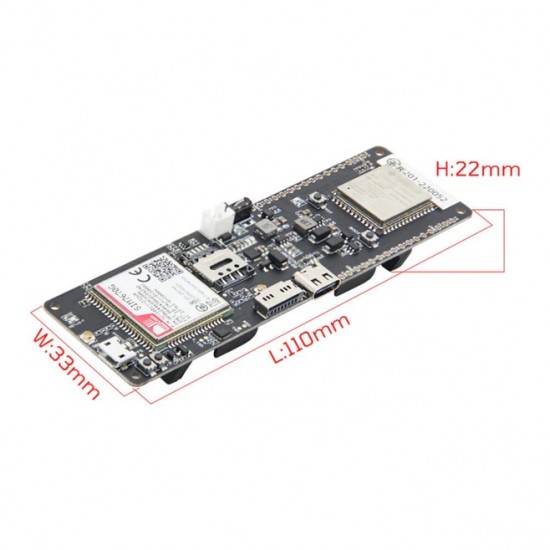

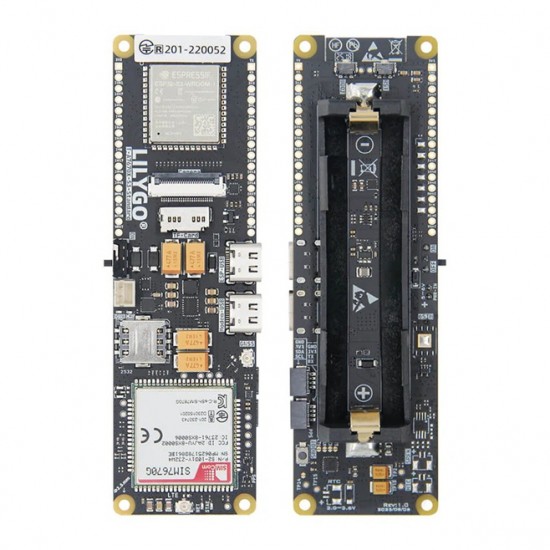

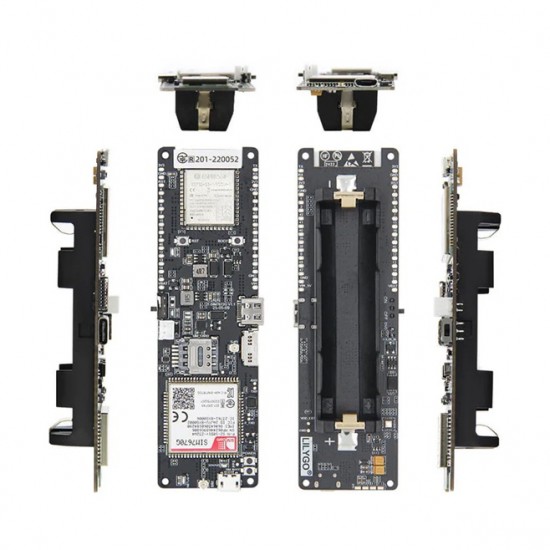

Name: LILYGO T-SIM7670G S3 ESP32-S3 4G LTE Cat-1 GNSS Development Board with WiFi, Bluetooth & SIM7670G Module (H802)
Brand: TTGO
SKU: 07930
Price: 6263.00 INR
Availability: OutOfStock

LILYGO T-SIM7670G S3 ESP32-S3 4G LTE Cat-1 GNSS Development Board with WiFi, Bluetooth & SIM7670G Module (H802)

TTGO

LILYGO T-SIM7670G S3 ESP32-S3 4G LTE Cat-1 GNSS Development Board with WiFi, Bluetooth & SIM7670G Module (H802)

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹6,263.00

₹5,307.63 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 53
B2B GST Credit Available

Price in reward points: 5307

Stock: 0 in Stock
SKU: 07930
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

LILYGO T-SIM7670G S3 ESP32-S3 4G LTE Cat-1 GNSS Development Board with WiFi, Bluetooth & SIM7670G Module (H802)

The LILYGO T-SIM7670G S3 (H802) is a powerful IoT development board that combines the high-performance ESP32-S3 microcontroller with the SIM7670G global 4G LTE Cat-1 modem and GNSS positioning capabilities. Designed for industrial IoT, GPS tracking, remote monitoring, smart agriculture, telematics, and mobile communication applications, the board offers seamless wireless connectivity through 4G LTE, WiFi, Bluetooth 5.0 LE, and satellite positioning in a compact, developer-friendly platform. It supports global LTE bands, making it suitable for deployment across multiple regions worldwide.

The board features an ESP32-S3 processor running at up to 240MHz with 16MB Flash and 8MB PSRAM, enabling advanced edge computing, AI applications, data logging, and cloud connectivity. The integrated SIM7670G modem supports LTE Cat-1 communication with download speeds up to 10Mbps and upload speeds up to 5Mbps, along with support for MQTT, HTTP/HTTPS, FTP, DNS, IPv4/IPv6, and other IoT protocols. Built-in GNSS support allows accurate location tracking using GPS and other satellite systems.

User Manual / Datasheet / Example Codes Etc.

Features

ESP32-S3 dual-core processor up to 240MHz
SIM7670G Global 4G LTE Cat-1 communication module
Integrated GNSS positioning support
WiFi 2.4GHz (802.11 b/g/n)
Bluetooth 5.0 Low Energy (BLE)
16MB Flash and 8MB PSRAM
Nano SIM card support
MicroSD (TF) card slot for data storage
Camera interface support (H802 version)
QWIIC connector for sensor expansion
eSIM pad support
USB Type-C programming and power interface
GNSS PPS output and routing to ESP32-S3
Low-power design for battery-operated applications
Supports MQTT, HTTP/HTTPS, FTP, TCP/IP, IPv4/IPv6
Compatible with Arduino IDE, ESP-IDF, PlatformIO, and MicroPython

Specifications

CPU Frequency: Up to 240MHz
Flash Memory: 16MB
PSRAM: 8MB
Cellular Module: SIM7670G
Cellular Network: 4G LTE Cat-1
LTE Speed: 10Mbps Downlink / 5Mbps Uplink
WiFi: 2.4GHz 802.11 b/g/n
Bluetooth: Bluetooth 5.0 LE
GNSS: GPS / GNSS Positioning
SIM Support: Nano SIM
Storage: MicroSD (TF) Card Slot
USB Interface: USB Type-C
Operating Voltage: 3.4V – 4.2V

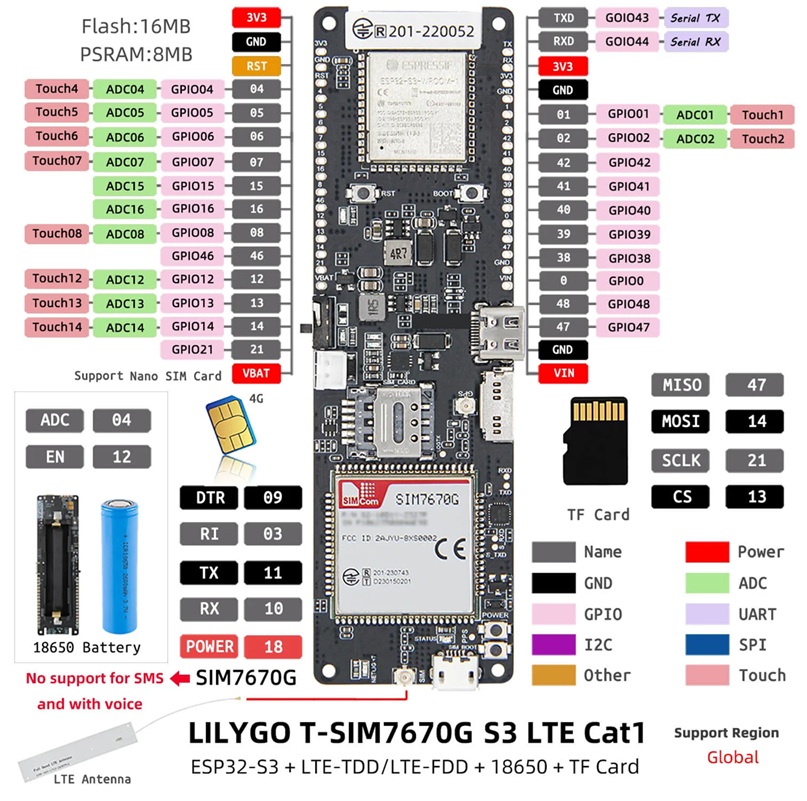

Peripheral Interfaces: UART, SPI, I2C, SDIO, I2S, CAN
Development Platforms: Arduino, ESP-IDF, PlatformIO, MicroPython

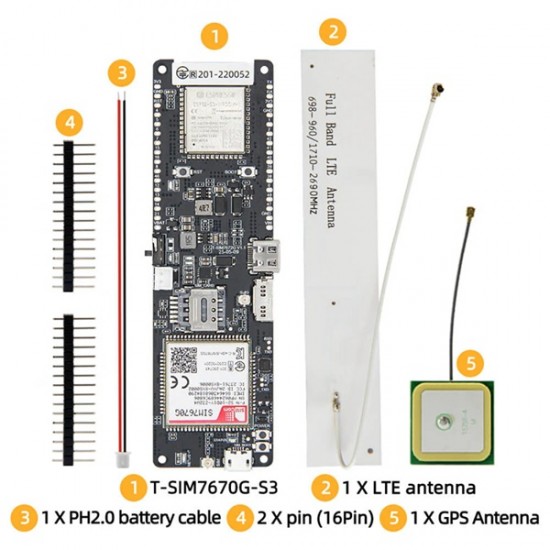

Package Includes

1 × LILYGO T-SIM7670G S3 ESP32-S3 Development Board (H802)
