LILYGO T3-S3 V1.3 ESP32-S3 LoRa SX1262 868Mhz Wireless Wi-Fi Bluetooth Development Board with 0.96inch OLED Display (H771)

The LILYGO T3-S3 V1.3 is a compact and powerful wireless development board designed for advanced IoT and LoRaWAN applications. Built around the ESP32-S3 microcontroller, it delivers high performance with integrated Wi-Fi and Bluetooth connectivity, making it ideal for smart devices, gateways, remote monitoring, and low-power sensor networks.

This board features the Semtech SX1262 LoRa transceiver operating at 868 MHz, providing long-range, low-power wireless communication with excellent sensitivity and reliability. The onboard 0.96-inch OLED display allows real-time visualization of data such as signal strength, sensor values, network status, and debugging information without the need for external displays.

Designed with developers in mind, the T3-S3 V1.3 includes rich GPIO options, USB-C interface for programming and power, and support for popular development environments like Arduino IDE and ESP-IDF. Its compact form factor and low power consumption make it suitable for battery-powered projects and rapid prototyping.

User Manual / Datasheet / Example Codes Etc

Specifications

MCU:ESP32S3FH4R2
Flash: 4MB
PSRAM: 2MB
Wireless protocol: Wi-Fi+ Bluetooth 5.0
Onboard functions: Reset + Boot Button, Support TF Card
0.96 inch SSD1306 Drive rI2C OLED:

Resolution: 128x64
I2C interface: DA--IO18; SCL--IO17

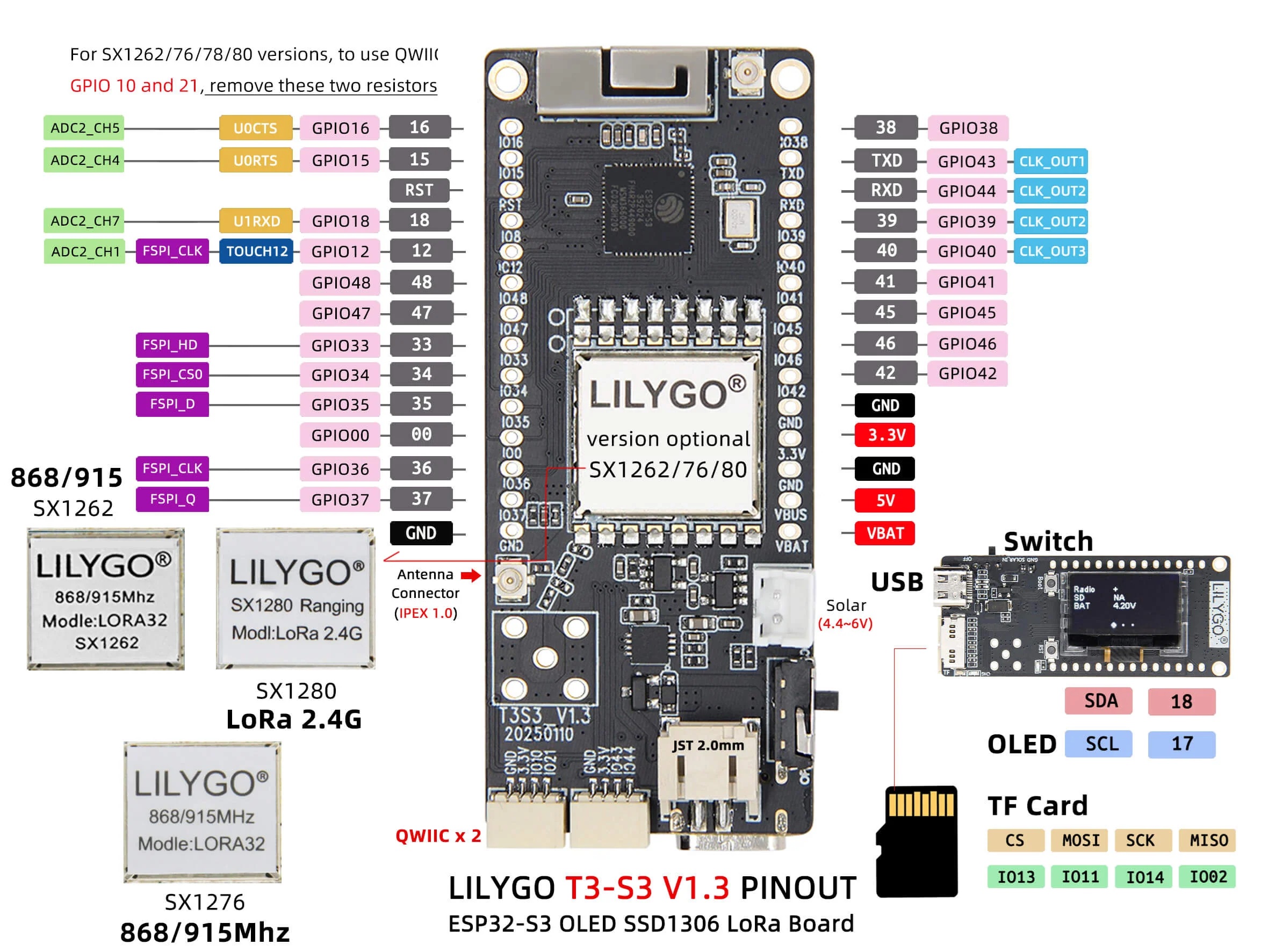

Pin Diagram

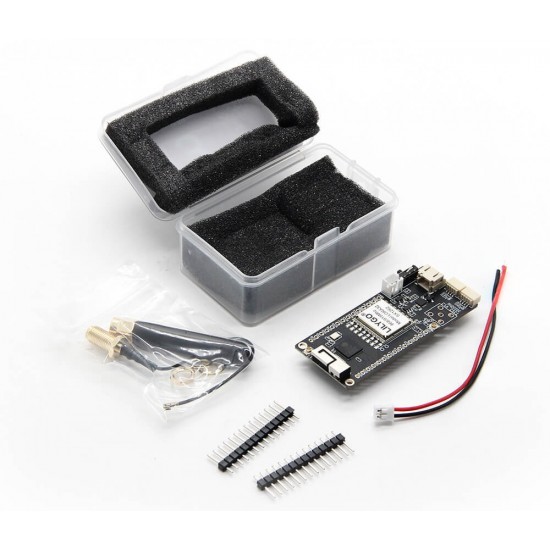

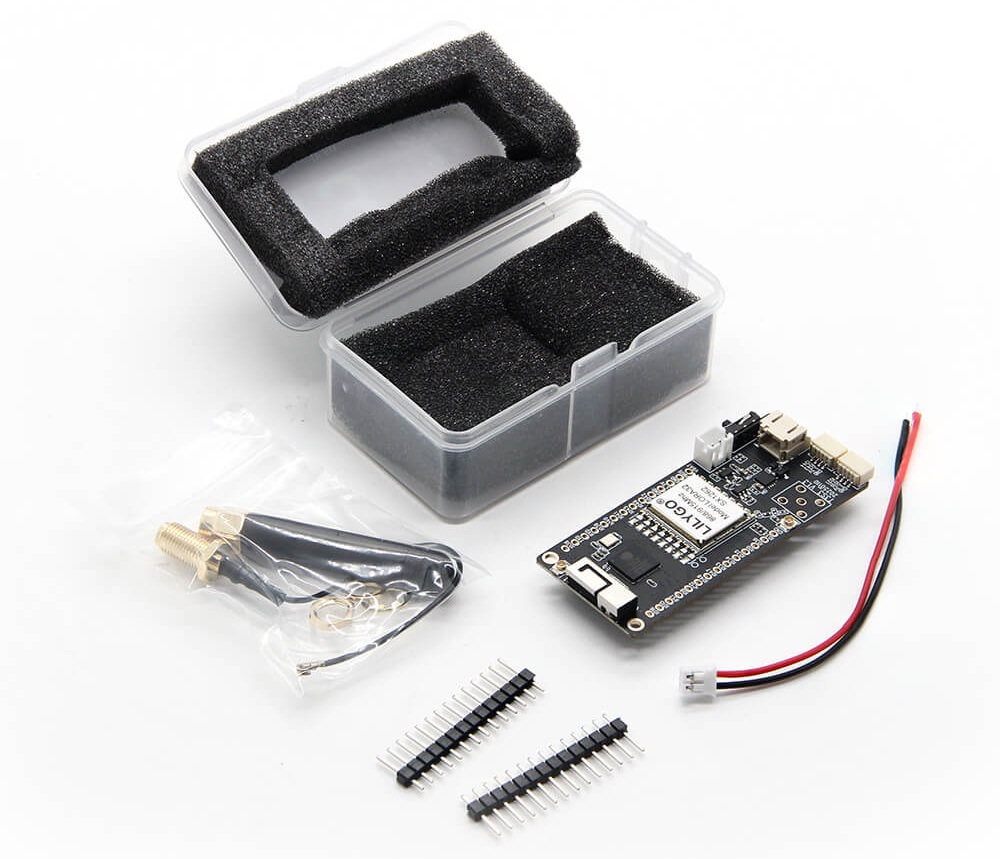

Package Includes
